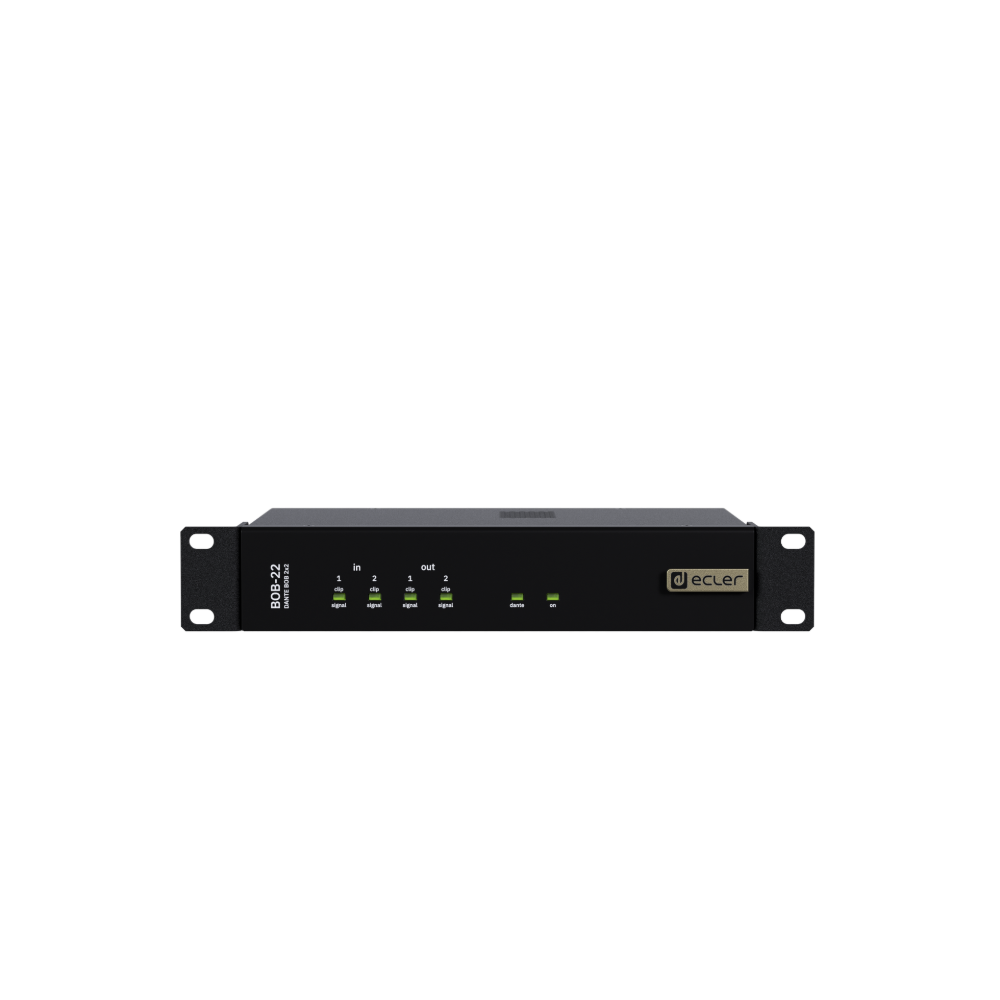

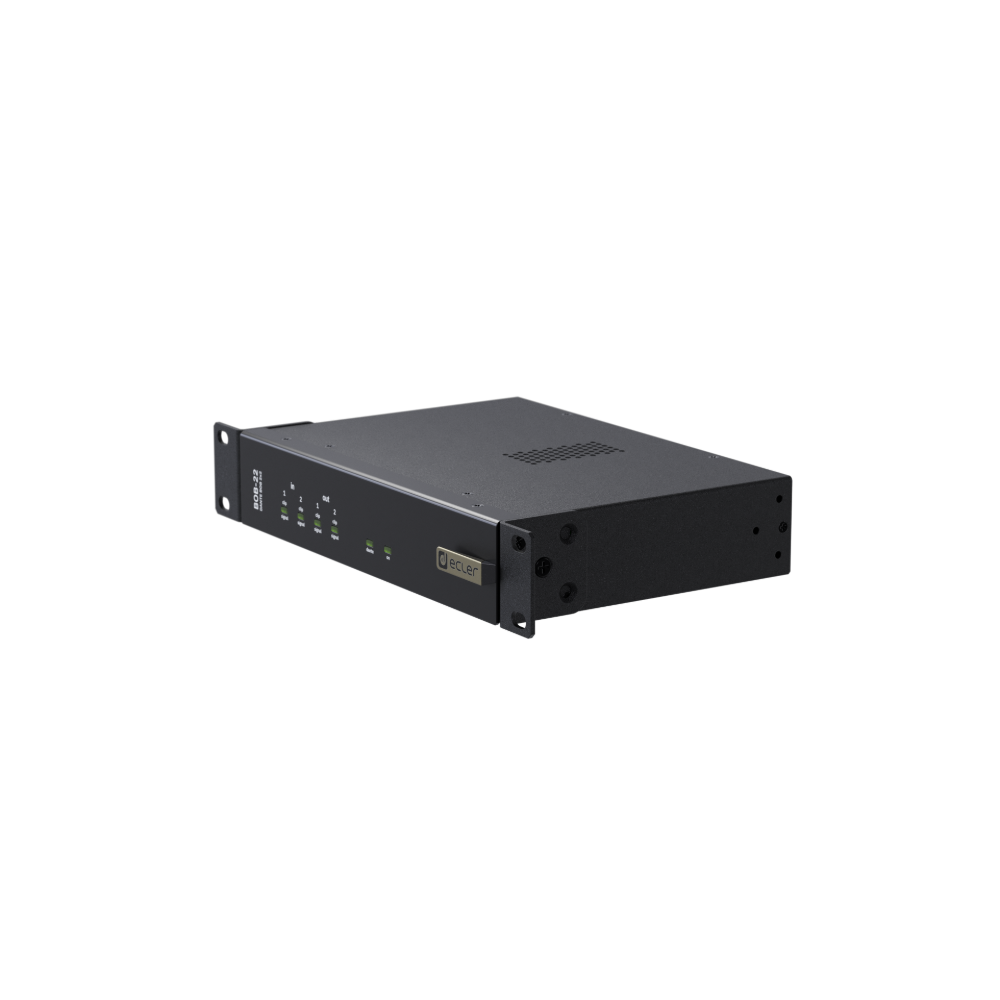

Ecler BOB-22 2x2 Dante Interface

Product code: 195239

£485.00 inc VAT
£404.17 ex VAT

SKU: ECL0082

1 in stock

1 available online
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The Ecler BOB-22 is a compact Dante/AES67 interface with 2 analogue mic/line inputs and 2 analogue line outputs. It sends two microphones or line sources onto the network and brings two network channels back out to analogue, powered by PoE. It is used for adding local inputs and outputs to Dante systems in conference rooms, hotels, places of worship, schools and venues.

2 x 2
Analogue I/O
48V
Phantom (jumper)
PoE
Powered
Half 1U
Rack width
Dante deviceA generic Dante/AES67 device configured with Dante Controller. It works with Ecler and third-party Dante equipment but is not a native EclerNet or EclerPLEX unit. Power is by PoE or an optional 24V DC supply (sold separately).

Features

2 balanced mic/line inputs, sensitivity adjustable from -50 to 0 dBV
+48V phantom power set by internal jumper
2 balanced line outputs
2 x 2 Dante/AES67 channels
PoE (802.3af class 0) powered; half-rack front bracket included

Specifications

Ecler BOB-22 2×2 Dante Interface specifications
Inputs 2 mic/line, 3-pin Euroblock, balanced; -50 to 0 dBV; >4 kohm
Outputs 2 line, 3-pin Euroblock, balanced; 316 ohm
Maximum level +18 dBV (+20 dBu) in and out
Converters 24-bit, 48 kHz; dynamic range ADC 110 dB, DAC 115 dB
Latency 1.37 ms total (ADC 0.81 ms, DAC 0.56 ms)
Phantom power +48V DC, internal jumper
Network 1x RJ-45, Dante/AES67, 2/2 flows
Power PoE 802.3af class 0, or 24V DC external supply (sold separately); 8W
Dimensions (W x H x D) 266.1 x 44 x 156.2 mm
Weight 1.1 kg

Full features

  • Ethernet interface.

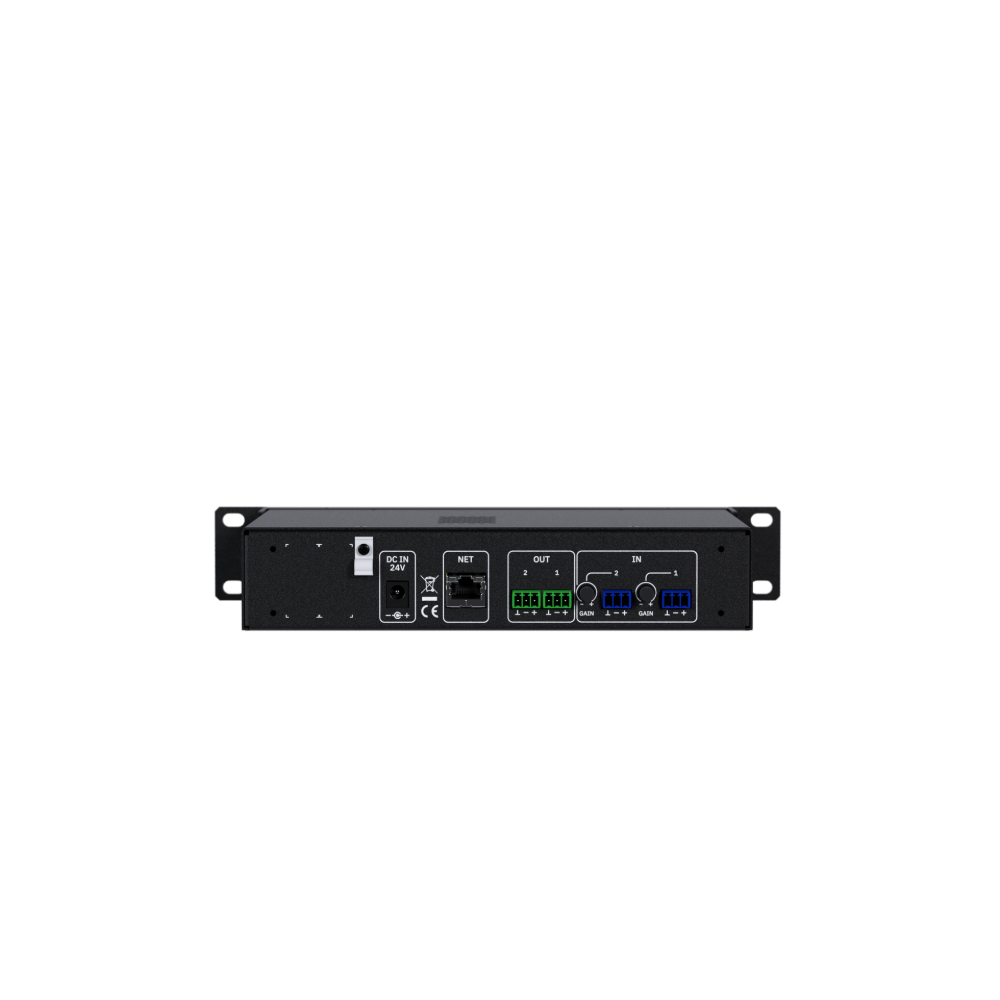

  • Euroblock connectors for analogue audio inputs and outputs.
  • 2 Analogue MIC/LINE audio inputs reception.
  • 2 Analogue LINE level audio outputs.
  • 2x2 Digital audio -transmission and reception -channels in Dante/AES67 format.
  • PoE power supply ready.
  • Phantom power (+48VDC by internal jumper activation).
  • Input sensitivity (adjustable from -50dBV to +0dBV).
  • Compact format.
  • Frontal support Half rack accessory included.

Audio Converters

  • Sampling rate: 48kHz
  • Resolution: 24 bit
  • Latency: ADC 0.81 ms    DAC 0.56 ms    Total 1.37 ms
  • Frequency response: 0 - 20kHz
  • Dynamic range: ADC:110dB, DAC:115dB

Analogue Audio Input Ports

  • Number of input ports: 2, MIC/LINE level
  • Connection type: Euroblock, 3-pin, balanced
  • Input sensitivity: -50dBV to +0dBV
  • Input impedance: > 4 kΩ
  • Max input level: +18dBV = +20dBu
  • THD + Noise: THD+Noise @ 1kHz, 0dBV input (line) <0.005%
    THD+Noise @ 1kHz, -40dBV input (mic.) <0.40%
  • CMRR: 56dB typ.
  • Phantom power: +48VDC, Internal jumper activation

Analogue Audio Output Ports

  • Number of output ports: 2, LINE level
  • Connection type: Euroblock, 3-pin, balanced
  • Max output level: +18dBV = +20dBu
  • Output impedance: 316 ohms
  • Crosstalk: better than 95dB

Audio Over Ip

  • Protocols: Dante® / AES67 (2/2 flows)
  • Number of digital input ports: 2
  • Number of digital output ports: 2
  • Interfaces: 1 x RJ-45

Connectivity

  • Ethernet: 1, RJ-45 connector
    10 /100Mb, 1GB Auto X-Over
  • Programing and control: Dante® Controller

Electrical

  • Power supply: 24VDC External PSU (sold separately)
  • Secondary power supply: PoE: class 0 802.3af Poe PD compliant
  • AC mains requirement: 90-265VAC @ 50-60Hz (External PSU: 24VDC)
  • Power consumption: 14 VA / 8W
  • Ventilation: Passive

Physical

  • Operating temperature: Min: -10°C ; 14°F
    Max: 40°C ; 104°F
  • Operating humidity: <85% HR
  • Storage temperature: Min: -10°C ; 14°F
    Max: 40°C ; 104°F
  • Storage humidity: <90% HR
  • Installation options: Desktop, 19" racks (1RU)
  • Included accessories: 4x Euroblock 3-pin connectors, 4x Rubber feet, 1x Frontal Support Half-Rack accessory, 4x Washer
  • Dimensions: 266.1 x 44 x 156.2mm / 10.48 x 1.73 x 6.15 in.  (WxHxD)
  • Weight: 1.1 Kg / 2.43 lb.
  • Shipping dimensions: 430 x 52 x 261mm / 16.93 x 2.05 x 10.28 in. (WxHxD)
  • Shipping weight: 1.7 Kg / 3.75 lb.
