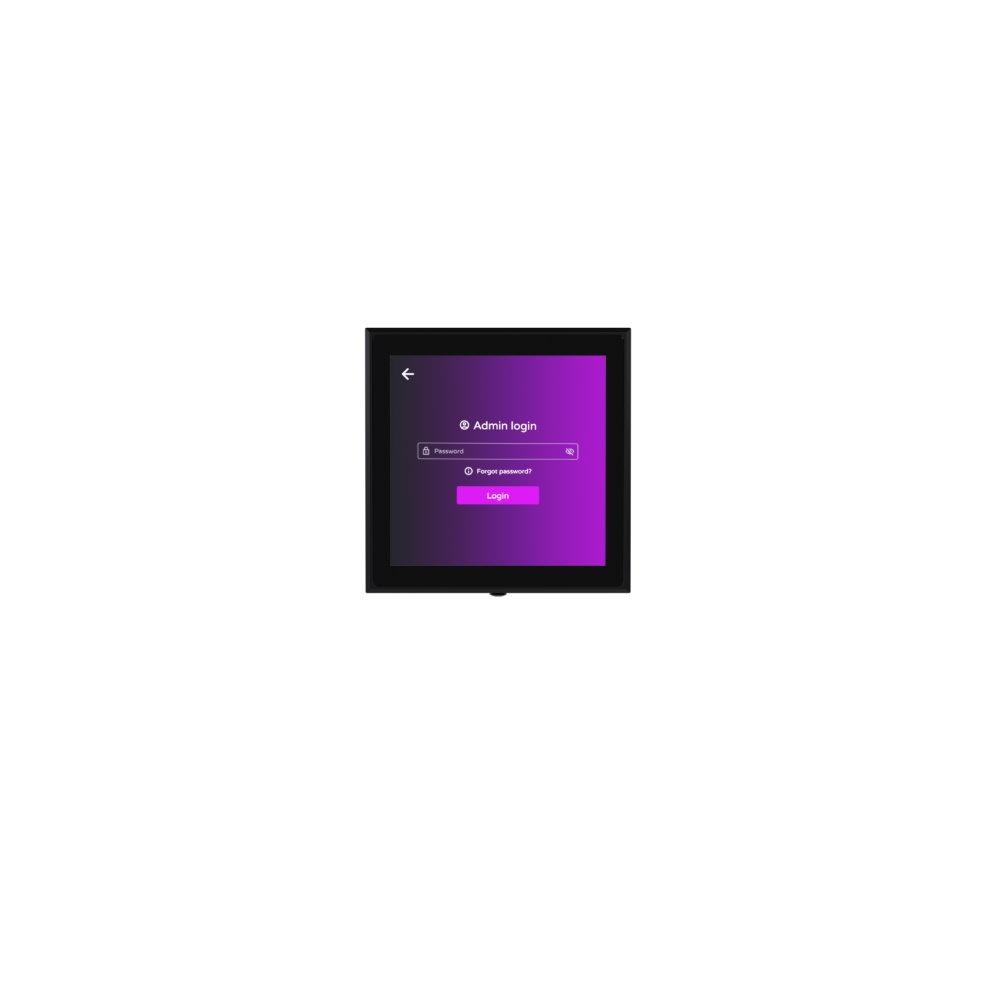

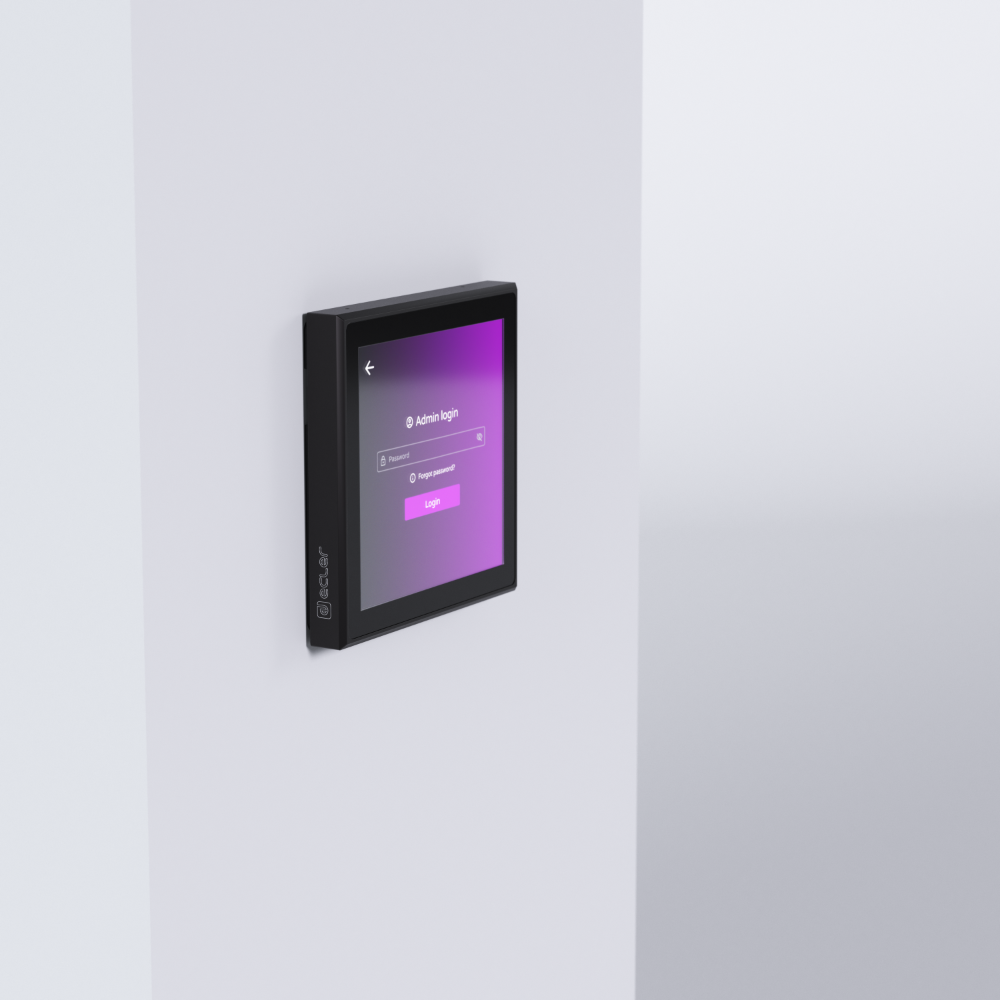

The Ecler PULSO-10 is a 10 inch touchscreen wall panel for controlling Ecler audio systems, including VIDA amplifiers and HUB zone mixers. It mounts on a standard EU flush box, runs on PoE and gives room for larger custom user panels covering several zones. Typical uses are bar and restaurant management points, hotel reception, conference venues and control rooms.
10″
IPS touchscreen
1280 x 800
Pixels
PoE
Powered
9W
Max consumption
Compatibility and powerEcler lists PULSO as compatible with VIDA, HALO, HUB (via the Ecler Pilot app), EclerNet Manager UCP panels and EclerPLEX. Power by PoE (802.3af) or a 12V DC 2A supply, which is not included.
Features
10″ IPS touchscreen, 1280 x 800 pixels, 10-point capacitive
User panels customised to the installation
Web interface for setup and maintenance
PoE powered (802.3af class 0), or 12V DC external supply

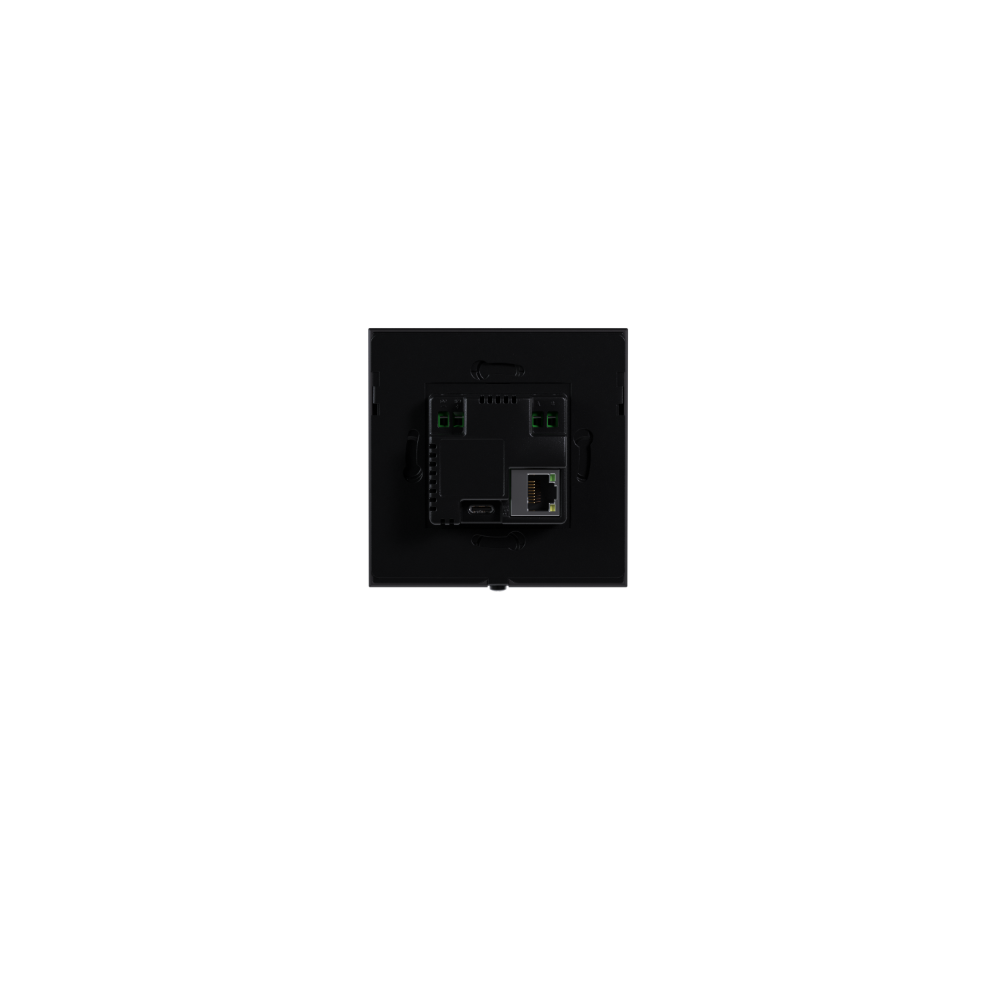

RS-232 on Euroblock and Ethernet RJ-45

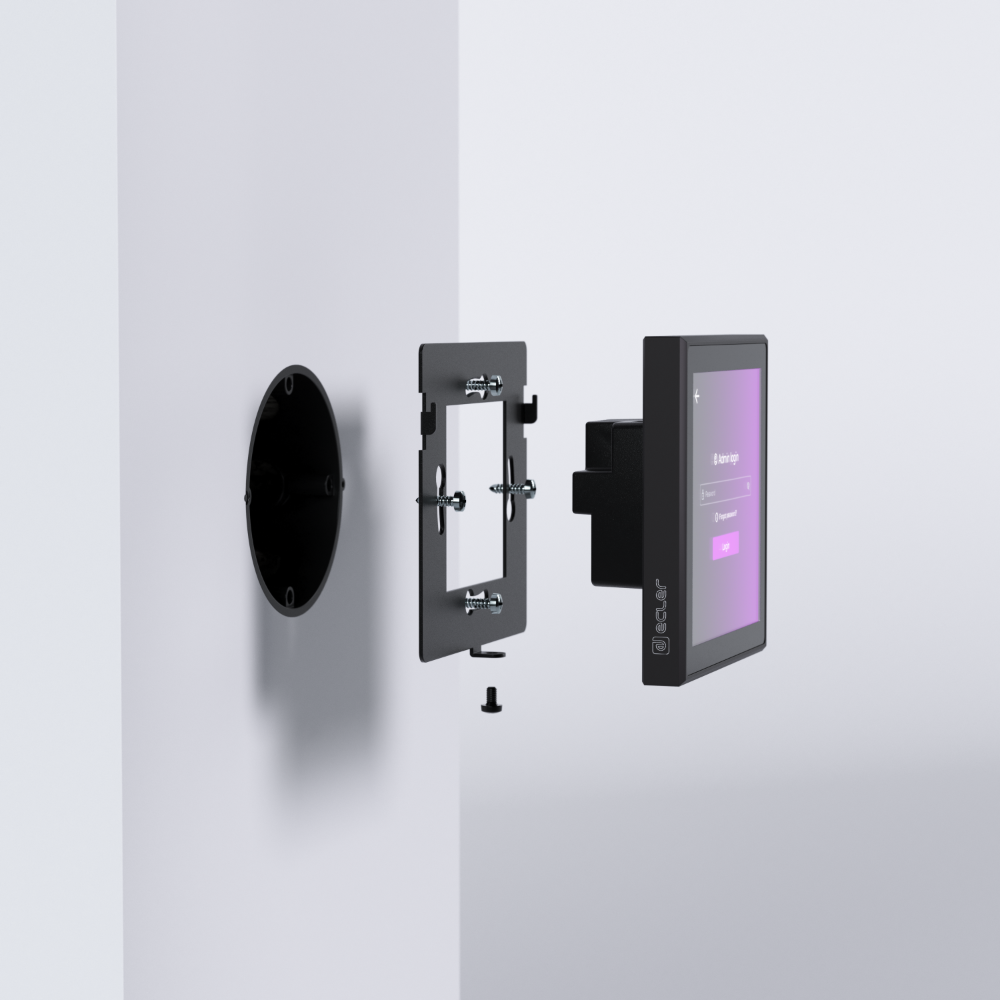

Fits a standard EU round flush box
Specifications
| Display | 10″ IPS, 1280 x 800, LED backlight, 500 cd/m² |
| Touch | 10-point capacitive |
| Processor | Quad-core ARM, up to 1.8 GHz |
| Connectivity | RJ-45 Ethernet (Cat-5e), RS-232 Euroblock |
| Power | PoE 802.3af class 0, or 12V DC 2A (not included); 9W max |
| Mounting | In-wall, EU round flush box |
| Operating temperature | -10 to 60°C |
| Dimensions (W x H x D) | 259 x 177 x 37 mm |
| Weight | 0.68 kg |
| Included | Security screws |
