The Ecler PULSO-6 is a portrait touchscreen wall panel with a 5.5 inch IPS display for controlling Ecler audio systems, including VIDA amplifiers and HUB zone mixers. It fits a standard EU flush box, runs on PoE and shows custom user panels for volume, source and preset control. It suits bars, restaurants, hotels, meeting rooms and retail where more controls are needed than on the 4 inch model.
5.5″
IPS touchscreen
720 x 1280
Pixels, portrait
PoE
Powered
7W
Max consumption
Compatibility and powerEcler lists PULSO as compatible with VIDA, HALO, HUB (via the Ecler Pilot app), EclerNet Manager UCP panels and EclerPLEX. Power by PoE (802.3af) or a 12V DC 2A supply, which is not included.
Screen sizeDespite the model name, the display is 5.5 inches diagonal.
Features
5.5″ IPS touchscreen, 720 x 1280 pixels, 5-point capacitive
User panels customised to the installation
Web interface for setup and maintenance
PoE powered (802.3af class 0), or 12V DC external supply
RS-232 on Euroblock and Ethernet RJ-45

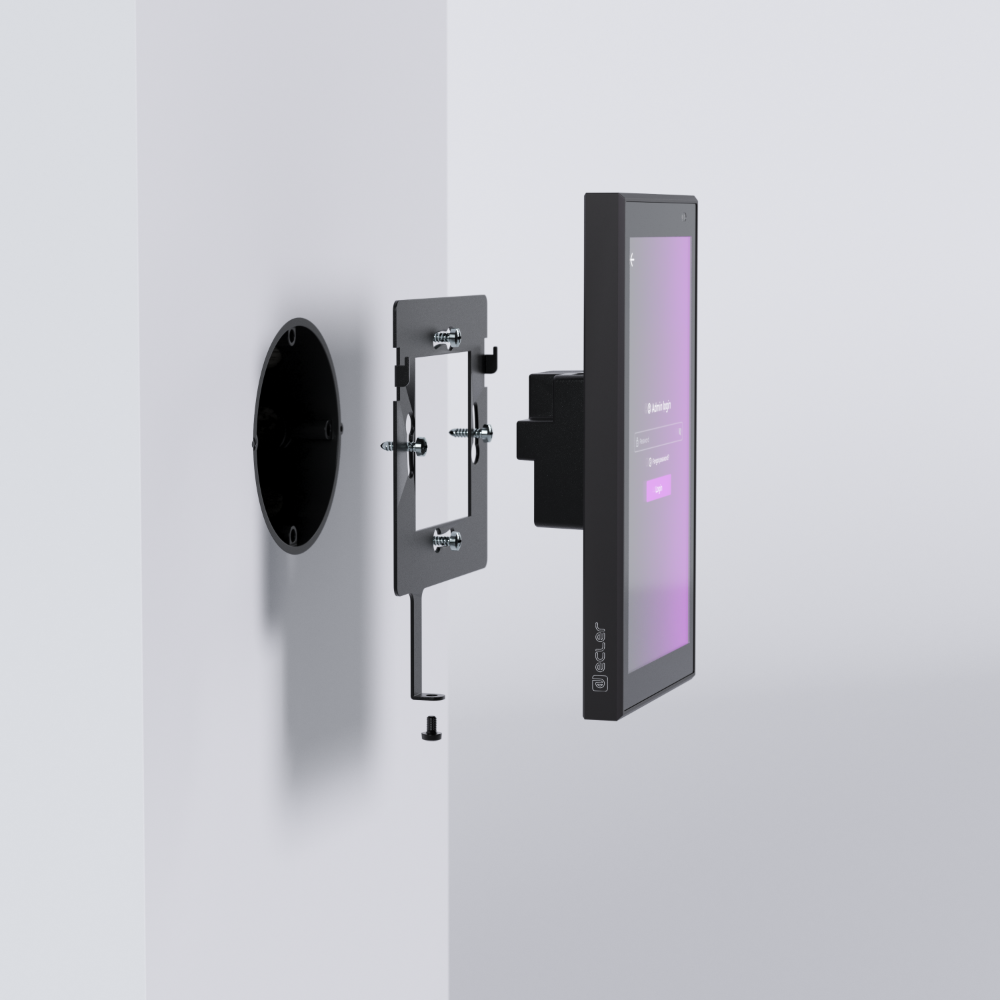

Fits a standard EU round flush box
Specifications
| Display | 5.5″ IPS, 720 x 1280, LED backlight, 400 cd/m² |
| Touch | 5-point capacitive |
| Processor | Quad-core ARM, up to 1.8 GHz |
| Connectivity | RJ-45 Ethernet (Cat-5e), RS-232 Euroblock |
| Power | PoE 802.3af class 0, or 12V DC 2A (not included); 7W max |
| Mounting | In-wall, EU round flush box |
| Operating temperature | -10 to 60°C |
| Dimensions (W x H x D) | 82.5 x 146 x 37 mm |
| Weight | 0.19 kg |
| Included | Security screw |
