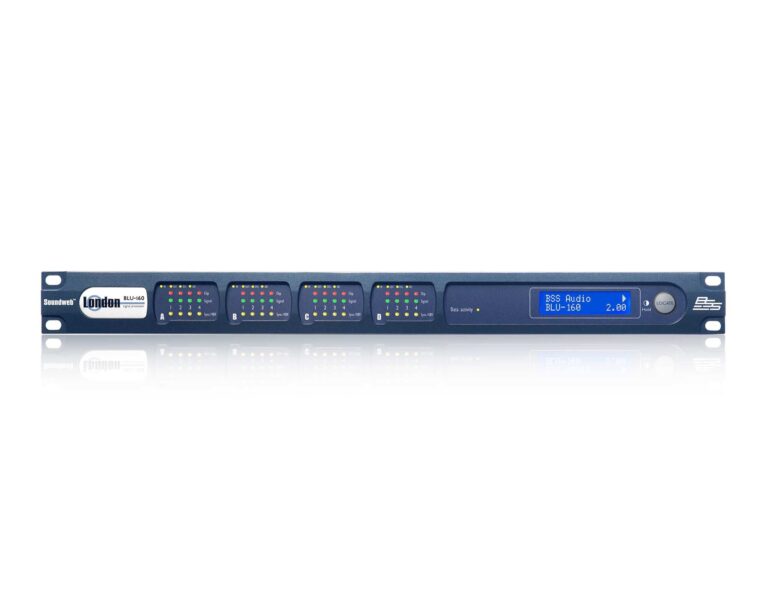

BSS BLU160 Soundweb London Signal Processor - Chassis Only, 4 Card Slots, 1U
BSS BLU160 Soundweb London Signal Processor - Chassis Only, 4 Card Slots, 1U £3,801.00 inc VAT
£3,167.50 ex VAT
Back to products

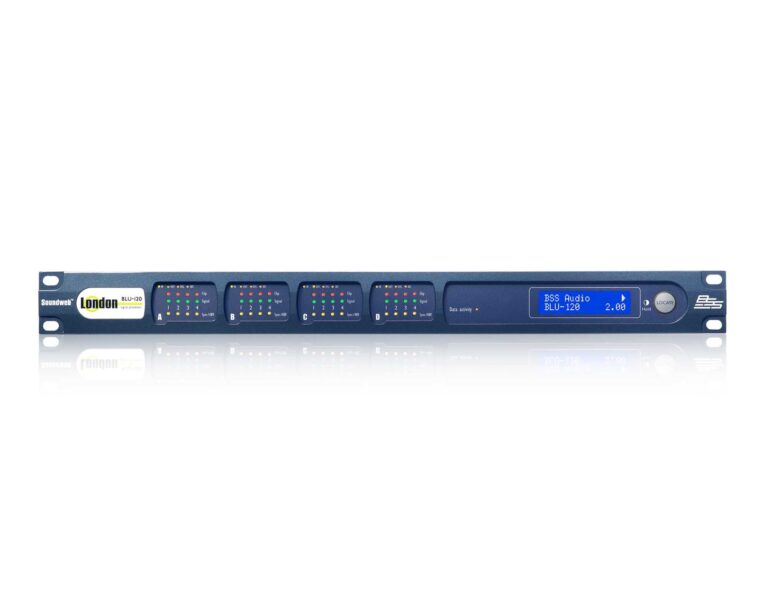

BSS BLU120 Soundweb London Signal Processor - Chassis Only, 4 Card Slots, 1U
BSS BLU120 Soundweb London Signal Processor - Chassis Only, 4 Card Slots, 1U £2,740.00 inc VAT
£2,283.33 ex VAT
BSS

BSS BLU806 Soundweb London Signal Processor - Dante / AES67, Chassis Only, 1U

SKU: BSSBLU806M-EK
BSS BLU806 Soundweb London Signal Processor - Dante / AES67, Chassis Only, 1U

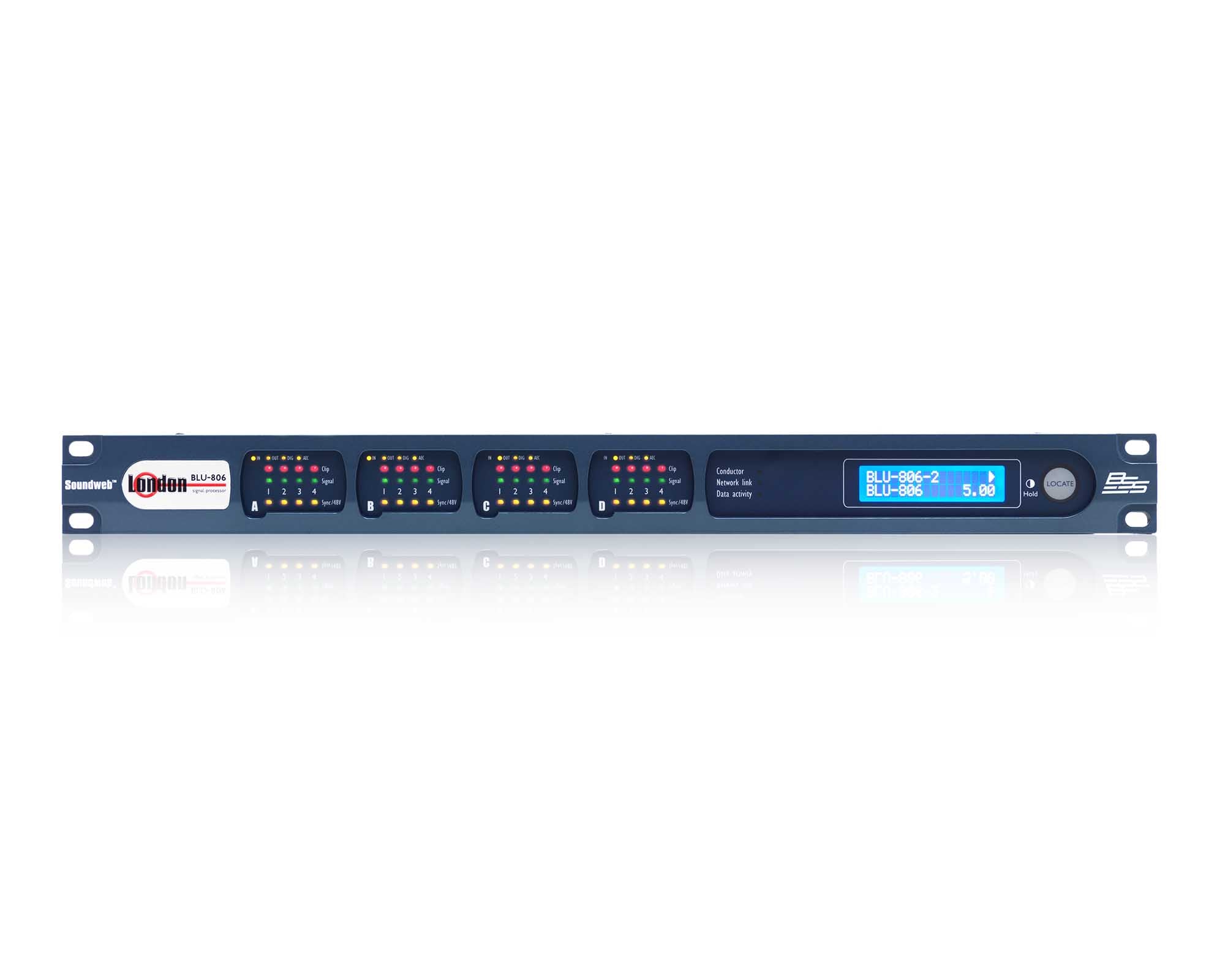

BSS BLU806 Soundweb London Signal Processor - Dante / AES67, Chassis Only, 1U
Click to enlarge

    £3,022.00 inc VAT
    £2,518.33 ex VAT

    2 available
    More available from supplier in 1–3 weeks
    Order in 3h 48m 57s for FREE delivery by WednesdayClick & Collect available Tue 1st Sep from us in London ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The BSS BLU806 is a modular Soundweb London signal processor supplied as a chassis only, combining Dante / AES67 networked audio with a 256-channel fault-tolerant digital audio bus and four configurable I/O card slots. It is the BLU800 chassis extended with Dante ports, giving AV integrators a flexible processing hub that bridges the Soundweb London bus and a Dante network in a single 1U frame.

    Dante / AES67
    Networked Audio · Primary + secondary
    4 slots
    Card Slots · 4 channels per card
    256 channels
    Digital Audio Bus · Low latency
    Chassis only
    Configuration · 1U, cards separate

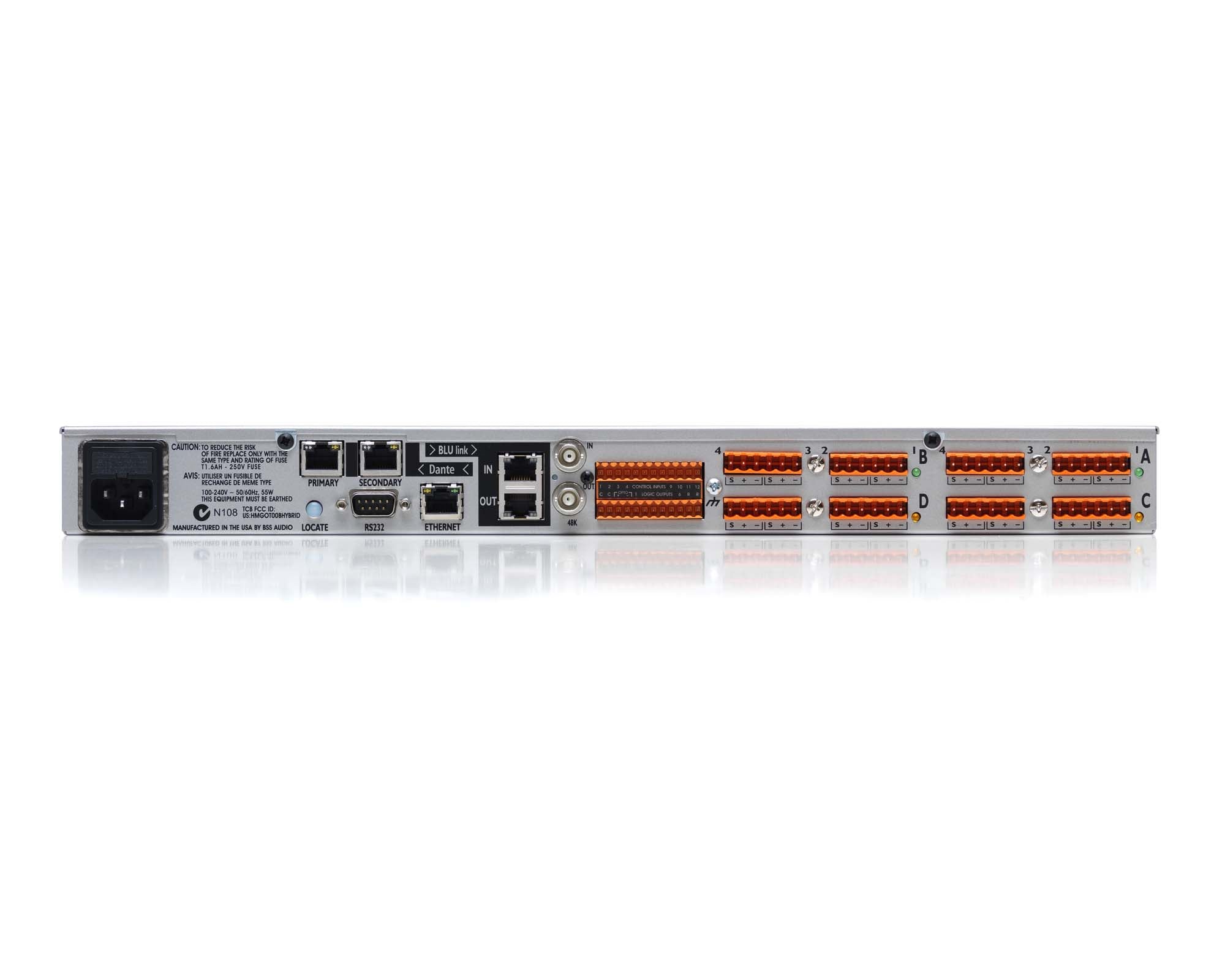

    Dante NetworkingDante / AES67 audio is provided on primary and secondary ports for fault tolerance, with control on a separate Ethernet port. The processor supports Dante 4.0 firmware for integration with Dante Domain Manager, alongside the standard 256-channel Soundweb London digital audio bus.
    Features
    Dante / AES67 audio on redundant primary and secondary ports
    Dante 4.0 firmware support for Dante Domain Manager
    Separate Ethernet port for device control
    Four card slots for configurable I/O, four channels per card
    Six card types: Analogue In/Out, Digital In/Out, AEC In, Telephone Hybrid
    256-channel low-latency, fault-tolerant digital audio bus
    Digital cards handle AES/EBU and/or S/PDIF audio
    Open architecture, configured in HiQnet London Architect
    12 control inputs and 6 logic outputs for GPIO integration
    Front-panel display of device name, type, firmware, IP and subnet
    NoteThe BLU806 is the BLU800 chassis with added Dante ports, supplied as chassis only – I/O cards are not included and must be ordered separately.
    Specifications
    Supplied as Chassis only (cards not included)
    Networked audio Dante / AES67, primary and secondary ports, Dante 4.0 firmware
    Control Separate Ethernet port
    Card slots 4, four channels per card
    Available card types Analogue In, Analogue Out, Digital In, Digital Out, AEC In, Telephone Hybrid
    Digital audio bus 256 channels, low latency, fault tolerant
    Cabling / distance Cat5e, 100m device-to-device; over 40km via fibre media converters
    GPIO 12 control inputs, 6 logic outputs
    Rack size 1U

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • Four Input / Output Card Slots
    • Configurable Inputs / Outputs
    • Analog Inputs (with Phantom Power per Channel)
    • Analog Outputs
    • Digital Inputs (AES/EBU and S/PDIF)
    • Digital Outputs (AES/EBU and S/PDIF)
    • AEC Inputs (with Phantom Power per Channel)
    • Telephone Hybrid Card
    • Configurable Signal Processing
    • Rich Palette of Processing and Logic Objects
    • AES67 and Dante Audio with support for Dante Domain Manager
    • 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus
    • Clear Front Panel LED Indication
    • Informative Front Panel Display
    • Bi-Directional Locate Functionality
    • 12 Control Inputs and 6 Logic Outputs for GPIO Integration
    • Soundweb London Interface Kit for Third Party Control System Integration (Documentation)
    • HiQnet Device
    • Configuration, Control and Monitoring from HiQnet London Architect
    • AES67 Compatible
    • EN 54-16 Compliant for life safety applications

    Similar Products

    Linea Research ASC48 System Processor

    Linea Research ASC48 System Processor

    £1,591.00 inc VAT
    £1,325.83 ex VAT

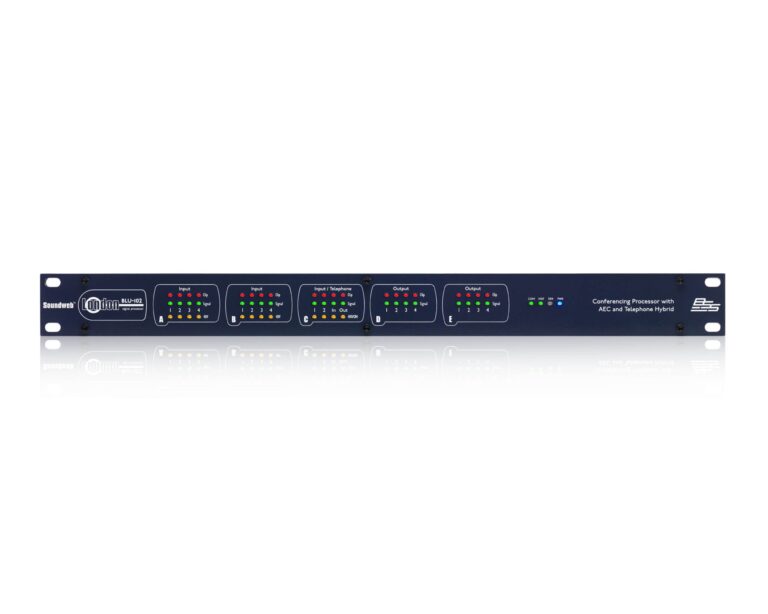

    BSS BLU102 Soundweb London Signal Processor - 10-In / 8-Out, Telephone Hybrid, 1U
