Biamp TesiraFORTE DAN AI Dante Fixed I/O DSP 12in / 8out

SKU: 920-00448-00003
Biamp TesiraFORTE DAN AI Dante Fixed I/O DSP 12in / 8out
Biamp TesiraFORTE DAN AI Dante Fixed I/O DSP 12in / 8out
Click to enlarge

    £3,341.00 inc VAT
    £2,784.17 ex VAT

    Ordered from supplier, allow 1–3 weeks
    FREE delivery by Fri 30th OctOrder by 3pm
    Click & Collect Thu 29th Oct ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

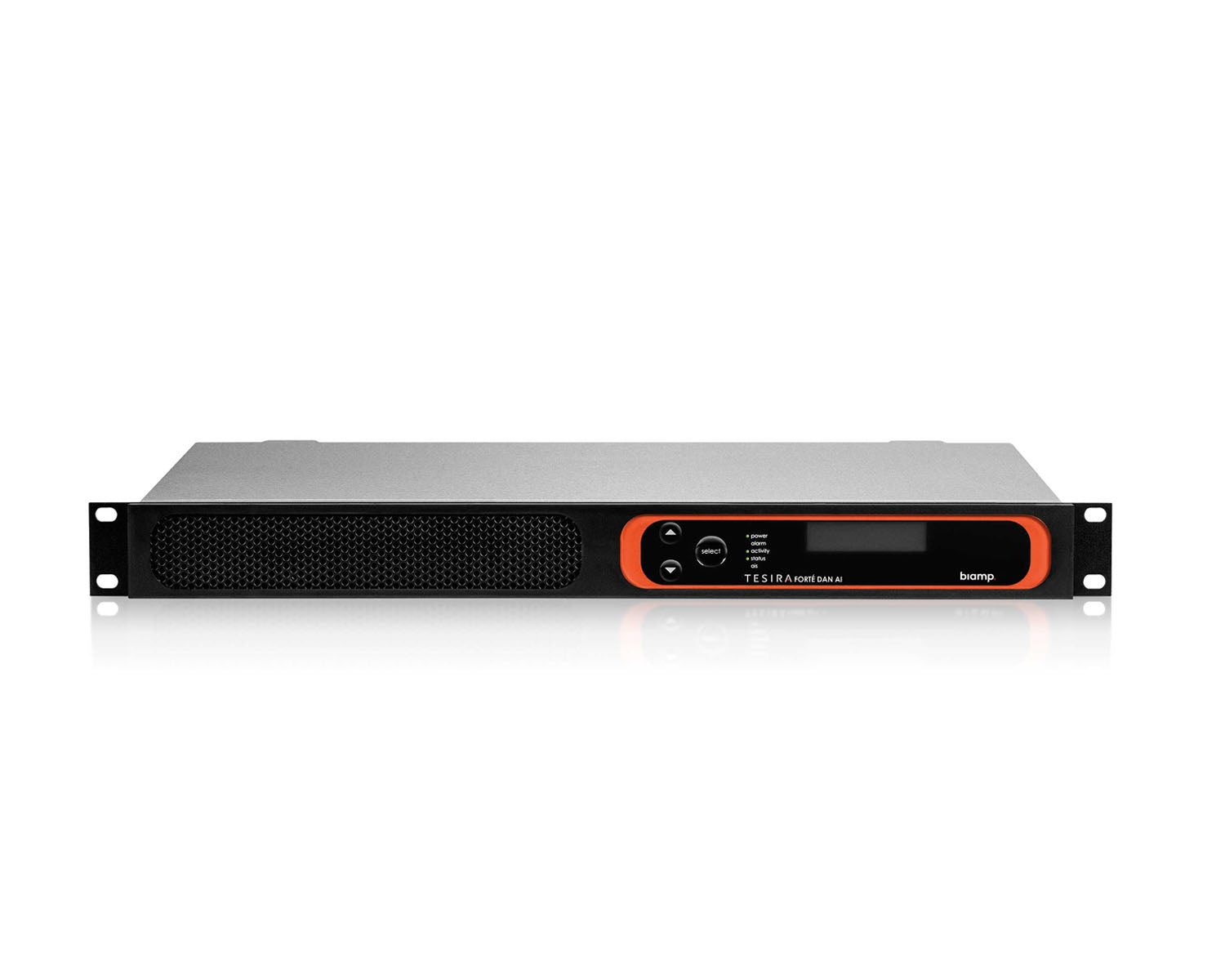

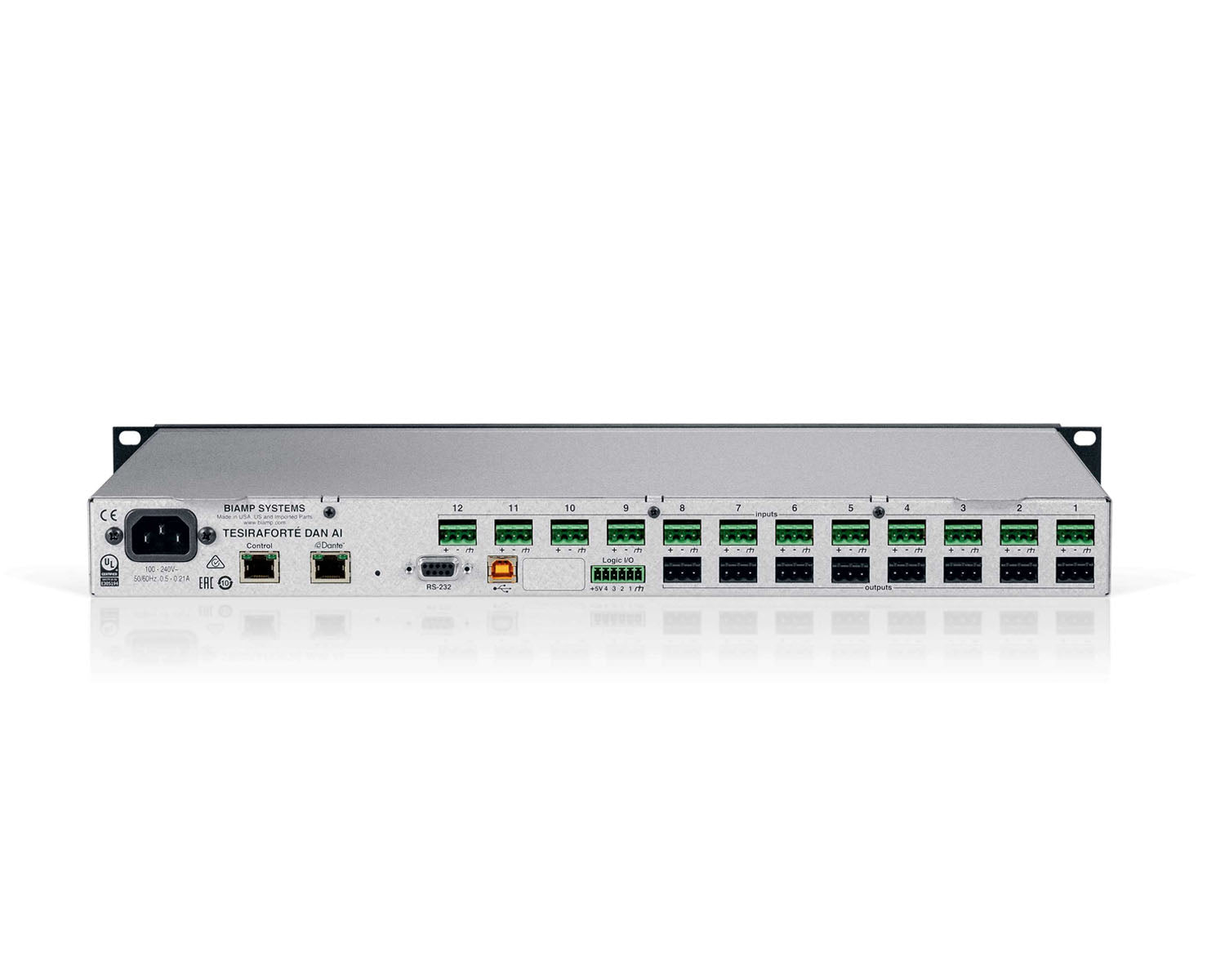

    The Biamp TesiraFORTE DAN AI (SKU 920-00448-00003) is a Dante-networked fixed I/O DSP with 12 mic/line inputs and 8 mic/line outputs in a 1U chassis. It is an AES67-enabled Dante endpoint carrying 32 x 32 channels over Gigabit Ethernet, with RS-232 and GPIO control configured through Tesira software.

    Key Features
    32 x 32 channels of Dante
    AES67-enabled Dante endpoint
    12 mic/line inputs, 8 mic/line outputs
    Gigabit Ethernet port
    RS-232 serial port and 4-pin GPIO
    2-line OLED display with capacitive-touch navigation
    Internal universal power supply
    Configured and controlled via Tesira software
    Rack mountable, 1U
    Covered by Biamp 5-year warranty
    Specifications
    Network audio 32 x 32 channels Dante, AES67
    Inputs 12 mic/line
    Outputs 8 mic/line
    Control ports Gigabit Ethernet, RS-232, 4-pin GPIO
    Frequency response 20 Hz – 20 kHz, +0.25 / -0.5 dB
    THD+N (0 dB gain) < 0.006%
    EIN < -125 dBu
    Dynamic range > 108 dB
    Input impedance (balanced) 8 kohm
    Output impedance (balanced) 207 ohm
    Maximum input +24 dBu
    Input gain range 0-66 dB (6 dB steps)
    Phantom power +48 VDC (7 mA/input)
    Sampling rate 48 kHz
    Converters 24-bit
    Power supply 100-240 VAC 50/60 Hz, < 35W
    Rack height 1U
    Dimensions (W x H x D) 483 x 44 x 267 mm
    Weight 3.63 kg
