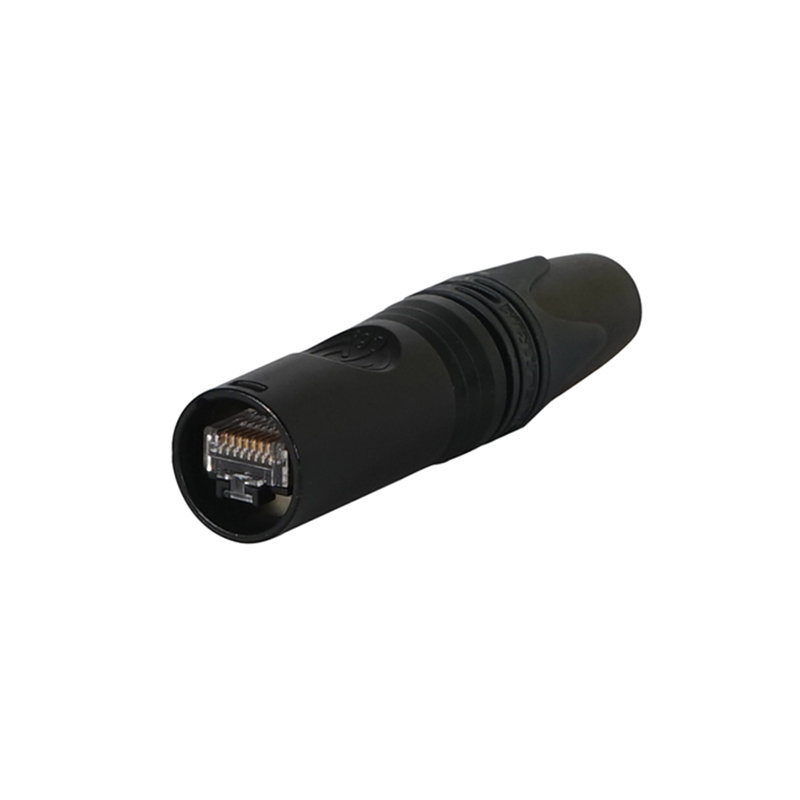

The Neutrik etherCON NE8MX6B is the black-finish version of the CAT6A-rated etherCON self-termination cable connector, supplied with its own CAT6A RJ45 plug that you terminate onto cable of 7 to 9.5 mm diameter (wire insulation over 1.1 mm). The RJ45 sits inside a metal shell with the etherCON push-pull lock, giving reliable Ethernet and audio-over-IP links on stage, in racks and on tour – with a black housing to blend into dark stage plates and looms.
How it worksThis is a self-termination cable connector: a CAT6A RJ45 plug is included and you terminate it onto your own cable (AWG 24 to 22, solid or stranded). It is not a carrier for pre-made patch leads. It mates with etherCON panel connectors (NE8FDX / NE8FDP series) and also plugs into a standard RJ45 socket.
Features
etherCON CAT6A self-termination cable connector, black
CAT6A-rated for high-bandwidth links
Metal housing protects the RJ45 plug
Push-pull locking to etherCON panel connectors
Also mates with standard RJ45 sockets
Suited to Dante, AVB and other audio-over-IP links
CAT6A RJ45 plug included, for 7 to 9.5 mm cable
Genuine Neutrik etherCON component
Specifications
| Manufacturer | Neutrik |
| Model | NE8MX6-B |
| Series | etherCON CAT6A |
| Type | Self-termination cable connector |
| Interface | RJ45 (8P8C) |
| Finish | Black |
