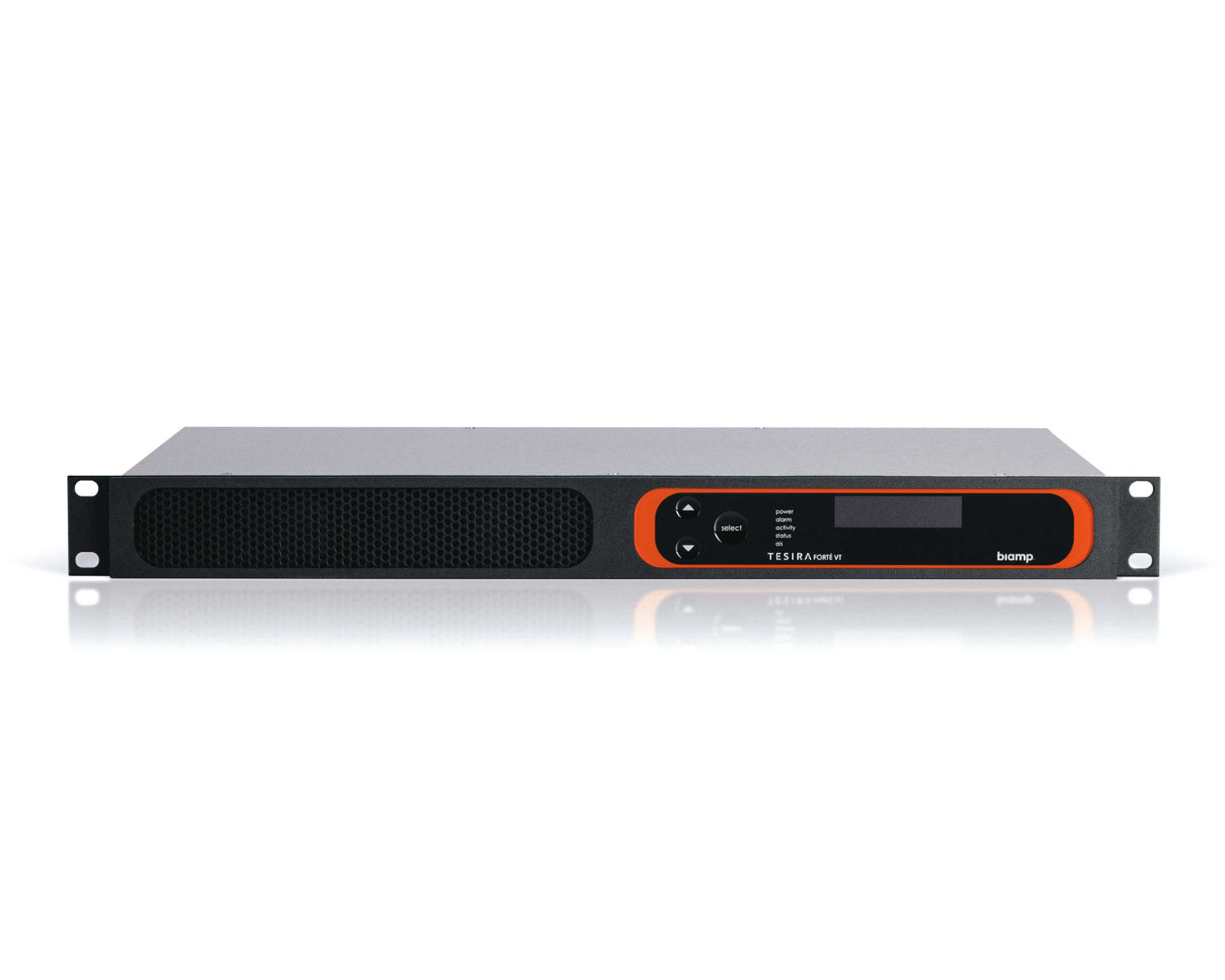

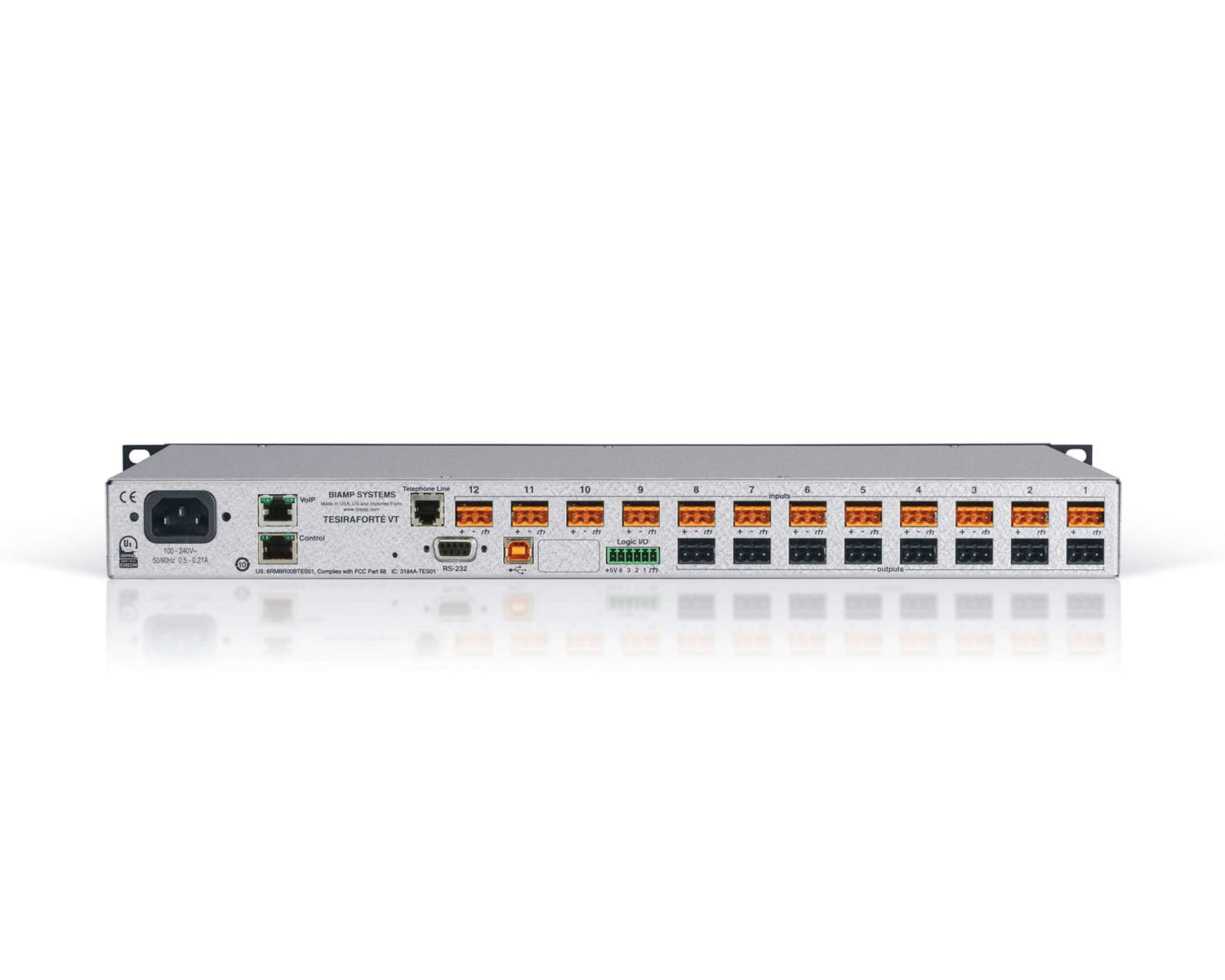

The Biamp TesiraFORTE VT (920-00449-00003) is a fixed I/O digital signal processor with 12 mic/line inputs (all with acoustic echo cancellation), 8 mic/line outputs and 2 channels of SIP VoIP. With a standard FXO telephone interface and 8 channels of USB audio, it suits larger conferencing rooms and divisible spaces that need high input count DSP and telephony in a 1RU chassis.
Key Features
12 mic/line inputs with AEC, 8 mic/line outputs
2 channels SIP VoIP via RJ-45, FXO telephone interface via RJ-11
Up to 8 channels of USB audio
Gigabit Ethernet, RS-232 serial and 4-pin GPIO
2-line OLED display with capacitive-touch navigation
Internal universal power supply, 1RU rack mountable
Configuration and control via Ethernet using Tesira software
Selectable +48VDC phantom power per input
Signal routing, mixing, EQ, filtering and delay
Covered by Biamp 5-year warranty
Specifications
| Inputs / Outputs | 12 mic/line in (AEC) / 8 mic/line out |
| VoIP / Telephony | 2 SIP VoIP lines, FXO (RJ-11) |
| USB audio | Up to 8 channels, 16/24-bit, 48kHz |
| Frequency response | 20Hz to 20kHz, +0.25/-0.5 dB |
| Dynamic range | >108 dB |
| Input gain range | 0-66 dB in 6 dB steps |
| Phantom power | +48VDC (7mA/input) |
| Conversion / sample rate | 24-bit, 48kHz |
| Power | 100-240VAC 50/60Hz, <35W |
| Dimensions (HxWxD) | 44 x 483 x 267 mm (1RU) |
| Weight | 3.63 kg |
