Sennheiser EW-DP 835 (S1-7) Portable Handheld Set with MMD 835 Capsule

Product code: 3316

£602.00 inc VAT
£501.67 ex VAT

SKU: 700033
5 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
2 Year Manufacturer Warranty Included

About this Product

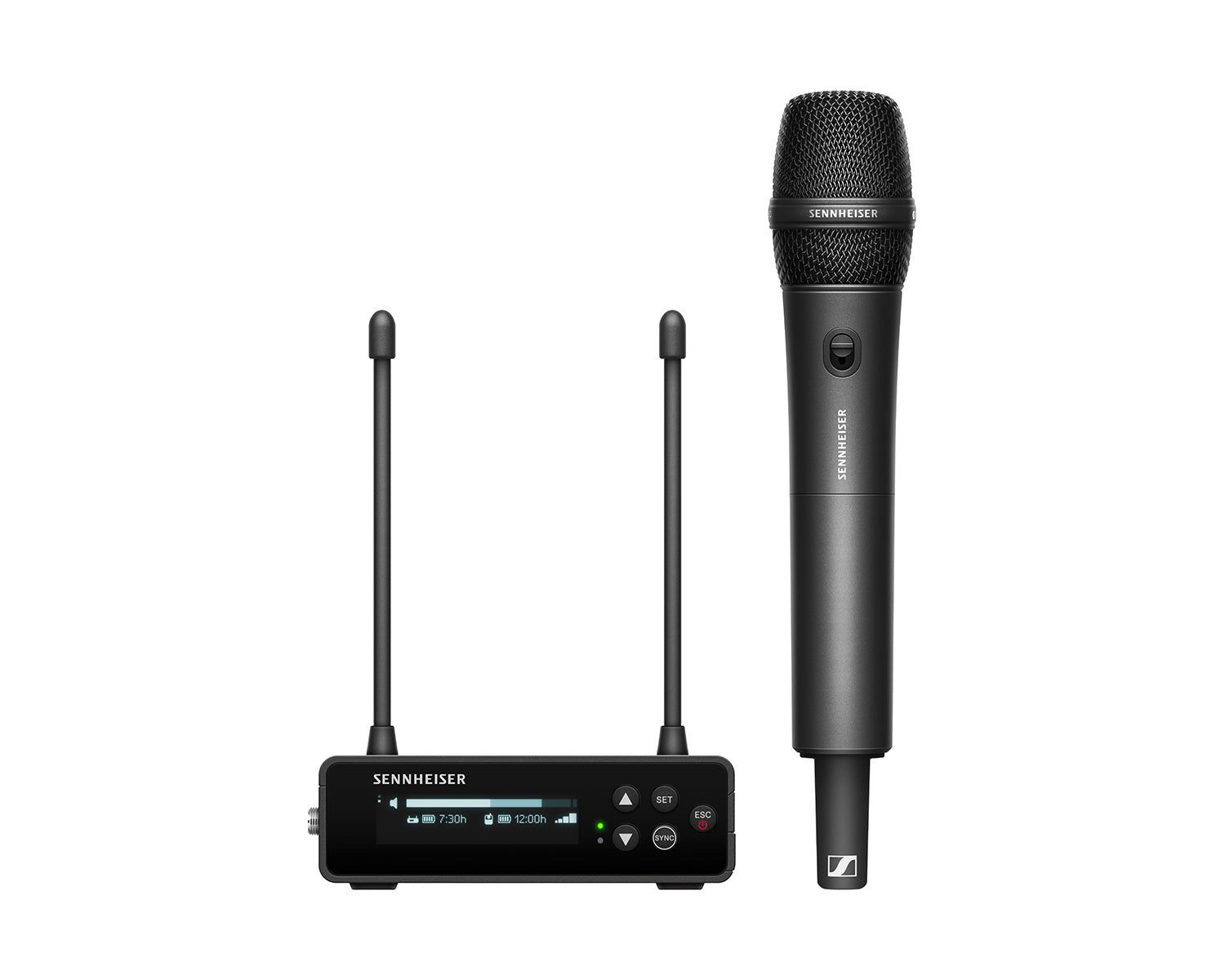

The Sennheiser EW-DP 835 Set is a portable digital wireless handheld package from the Evolution Wireless Digital Portable line. Supplied in the S1-7 band (606-662 MHz) with the SKM-S handheld transmitter and the MMD 835 cardioid dynamic capsule, it is aimed at video journalism, interview and run-and-gun production where a camera-mountable handheld wireless is required.

Key Features

EW-DP camera-mount portable digital wireless system

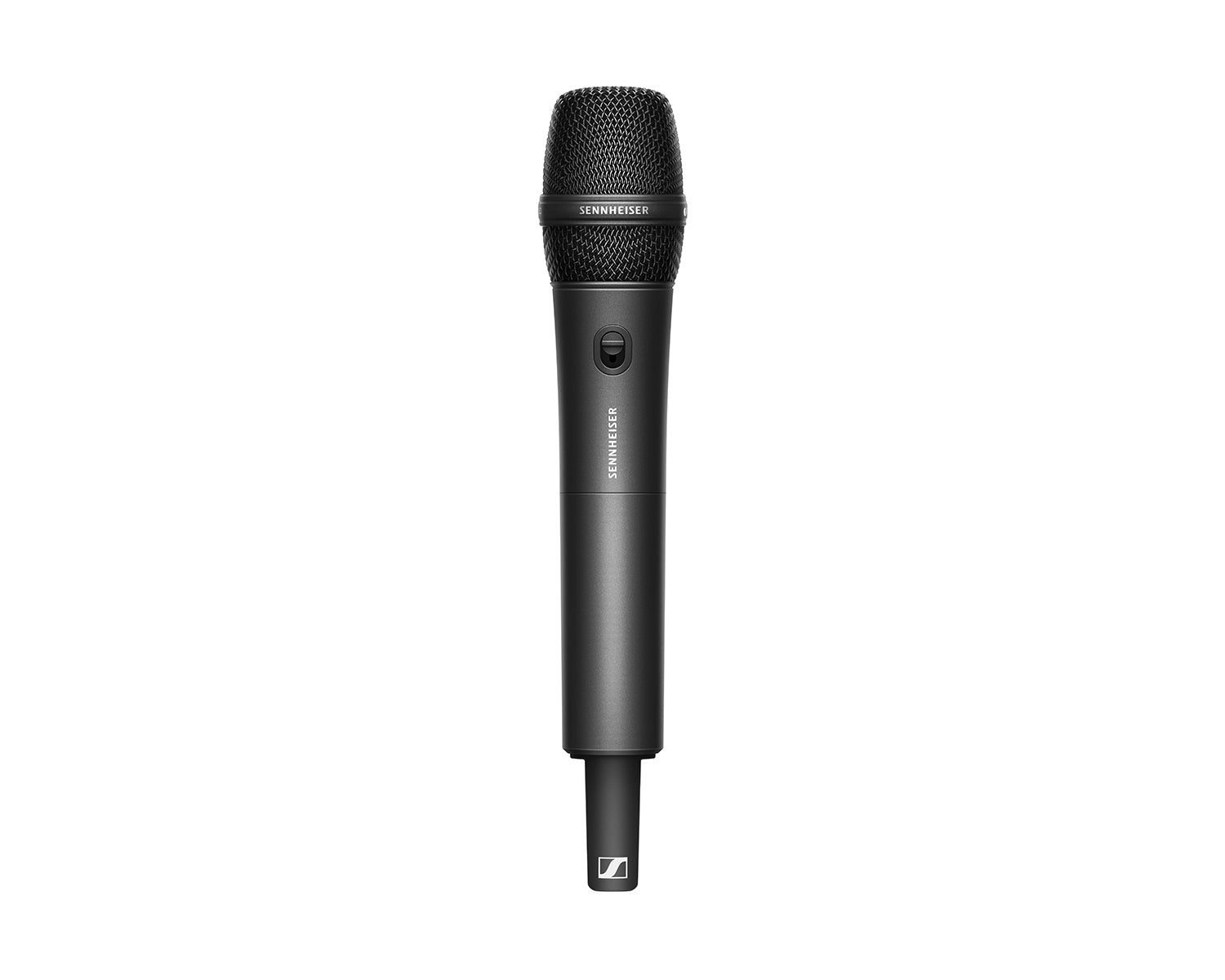

SKM-S handheld transmitter with mute switch
MMD 835 cardioid dynamic capsule

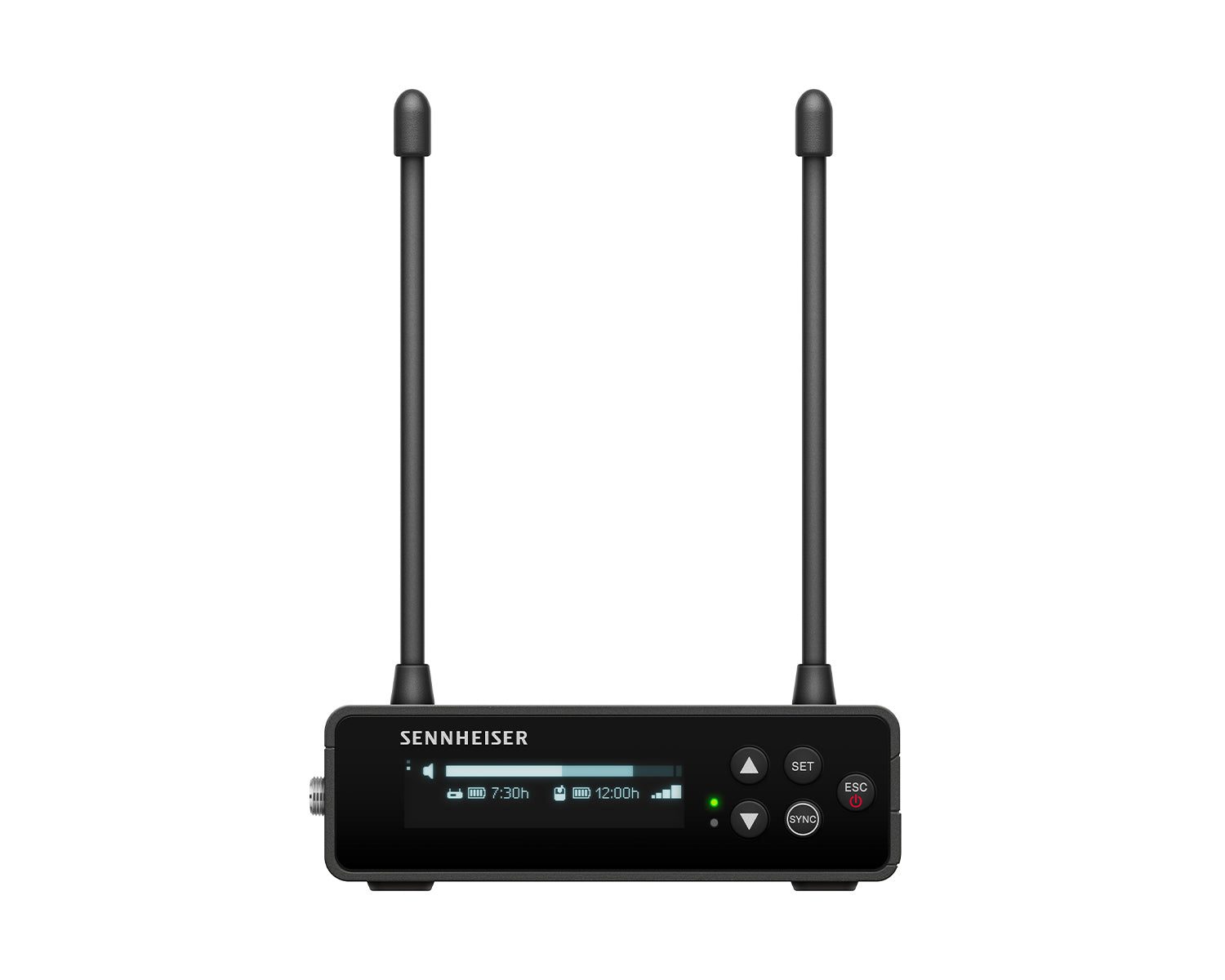

EW-DP EK portable single-channel receiver for camera or belt mounting

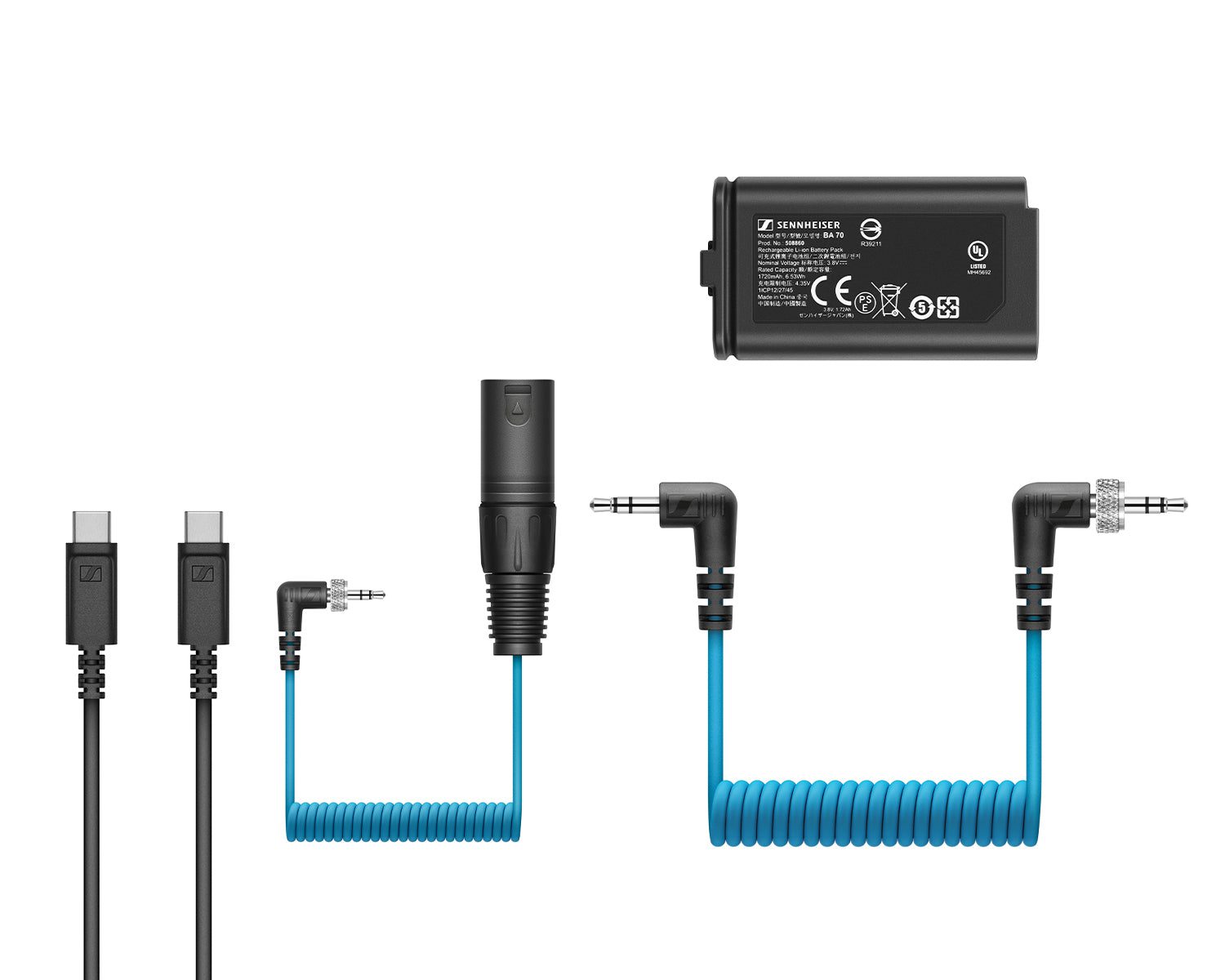

Locking 3.5 mm unbalanced output plus 3.5 mm headphone out; 3.5 mm and 3.5 mm-to-XLR cables supplied

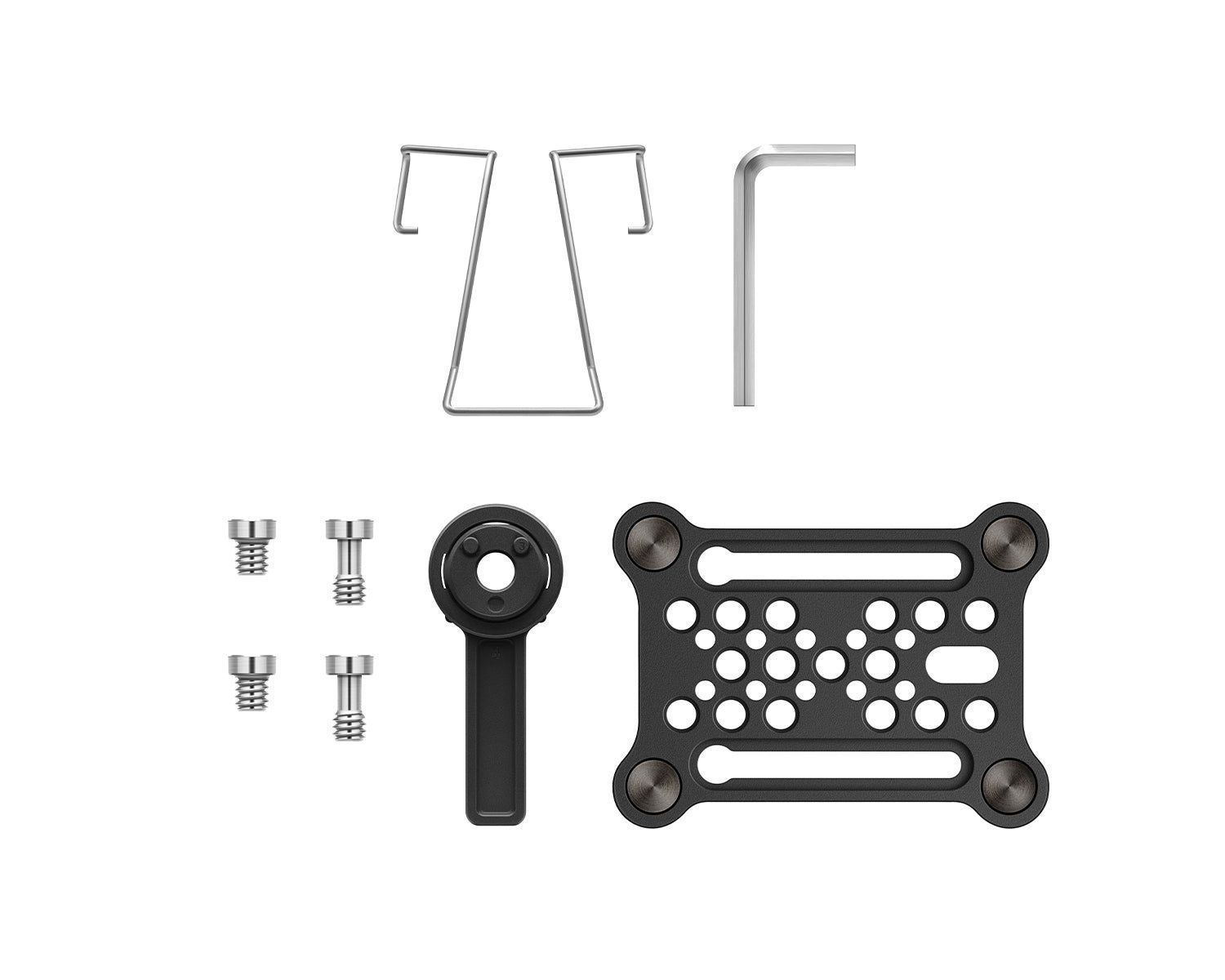

Cold-shoe mount hardware supplied
Compatible across EW-DP, EW-D and EW-DX families
Runs on AA batteries or BA 70 rechargeable packs
UK LicensingThe S1-7 range covers UK CH38 (606-614 MHz) available under the Ofcom Shared PMSE licence. Frequencies above 614 MHz require a coordinated PMSE licence.

Specifications

Sennheiser EW-DP 835 (S1-7) Portable Handheld Set with MMD 835 Capsule specifications
Family Evolution Wireless Digital Portable (EW-DP)
Set EW-DP 835 Set
Sennheiser article 700033
Frequency band S1-7 (606-662 MHz)
Transmitter SKM-S handheld
Capsule MMD 835 cardioid dynamic
Receiver EW-DP EK portable
Power AA or BA 70 rechargeable pack

Full features

  • Fully digital UHF wireless microphone system for video applications
  • Integrated Bluetooth for synchronization and control
  • Smart Notifications for troubleshooting and system guidance
  • Intelligent battery management provides operating time (hours:minutes)
  • Extended battery life: up to 12h on transmitter, 7h on receiver
  • Magnetically stackable components for versatile mounting
  • Industry leading 134 dB dynamic range for distortion free transmission
  • Up to 56 MHz bandwidth for flexibility in any RF environment
  • Exceptionally low latency (1.9 ms)
  • External charging and powering via USB-C (receiver only)
  • Smart Assist app for monitor & control
  • Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)

Full specifications

System

  • Audio link frequency ranges:
    • Q1-6: 470.2 - 526 MHz
    • R1-6: 520 - 576 MHz
    • R4-9: 552 - 607.8 MHz
    • S1-7: 606.2 - 662 MHz
    • S4-7: 630 - 662 MHz
    • S7-10: 662 - 693.8 MHz
    • U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
    • V3-4: 925.2 - 937.3 MHz
    • Y1-3: 1785.2 - 1799.8 MHz
  • Bluetooth Low Energy (BLE) frequency range: 2402 - 2480 MHz
  • Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
  • Audio THD: ‚â§ -60 dB for 1 kHz @ -3 dBfs input level
  • Dynamic range: 134 dB
  • System latency: 1.9 ms
  • Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
  • Relative humidity: 5 - 95 % (non-condensing)

EW-DP EK

  • Input voltage: ~ 1.8 - 4.35 V
  • Input current:
    • Typ. < 250 mA / Max. < 400 mA (BA 70)
    • Typ. < 400 mA / Max. < 750 mA (2x AA batteries)
    • < 300 mA@5 V (USB-C standalone)
  • Power Supply:
    • 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.):
      • 5V / 1500mA
      • 9V / 900mA
      • 12V / 700mA
  • Transmit power (radiated): BLE: max. 10 mW EIRP
  • Audio output power: < 2 dBV max. (high level) / < 4dBU max (high level)
  • Headphone Output < 50 mW into 16 Ohms
  • Dimensions: 86 x 67 x 28 mm (3.39" x 2.64" x 1.1")
  • Weight (without antennas and power supply): approx. 140g (0.31 lbs)

EW-D SKM-S (Handheld Transmitter)

  • Input voltage: 2.0 - 4.35 V
  • Input current: < 300 mA
  • Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied bandwidth: 200 kHz
  • Transmit power (radiated):
  • Audio link: 10 mW ERP
  • (Range Y1-3: 12 mW ERP)
  • BLE: max. 10 mW EIRP
  • Dimensions (√∏ x l):
    • (incl. MMD 835 microphone module): 50 x 268 mm (1.97" x 10.55")
    • (without microphone module): 40 x 200 mm (1.57" x 7.87")
  • Weight (without batteries):
    • (incl. MMD 835 microphone module): approx. 304 g (0.67 lbs)
    • (without microphone module): approx. 195 g (7.14 lbs)

MMD 835 (Microphone Module)

  • Transducer principle: dynamic
  • Sensitivity: 2.1 mV/Pa
  • Sound pressure level: 154 dB SPL
  • Pick-up pattern: cardioid
