Shure UA845UWB Antenna Distribution System 174-1805 MHz

Product code: 4907

£1,307.00 inc VAT
£1,089.17 ex VAT

SKU: UA845UWB-UK
1 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
2 Year Manufacturer Warranty Included

About this Product

The Shure UA845UWB-UK is the ultra-wideband antenna and power distribution system, five switchable bands spanning 174MHz to 1805MHz cover everything from VHF through UHF to the 1.8GHz range, feeding up to four receivers from one antenna pair with switchable DC bias for active antennas and cascade ports for a fifth receiver or second unit.

Features

5 switchable bands spanning 174-1805MHz
One antenna pair feeds up to 4 receivers + cascade
Switchable DC antenna bias
>25dB output isolation
Distributes power as well as RF in supported setups
NoteOne band is active at a time, select the band matching your wireless system; it doesn’t cover the whole span simultaneously.

Specifications

Shure UA845UWB Antenna Distribution System 174-1805 MHz specifications
Type Wideband antenna/power distribution system
SKU UA845UWB-UK
Bands 174-216 / 470-960 / 1240-1260 / 1492-1525 / 1785-1805 MHz (selectable)
Outputs 4 + 2 cascade
Connectors BNC, 50Ω
Gain -2 to +2dB per output

Full features

  • 5 Selectable Frequency Ranges The UA845UWB allows more options for avoiding intermodulation artifacts by switching between one of the five frequency bands

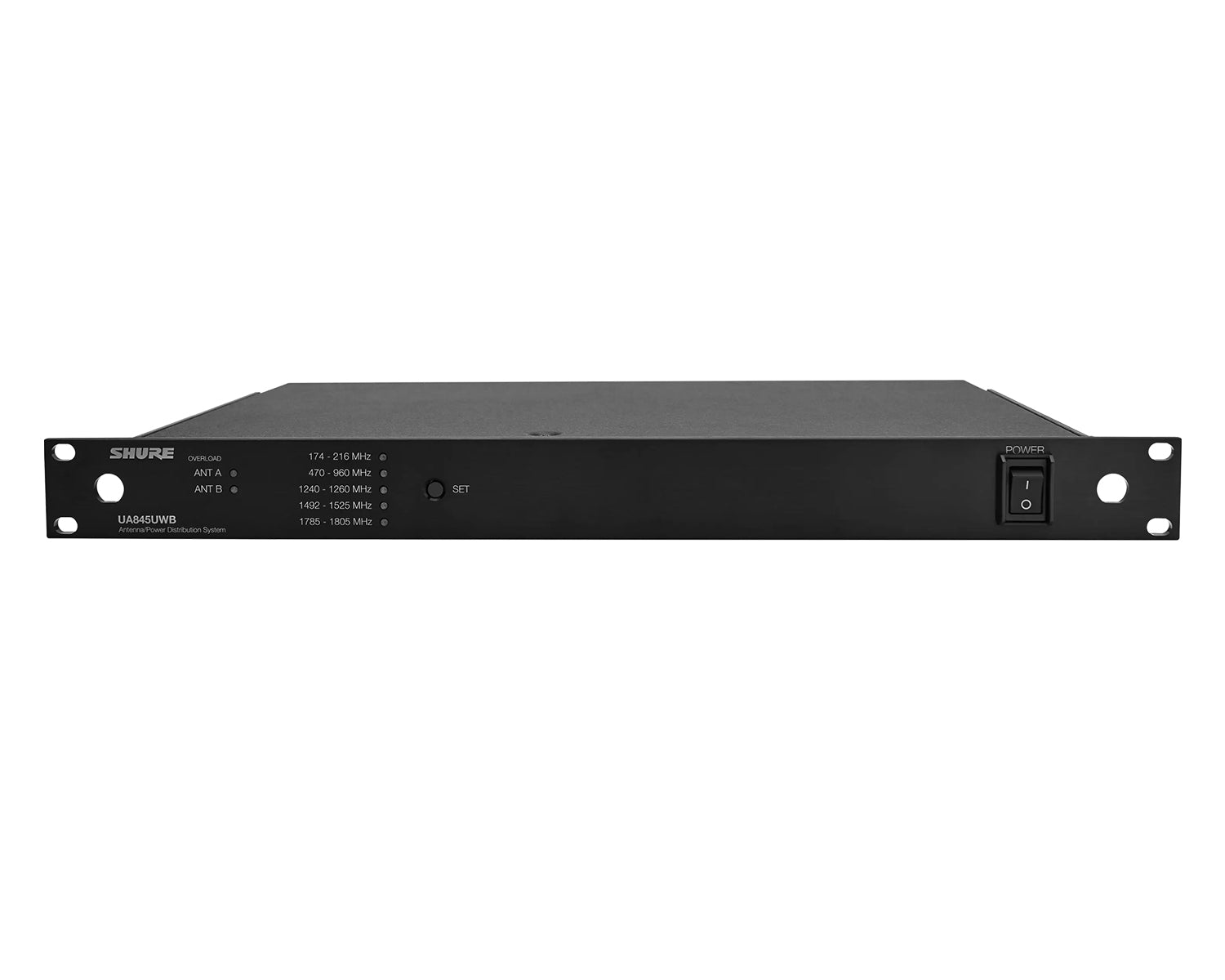

  • RF Power LED Indicators Front panel LED indicators display red if RF power is overloading.
  • Expandability The UA845UWB Antenna Distribution System is designed for large wireless systems. Each unit allows up to four wireless receivers to use the same two antennas, and the cascade ports allow connection to a fifth receiver or a second UA845UWB
  • Compatibility The UA845UWB is compatible with all Shure wireless microphone receivers operating within a compatible  frequency range

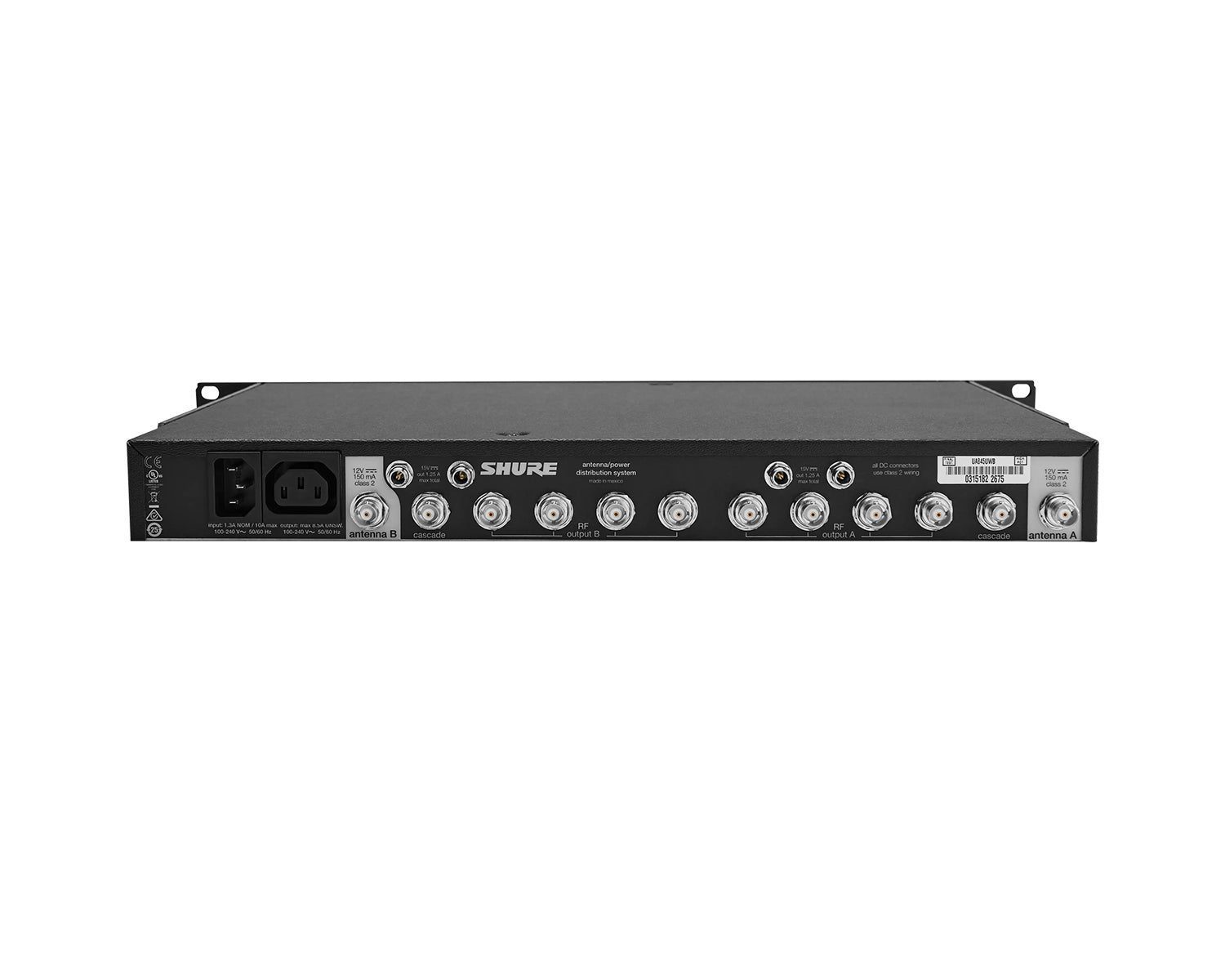

  • Cascade Ports Two 50 ohm, BNC-antenna cascade ports allow an additional UA845UWB unit or a fifth wireless receiver
  • A large wireless system can be run off of a single pair of antennas
  • Power Output and Out Connectors Multiple receivers can be daisy-chained and powered from a single source via the power output connectors
  • Low Noise and Intermodulation Distortion The UA845UWB maintains clean signals with minimal distortion
  • Insertion Loss Compensation Whenever a signal is split to multiple output ports, there is a loss in signal strength. The UA845UWB amplifies signals to compensate, ensuring a strong signal to the receivers
  • Front-Mounted Antennas The UA845UWB comes with hardware to front-mount the antennas, if desired

Full specifications

  • Carrier Frequency Range
    • Band 1:  174 to 216 MHz
    • Band 2:  470 to 960 MHz
    • Band 3:  1240 to 1260 MHz
    • Band 4:  1492 to 1525 MHz
    • Band 5:  1785 to 1805 MHz
  • Distributed Output Level (Gain) 0 dB, typical:
  • Receiver Antenna Input, Output Ports 1 to 4:  -2 dB to +2 dB
  • Receiver Antenna Input, Cascade Output:  -1 dB to +1 dB
  • Output Connector Isolation:  >25 dB, typical
  • Third-order Overload Intercept Point (OIP3):  24 dBm, typical
  • Input-Output AC Line Voltage, Switched:  100 to 240 V AC, 50/60 Hz
  • DC Output:  15 V DC, 4 Connectors
  • Output Current Combined total from all DC outputs:  2.5 A, maximum
  • Impedance:  50 Ω
  • Operating Temperature Range:  -18°C (0°F) to 63°C (145°F)
  • Dimensions:  44.5 x 482.6 x 295.3 mm H x W x D (1.75 x 19 x 11.6in.)
  • Net Weight:  3.32 kg (7.3 lbs)
  • Connector Type:  BNC
  • Power Consumption V AC Typical without powered antenna attached or receivers connected to the DC outputs:  14.1 W per unit
