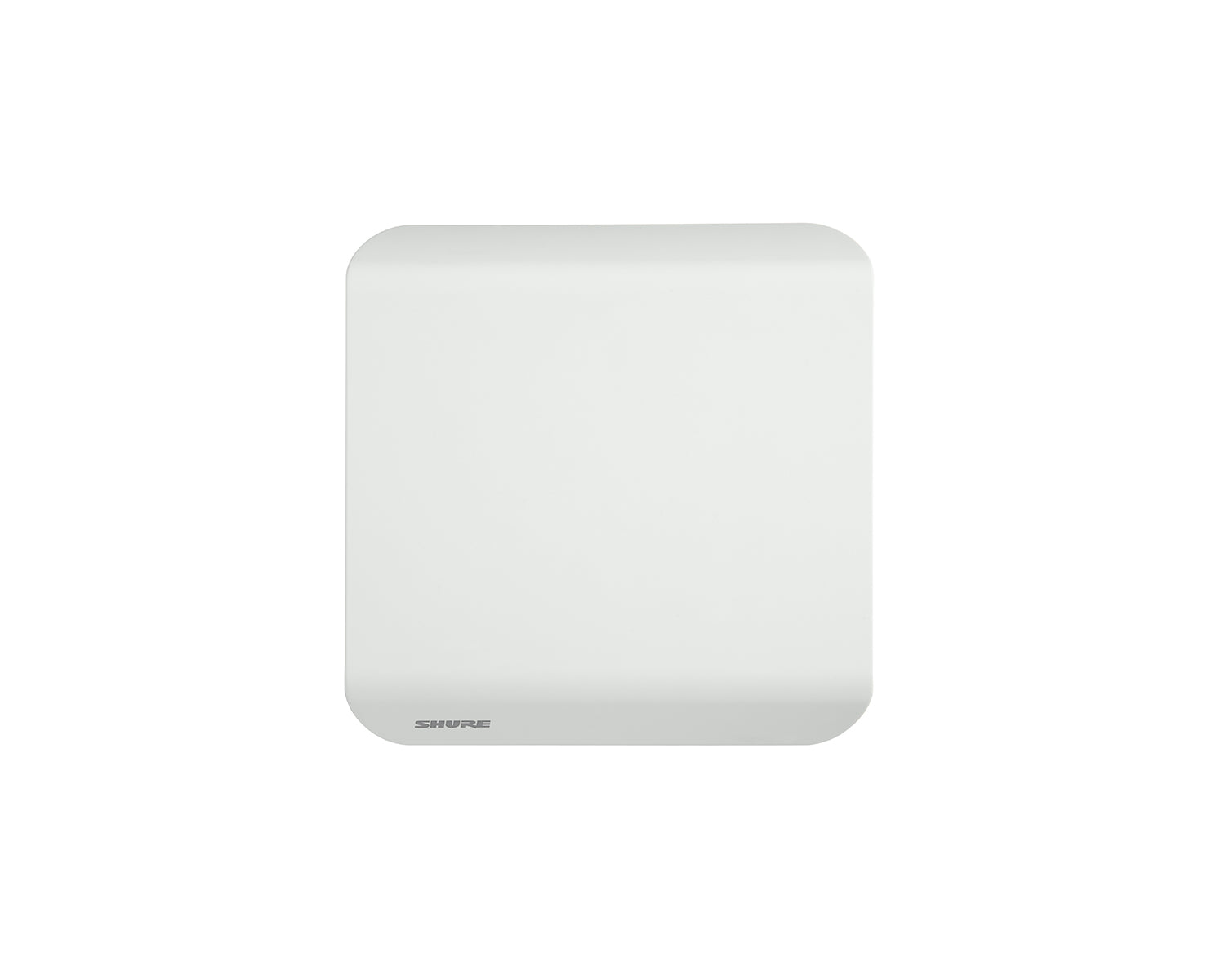

Shure UA864HI Wall/Ceiling Mounted Antenna 530-790MHz

Product code: 5406

£469.00 inc VAT
£390.83 ex VAT

SKU: UA864HI
4 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
2 Year Manufacturer Warranty Included

About this Product

The Shure UA864HI is an active low-profile wall/ceiling antenna for installed wireless, a paintable white housing that disappears into meeting rooms and lecture theatres while its amplifier drives long coax runs back to the rack. Covering 530-790MHz with a 95-degree beamwidth and a four-position gain switch from +10dB to -20dB.

Features

Low-profile paintable housing for discreet installs
Active amplification with 4-position gain (+10 to -20dB)
530-790MHz, 95° beamwidth

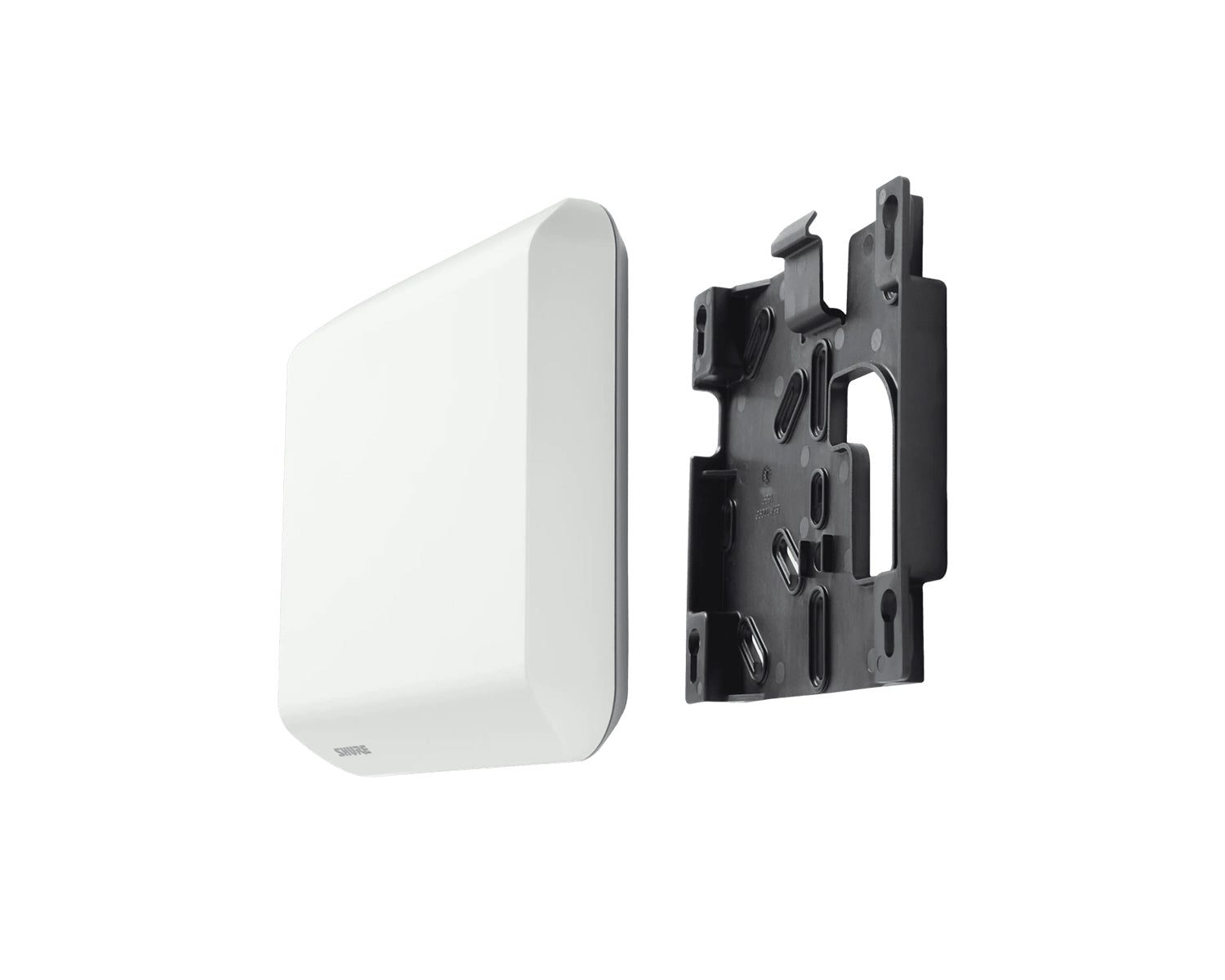

Wall, ceiling or junction-box mounting, plate included

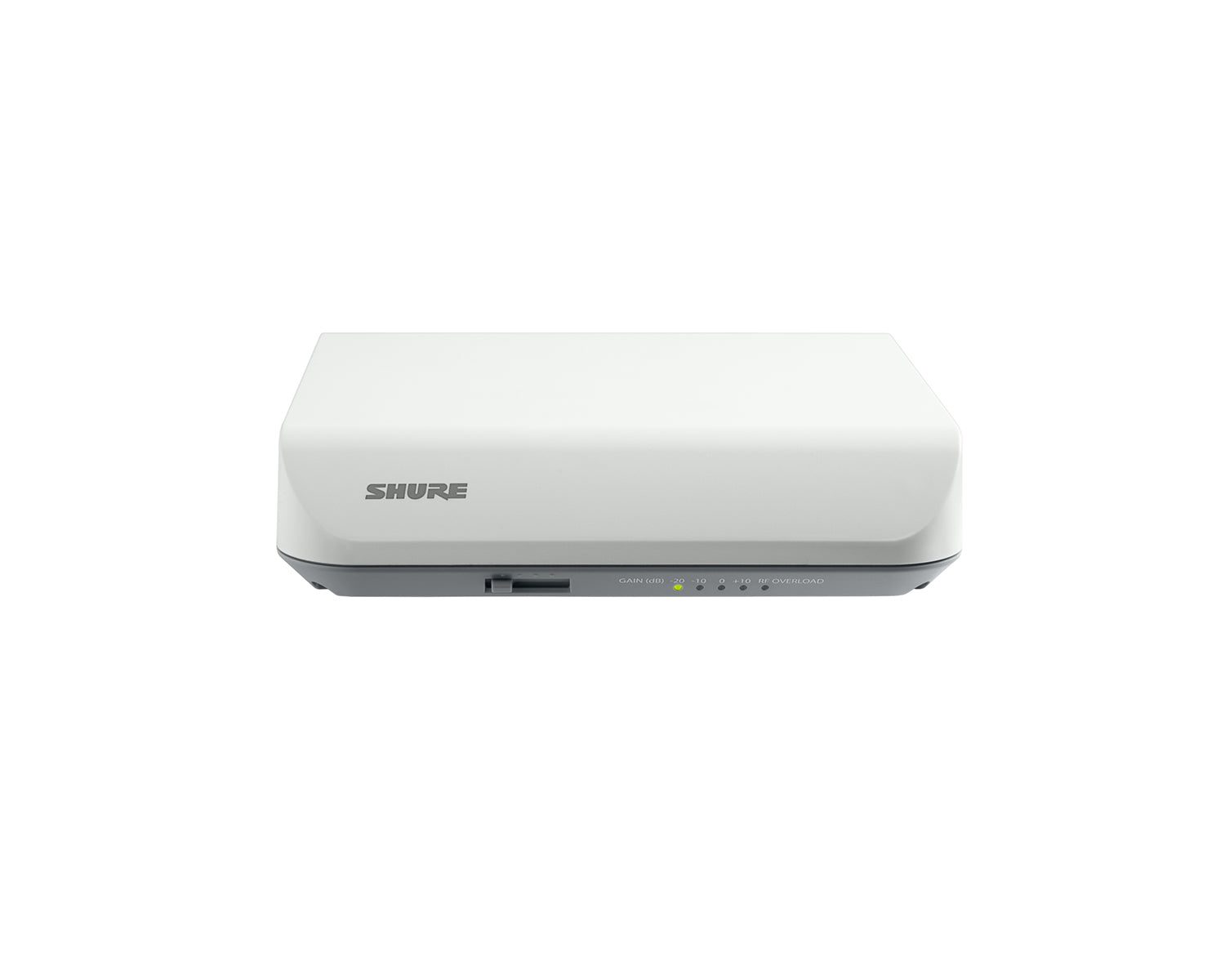

RF overload LED
NoteActive antenna, it does not work at all without DC bias from the receiver or distribution system. Enable bias on the feeding device.

Specifications

Shure UA864HI Wall/Ceiling Mounted Antenna 530-790MHz specifications
Type Active directional install antenna
SKU UA864HI
Frequency range 530-790MHz
Beamwidth 95° (-3dB)
Gain (0dB setting) 3.0 dBi on axis
Connector BNC female, 50Ω
Power 10-15V DC bias via coax (required)
Weight 487g

Full features

  • 530-790 MHz
  • Up to 100 degrees coverage pattern (3dB beam width, region dependent)
  • Four-position RF gain switch with pad/boost (-20, -10, 0, +10 dB)

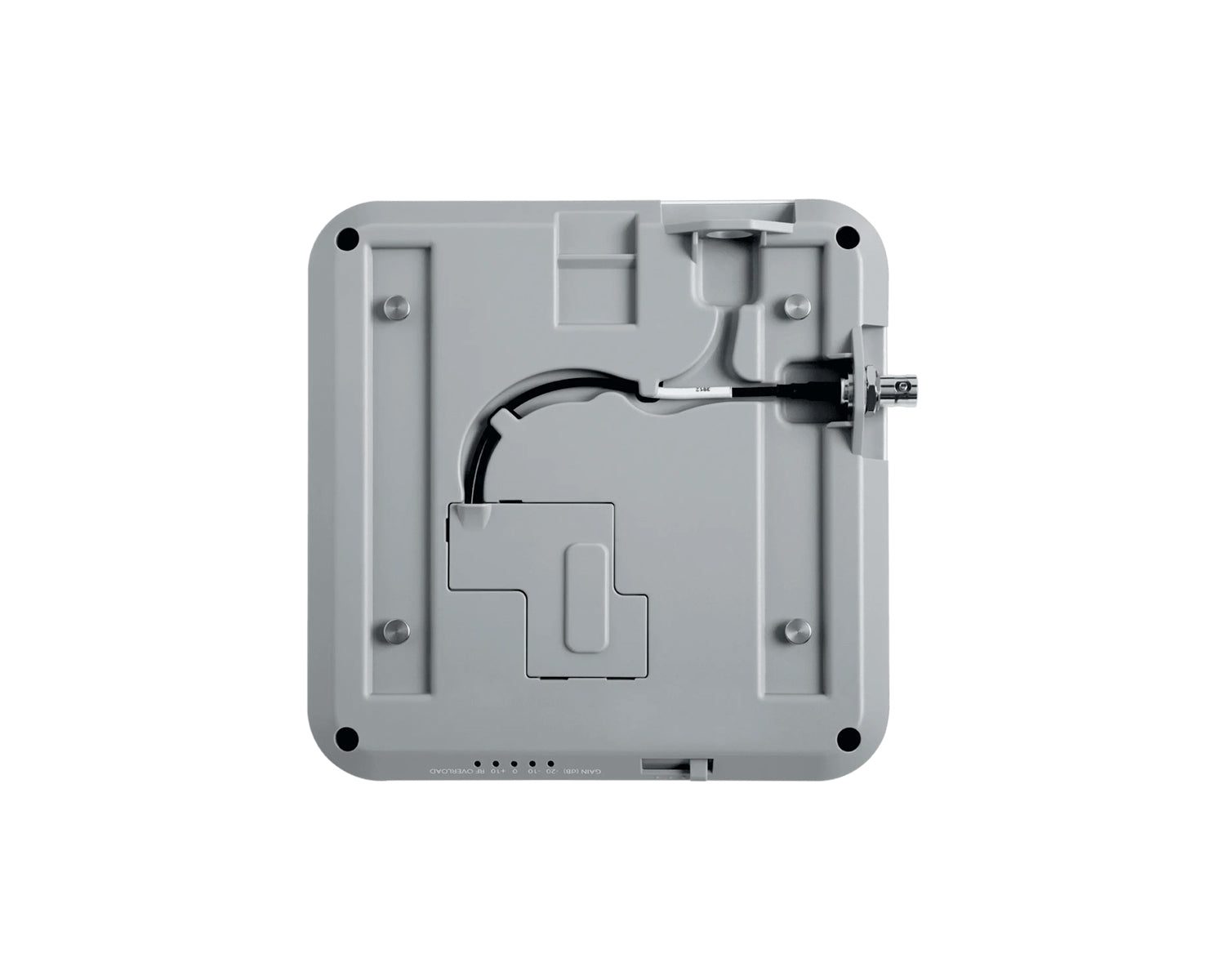

  • Attached BNC cable for surface or through-wall cable routing options
  • Low-profile design
  • Metal surface mounting capability
  • Neutral white, paintable housing

Full specifications

  • Connector Type:  BNC, Female
  • Impedance:  50 Ω
  • Power Requirements:  10 to 15 V DC bias from coaxial connection, 75 mA
  • RF Frequency Range:  530-790 MHz
  • Reception Pattern 3 dB Beam Width at centre frequency:  95 degrees
  • Third-order Overload Intercept Point (OIP3):  >30 dBm
  • Antenna Gain On Axis, 0 dB Gain Setting at centre frequency:  3.0 dBi
  • Signal Gain:
    • ±1 dB, switchable
    • +10 dB, 0 dB, -10 dB, -20 dB
  • RF Overload LED Threshold:  -15 dBm
  • Dimensions:  176 x 176 x 51 mm (H x W x D
  • Weight:  487 g (17.2 oz.)
  • Operating Temperature Range:  -7°C (20°F) to 49°C (120°F)
  • Storage Temperature Range:  -29°C (-20°F) to 74°C (165°F)
