BSS BLU-326 Soundweb London Signal Processor - Dante/AES67, Chassis Only, 1U (BLU320 + Dante)

SKU: BSSBLU326M-EK
BSS BLU-326 Soundweb London Signal Processor - Dante/AES67, Chassis Only, 1U (BLU320 + Dante)
BSS BLU-326 Soundweb London Signal Processor - Dante/AES67, Chassis Only, 1U (BLU320 + Dante)
Click to enlarge

    £4,450.00 inc VAT
    £3,708.33 ex VAT

    Ordered from supplier, allow 1–3 weeks
    Order in 3h 50m 9s for FREE delivery by Tue 22nd SepClick & Collect available Mon 21st Sep from us in London ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The BSS Soundweb London BLU-326 is a 1U networked signal processor with configurable card-slot I/O, Dante / AES67 audio and a fault-tolerant digital audio bus. It is effectively the BLU-320 with the addition of primary and secondary Dante network audio ports, making it a flexible DSP backbone for install and touring systems designed in HiQnet London Architect. This is the chassis-only version, supplied without I/O cards fitted.

    1U
    Format · chassis only
    4
    Card slots · I/O in banks of 4
    256 ch
    Audio bus · fault tolerant
    Dante
    Network audio · / AES67
    Chassis only – cards sold separatelyThe four card slots accept analogue input, analogue output, digital input and digital output cards in banks of four. Configure the I/O to suit your system; cards are ordered separately.
    Features
    Configurable via HiQnet London Architect with drag-and-drop logic objects
    Dante / AES67 audio with primary and secondary ports for fault tolerance

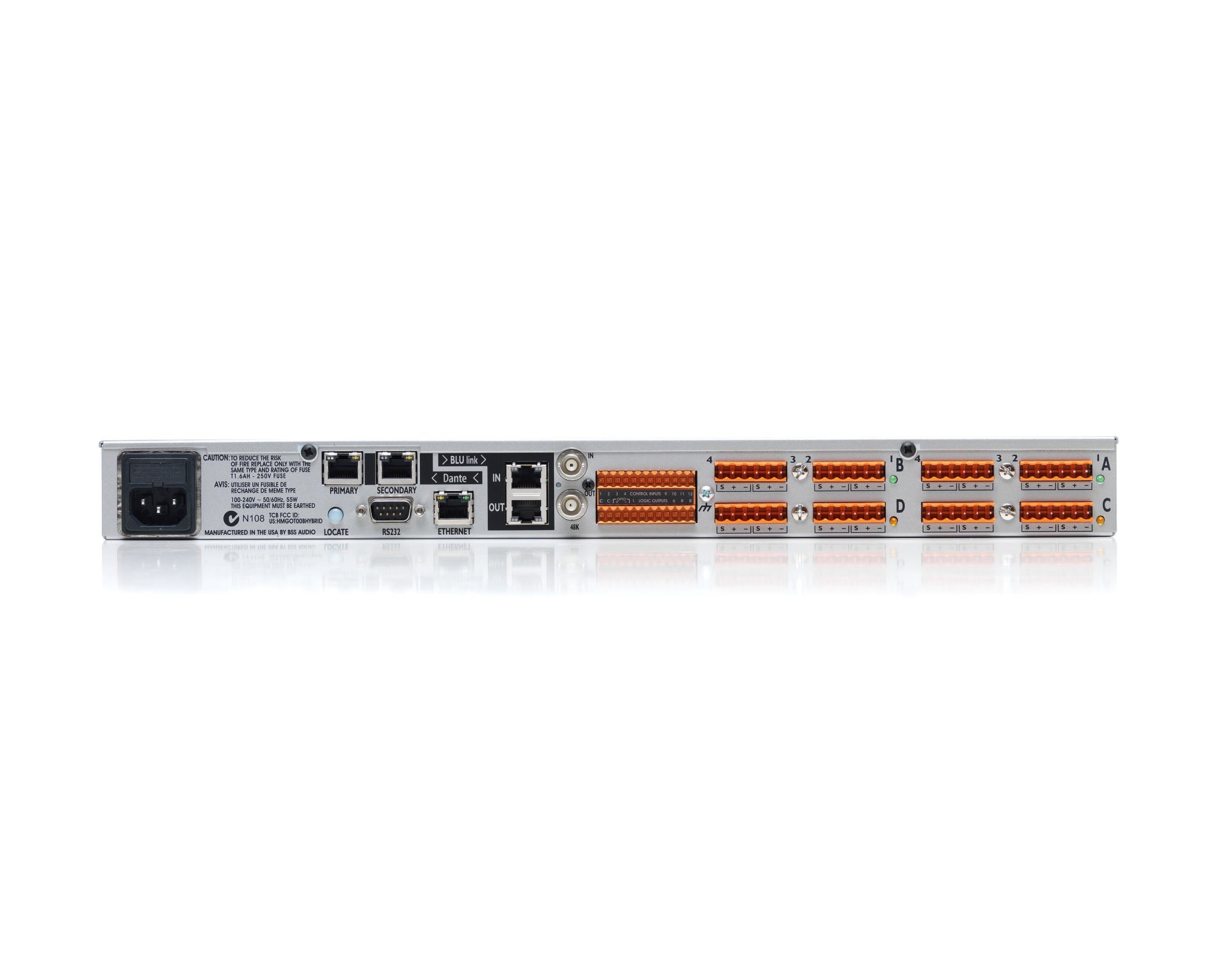

    Separate Ethernet port for control; Dante 4.0 firmware support for Dante Domain Manager
    256-channel low-latency fault-tolerant digital audio bus over Cat 5e (100m between devices)
    Fibre-optic media converters extend inter-device distance to over 40km
    Four card slots for analogue in / out and digital in / out in banks of four
    Analogue input cards: software-configurable gain to +48dB in 6dB steps, selectable phantom power per channel
    Digital I/O cards handle AES/EBU and S/PDIF with flexible clocking and syncing

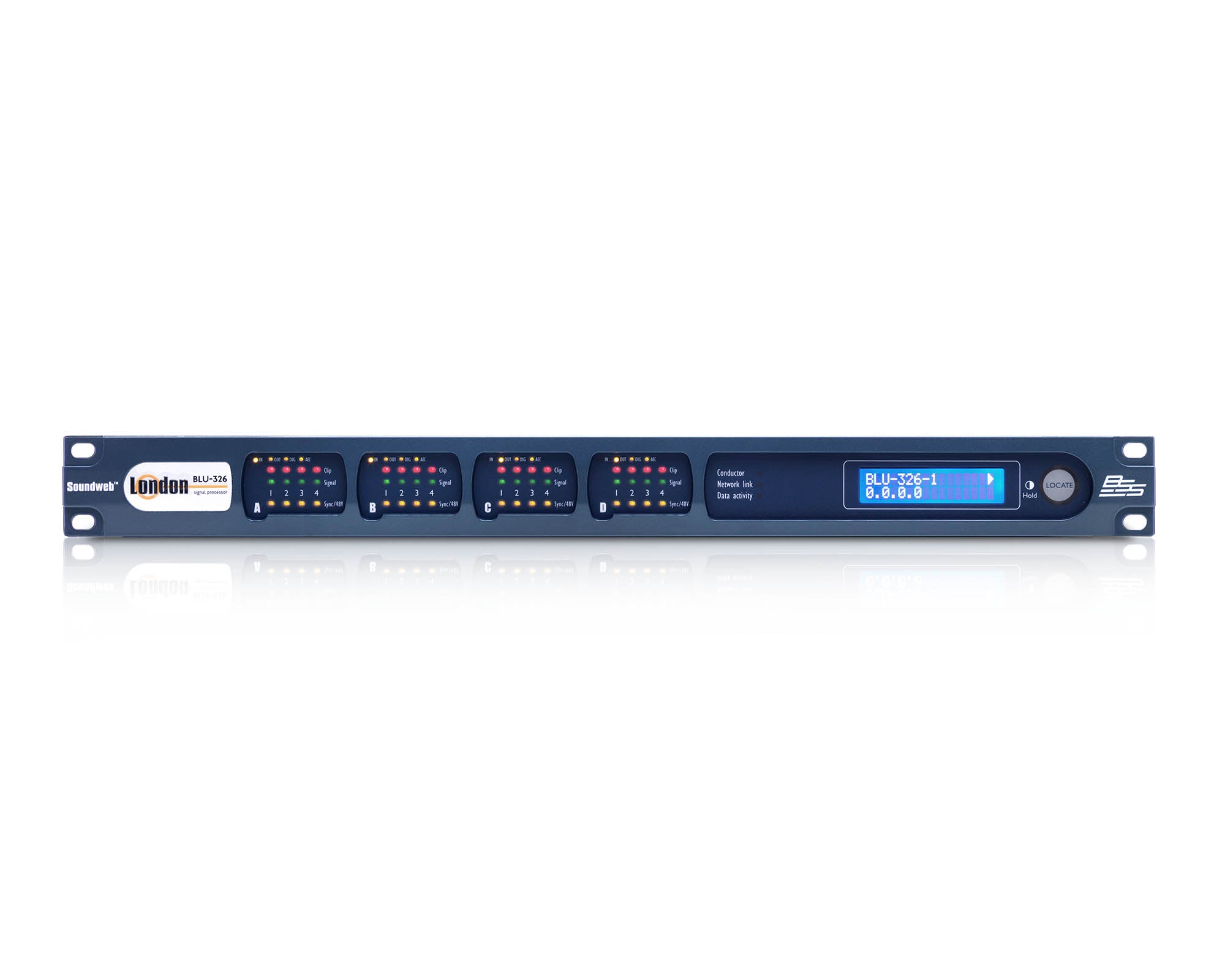

    Front-panel LED metering (phantom, sync, signal, clip) and device info display without a PC
    12 control inputs and 6 logic outputs for GPIO integration
    Specifications
    Type Soundweb London networked signal processor
    Network audio Dante / AES67, primary + secondary ports, Dante 4.0 firmware
    Digital audio bus 256 channels, fault tolerant, Cat 5e (100m); >40km via fibre
    Card slots 4 (analogue / digital I/O in banks of 4) – cards not included
    Control HiQnet London Architect; 12 control inputs, 6 logic outputs
    Rack size 1U
    Model BLU-326 / BLU-326DA (chassis only)

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • Four Input / Output Card Slots
    • Configurable Inputs / Outputs
    • Analog Inputs (with Phantom Power per Channel)
    • Analog Outputs
    • Digital Inputs (AES/EBU and S/PDIF)
    • Digital Outputs (AES/EBU and S/PDIF)
    • AEC Inputs (with Phantom Power per Channel)
    • Telephone Hybrid Card
    • Rich Palette of Logic Objects
    • AES67 and Dante Audio with support for Dante Domain Manager
    • 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus
    • Clear Front Panel LED Indication
    • Informative Front Panel Display
    • Bi-Directional Locate Functionality
    • 12 Control Inputs and 6 Logic Outputs for GPIO Integration
    • Soundweb London Interface Kit for Third Party Control System Integration (Documentation)
    • HiQnet Device
    • Configuration, Control and Monitoring from HiQnet London Architect
    • AES67 Compatible
    • EN 54-16 Compliant for life safety applications
