JBL

JBL Control 16C/VA 6.5" Coaxial Ceiling Speaker EN54 White

SKU: CONTROL 16C-VA

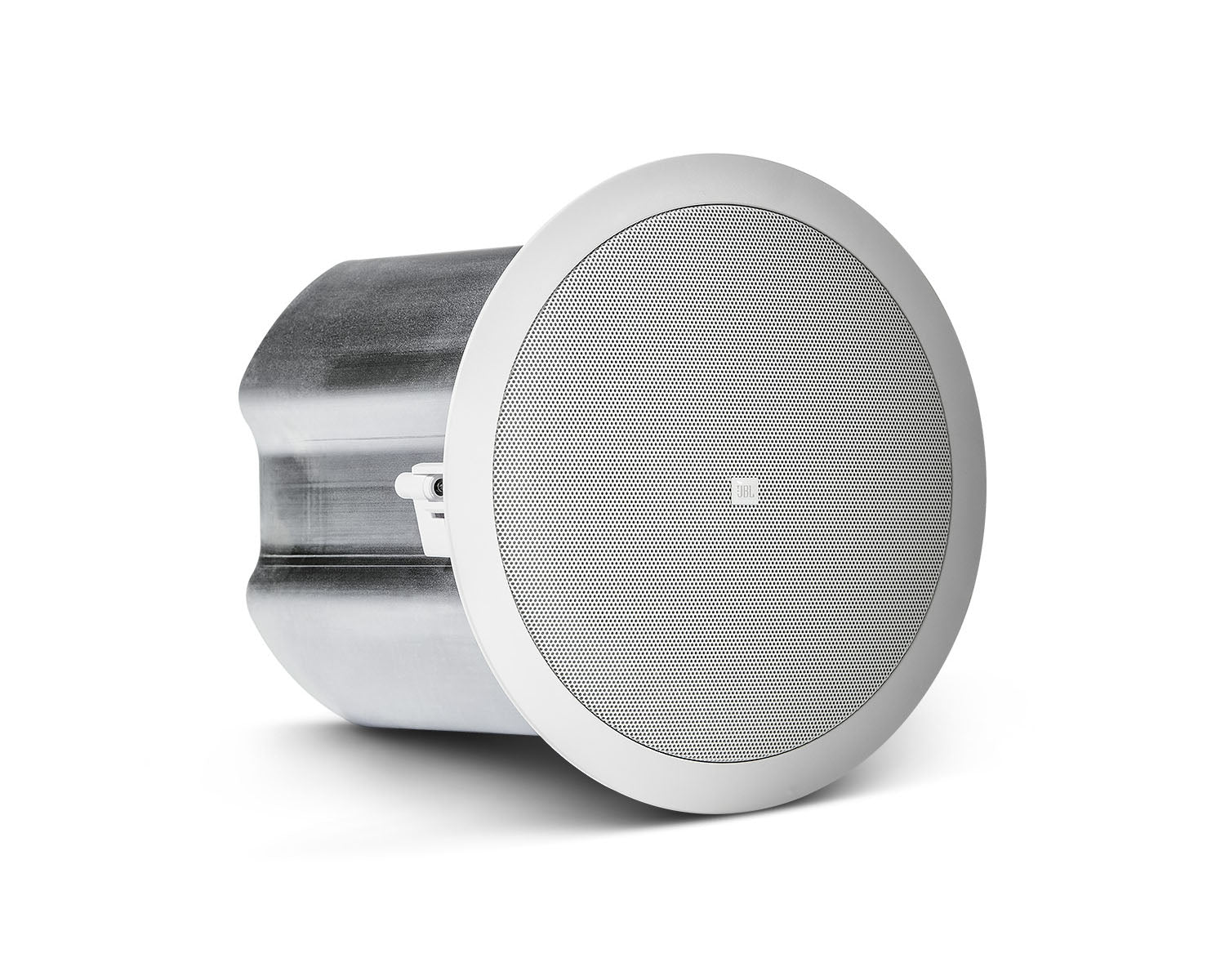

JBL Control 16C/VA 6.5" Coaxial Ceiling Speaker EN54 White - Image 1

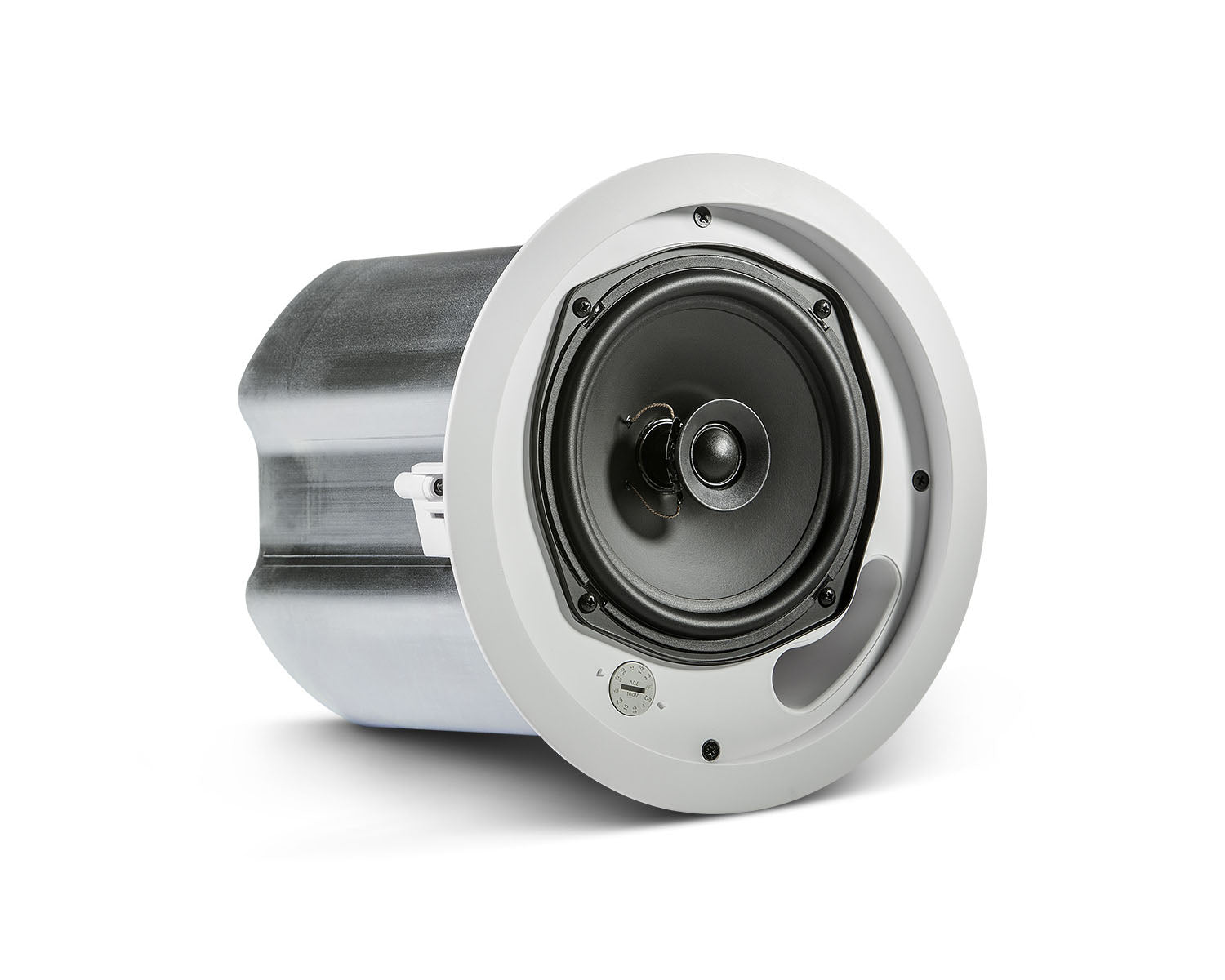

JBL Control 16C/VA 6.5" Coaxial Ceiling Speaker EN54 White - Image 2

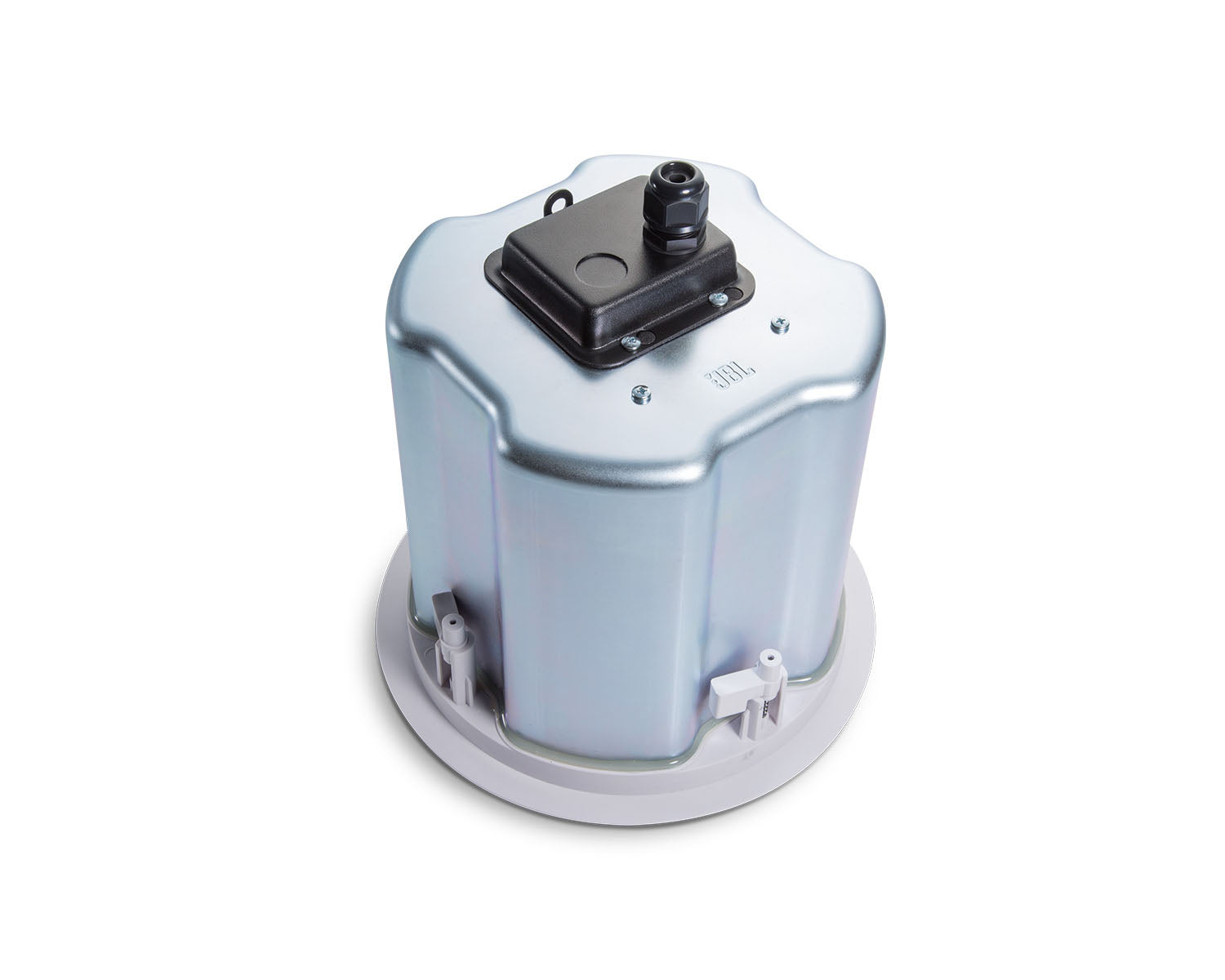

JBL Control 16C/VA 6.5" Coaxial Ceiling Speaker EN54 White - Image 3

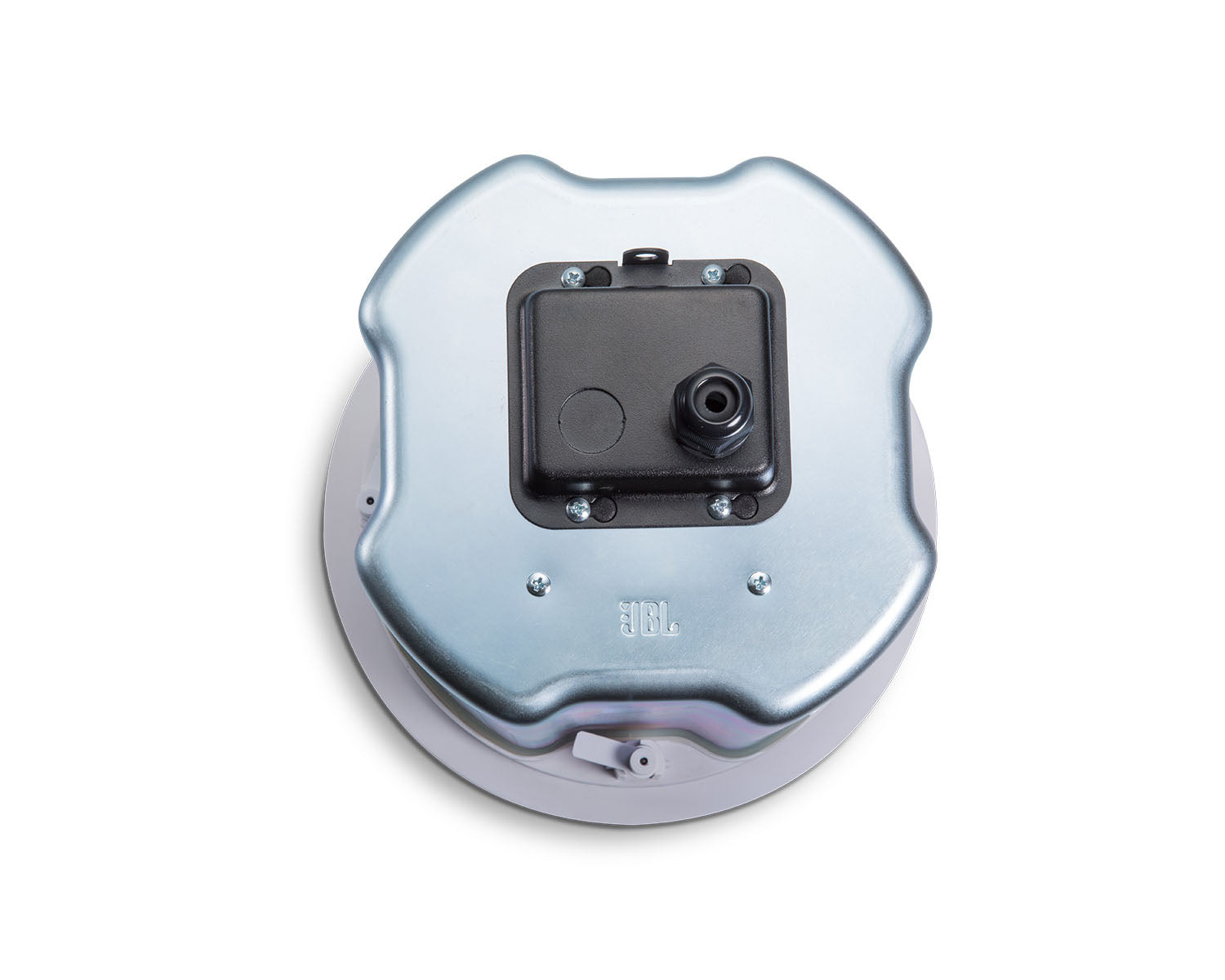

JBL Control 16C/VA 6.5" Coaxial Ceiling Speaker EN54 White - Image 4
Click to enlarge

    £90.00 inc VAT
    £75.00 ex VAT

    1 in stock (more available subject to additional lead time)

    1 available online
    More available from supplier in 1–3 weeks
    Delivered by MondayOrder by 3pm tomorrow
    Click & Collect Friday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The JBL Control 16C/VA is a 6.5in two-way ceiling speaker certified to EN 54-24 for voice alarm and evacuation systems, as well as background music and paging. It has a 30W transformer for 100V and 70V lines and an 8 ohm direct setting, with a pre-fitted steel back can for blind mounting. Typical uses are offices, shops, hotels, schools, airports and public buildings that need an EN54 speaker.

    6.5in
    2-way coaxial
    EN 54-24
    Certified
    30W
    Max 100V tap
    110°
    Conical coverage
    EN 54-24 certifiedCertified for life safety and voice alarm use. Fitted with a ceramic terminal block, thermal fuse and steel back can. The complete system must still be designed and commissioned to the relevant standards.
    Features
    165 mm (6.5 in) polypropylene cone driver with butyl rubber surround and 19 mm (0.75 in) liquid-cooled soft-dome tweeter
    Taps at 30W, 15W, 7.5W on 100V; 30W, 15W, 7.5W, 3.8W on 70V
    8 ohm direct setting, 50W continuous pink noise
    110° conical coverage
    Pre-attached formed steel back can for blind mounting, suitable for plenum use
    Ceramic terminal block with brass inserts, earth connected to the back can, accepts 2.5 mm² cable
    Gland for round cables 4 to 9 mm diameter
    Paintable ABS baffle rated UL94-V0 and UL94-5VB
    Cardboard cutout template included
    Sold individually
    Specifications
    Frequency response (-10 dB) 62 Hz to 20 kHz
    Frequency response (±3 dB) 96 Hz to 15 kHz
    Power rating (low-Z) 100W continuous programme, 50W continuous pink noise (200W peak)
    100V taps 30W, 15W, 7.5W
    70V taps 30W, 15W, 7.5W, 3.8W
    Low-impedance setting 8 ohms
    Sensitivity (1W, 1 m) 91 dB
    EN54 sensitivity (4 m) 77 dB
    Maximum SPL (1 m) 108 dB low impedance (116 dB peak), 106 dB at top tap
    EN54 maximum SPL (4 m) 91 dB
    Coverage 110° conical
    Directivity index 8.2 dB
    Thermal fuse Opens at 152°C
    Dimensions 253 mm diameter x 262 mm depth (behind baffle, to gland nut)
    Ceiling cutout 223 mm diameter
    Ceiling thickness Up to 38 mm (60 mm with MTC-TCD)
    Weight 3.4 kg

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
    • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
    • EN 54-24 Compliant for Life Safety Applications
    • Blind-mount backcan for quick and easy install
    • Combined 70V/100V and low impedance direct operation
      • 50 Watts at 8Ω nominal setting
      • 30W multi-tap at 70V/100V
    • 62 Hz – 20 kHz bandwidth with wide 110° coverage
    • High 91 dB sensitivity for high maximum SPL
    • Finish: White
