Rated 4.9 (120 reviews)

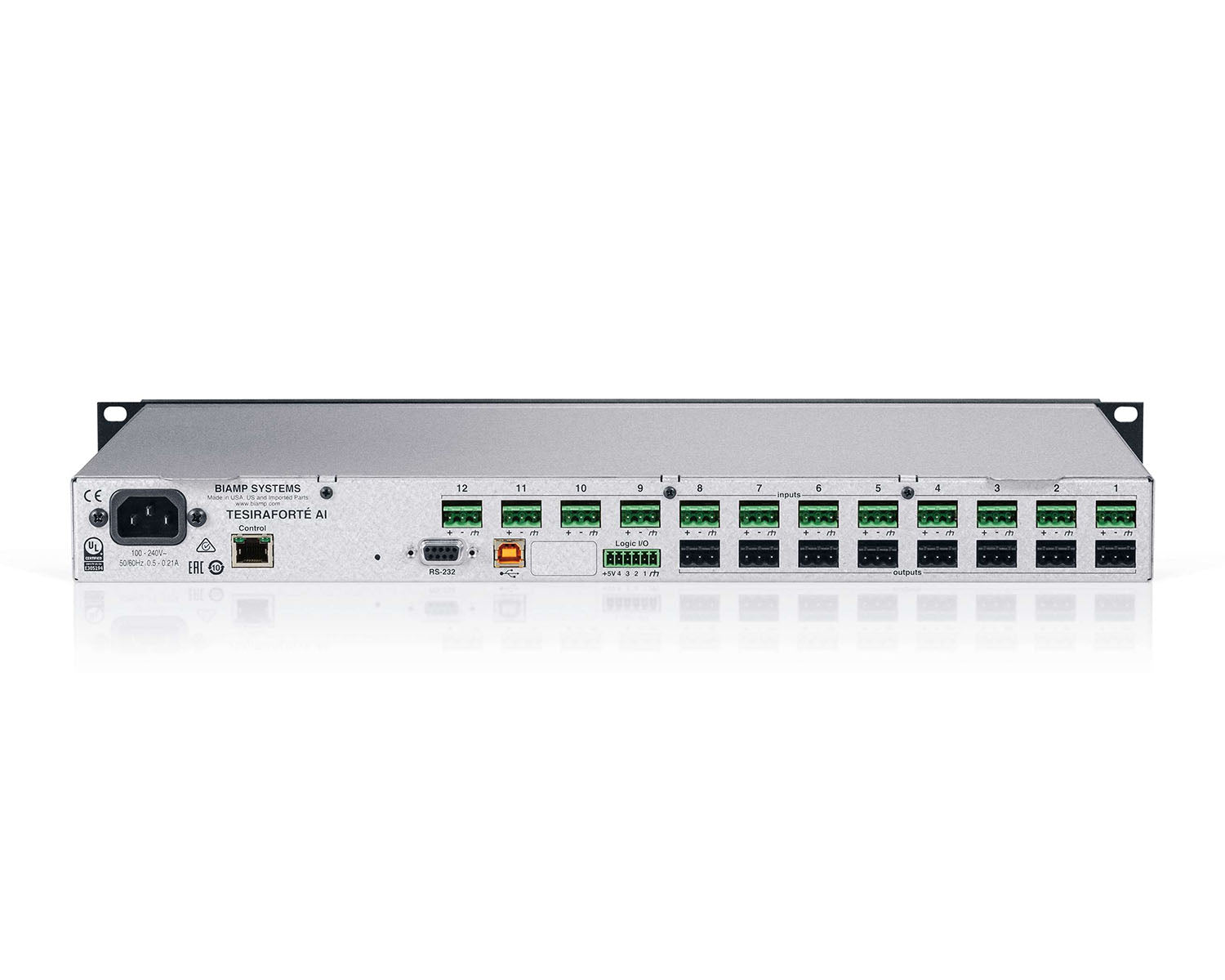

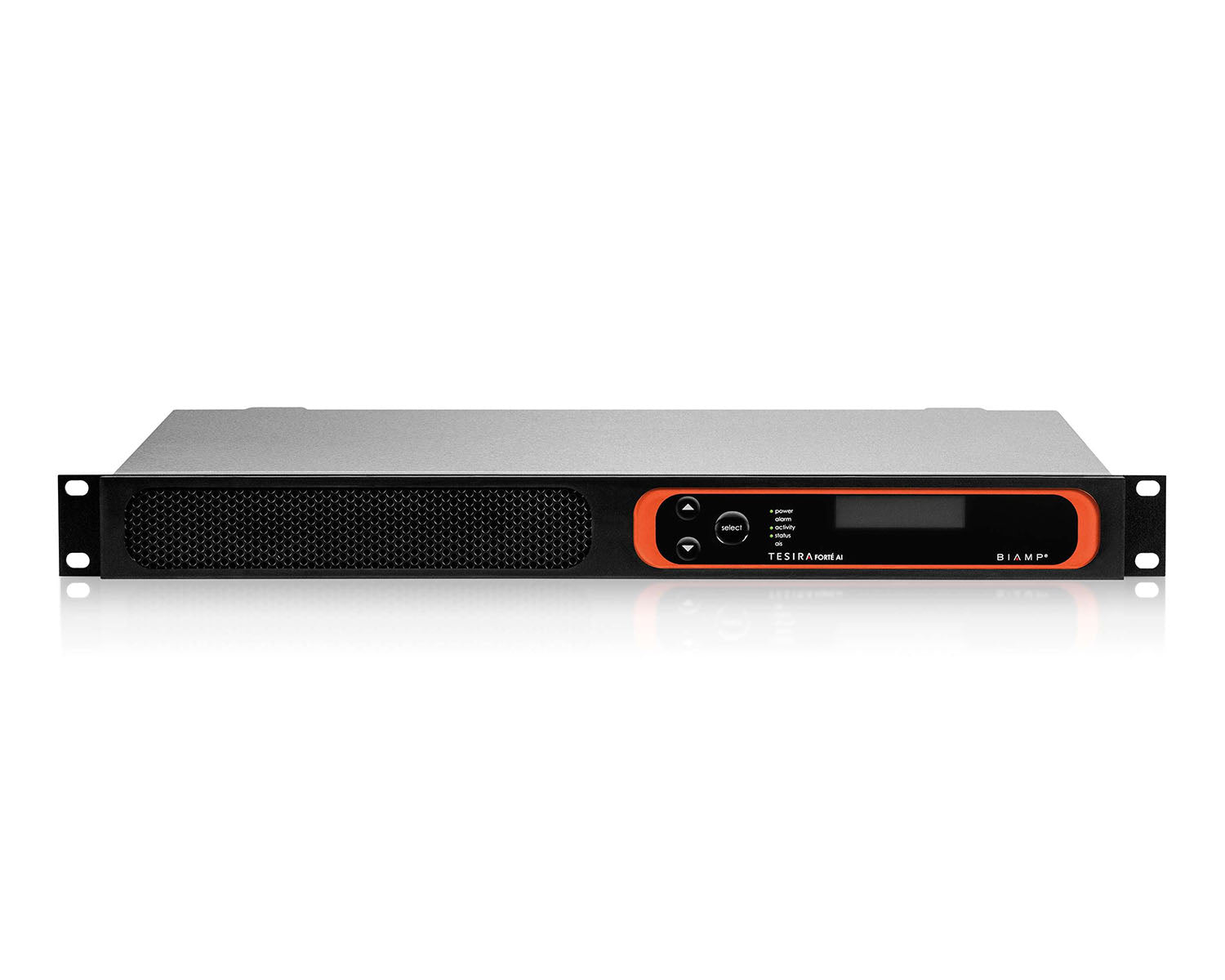

The Biamp TesiraFORTE AI (SKU 920-00400-00003) is a fixed I/O digital signal processor with 12 mic/line inputs and 8 mic/line outputs in a 1U chassis. It adds up to 8 channels of configurable USB audio alongside Gigabit Ethernet, RS-232 and GPIO, configured and controlled through Tesira software for routing, mixing, EQ, filtering and delay.
Key Features
12 mic/line inputs, 8 mic/line outputs
Up to 8 channels of configurable USB audio
Gigabit Ethernet port with IEEE 802.1X port authentication
RS-232 serial port and 4-pin GPIO
2-line OLED display with capacitive-touch navigation
Internal universal power supply
Selectable maximum output level per channel
Configured and controlled via Tesira software
Rack mountable, 1U
Covered by Biamp 5-year warranty
Specifications
| Inputs | 12 mic/line |
| Outputs | 8 mic/line |
| USB audio | Up to 8 channels, 16/24-bit, 48 kHz |
| Control ports | Gigabit Ethernet, RS-232, 4-pin GPIO |
| Frequency response | 20 Hz – 20 kHz, +0.25 / -0.5 dB |
| THD+N (0 dB gain) | < 0.006% |
| EIN | < -125 dBu |
| Dynamic range | > 108 dB |
| Input impedance (balanced) | 8 kohm |
| Output impedance (balanced) | 207 ohm |
| Maximum input | +24 dBu |
| Input gain range | 0-66 dB (6 dB steps) |
| Phantom power | +48 VDC (7 mA/input) |
| Sampling rate | 48 kHz |
| Converters | 24-bit |
| Power supply | 100-240 VAC 50/60 Hz, < 35W |
| Rack height | 1U |
| Dimensions (W x H x D) | 483 x 44 x 267 mm |
| Weight | 3.63 kg |
