Biamp TesiraFORTE AVB VT4 AVB Fixed I/O DSP 4AEC-in / 8out / 2-VoIP

SKU: 920-00452-00003
Biamp TesiraFORTE AVB VT4 AVB Fixed I/O DSP 4AEC-in / 8out / 2-VoIP
Biamp TesiraFORTE AVB VT4 AVB Fixed I/O DSP 4AEC-in / 8out / 2-VoIP
Click to enlarge

    £3,008.00 inc VAT
    £2,506.67 ex VAT

    1 available
    More available from supplier in 1–3 weeks
    Order in 29h 13m 5s for FREE delivery by WednesdayClick & Collect available Tue 18th Aug from us in London ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

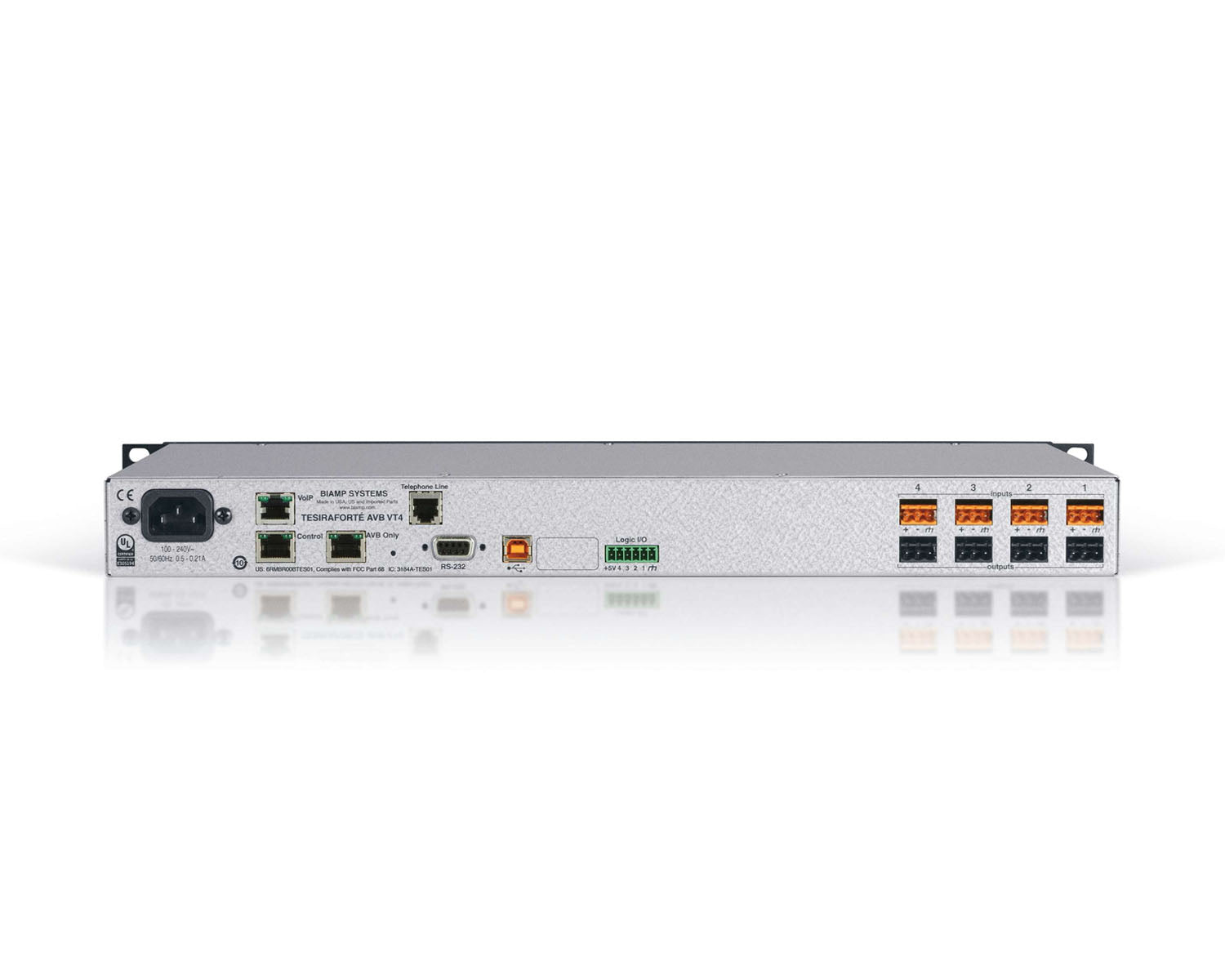

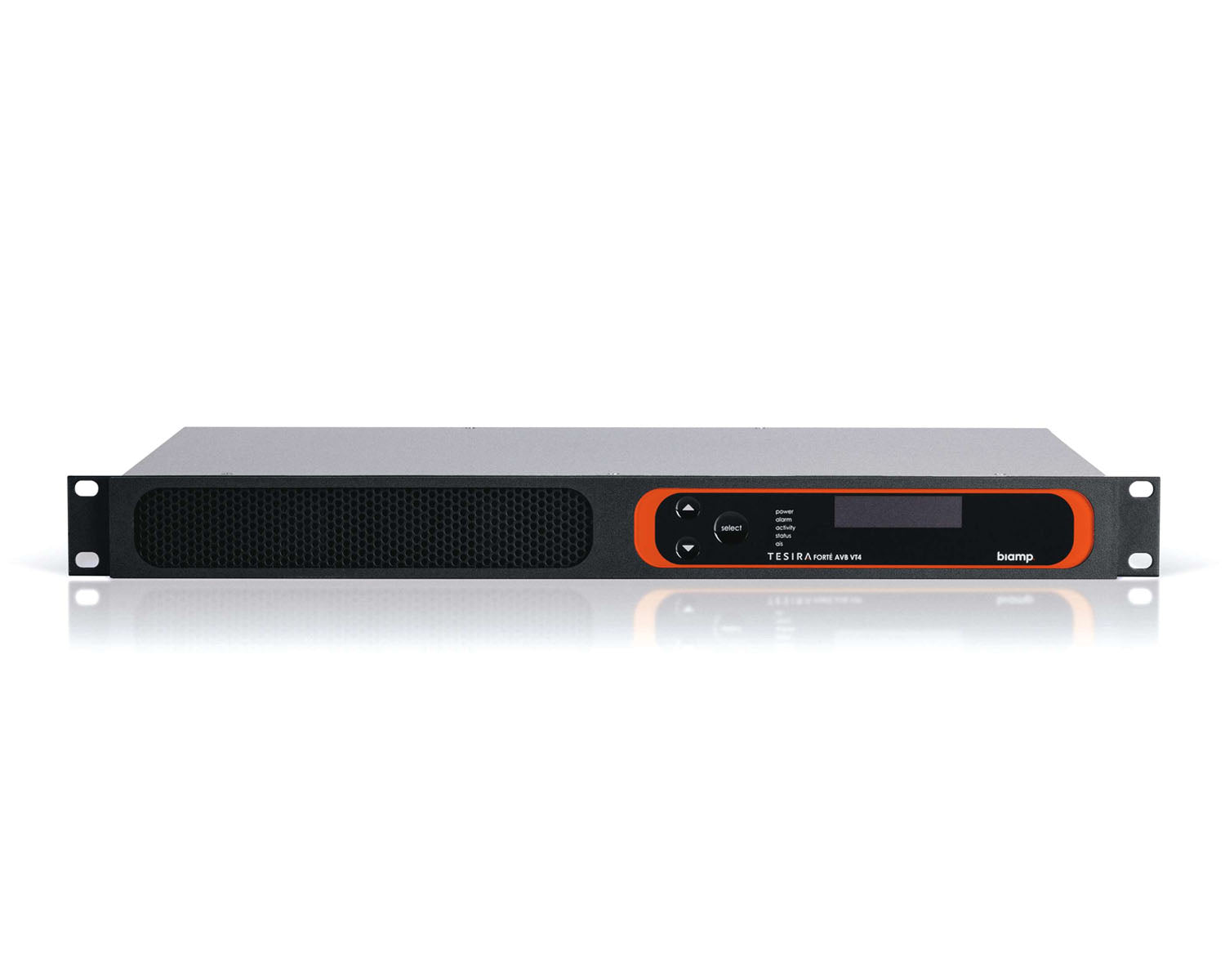

    The Biamp TesiraFORTE AVB VT4 (SKU 920-00452-00003) is an AVB-networked fixed I/O DSP with 4 mic/line inputs with acoustic echo cancellation, 4 outputs and two VoIP interfaces, in a 1U chassis. It carries 128 x 128 channels of AVB and provides a SIP VoIP RJ-45 interface plus an FXO analogue telephone interface for conferencing.

    Key Features
    128 x 128 channels of AVB
    4 mic/line inputs with acoustic echo cancellation
    4 mic/line outputs
    SIP VoIP interface via RJ-45
    FXO analogue telephone interface via RJ-11
    Gigabit Ethernet port
    RS-232 serial port and 4-pin GPIO
    2-line OLED display with capacitive-touch navigation
    Internal universal power supply
    Configured and controlled via Tesira software
    Rack mountable, 1U
    Covered by Biamp 5-year warranty
    Specifications
    Network audio 128 x 128 channels AVB
    Inputs 4 mic/line with AEC
    Outputs 4 mic/line
    Telephony SIP VoIP (RJ-45) + FXO (RJ-11)
    Control ports Gigabit Ethernet, RS-232, 4-pin GPIO
    Frequency response 20 Hz – 20 kHz, +0.25 / -0.5 dB
    THD+N (0 dB gain) < 0.006%
    EIN < -125 dBu
    Dynamic range > 108 dB
    Input impedance (balanced) 8 kohm
    Output impedance (balanced) 207 ohm
    Maximum input +24 dBu
    Input gain range 0-66 dB (6 dB steps)
    Phantom power +48 VDC (7 mA/input)
    Sampling rate 48 kHz
    Converters 24-bit
    Power supply 100-240 VAC 50/60 Hz, < 35W
    Rack height 1U
    Dimensions (W x H x D) 483 x 44 x 267 mm
    Weight 3.63 kg

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • 128 x 128 channels of AVB
    • 4 mic/line level inputs with AEC, 4 mic/line level outputs
    • Gigabit Ethernet port
    • RS-232 serial port
    • 4-pin GPIO
    • 2-line OLED display with capacitive-touch navigation
    • Rack mountable (1RU)
    • System configuration and control via Ethernet
    • Internal universal power supply
    • SIP VoIP interface via RJ-45 connector
    • Standard FXO telephone interface via RJ-11 connector
    • Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalisation, filtering, and delay
    • CE marked, UL listed, and RoHS compliant
    • Covered by Biamp Systems’ five-year warranty
