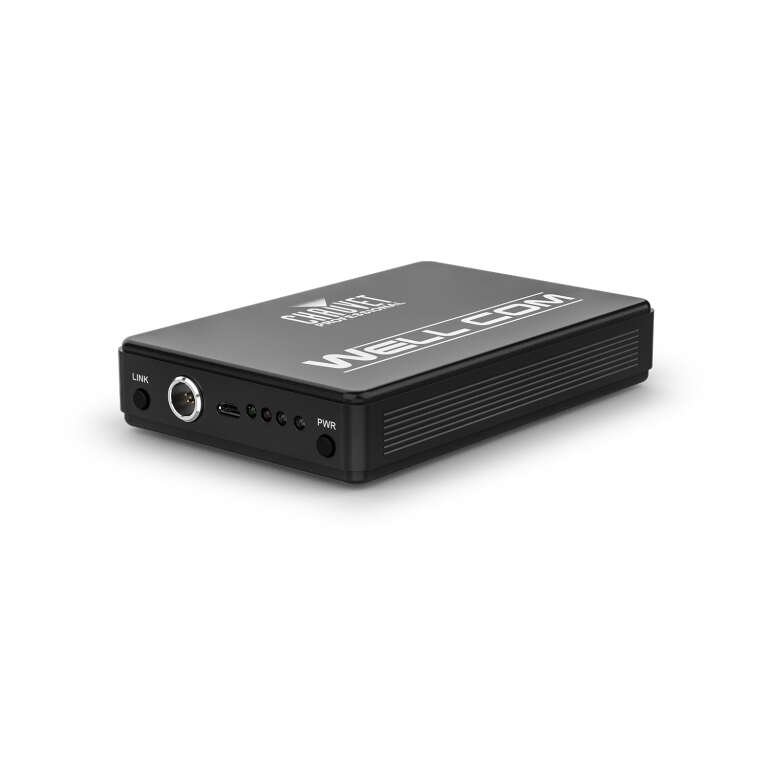

The WELL Com is a W-DMX wireless transmitter designed to provide cable-free DMX control to WELL Fit fixtures and all Maverick moving heads. It takes a wired DMX signal via 3-pin or 5-pin XLR input and broadcasts it wirelessly, eliminating the need to run data cables to battery-powered or hard-to-reach fixtures. Auto-ranging 100-240V power input and a locking IEC connector make it straightforward to deploy on any UK or international power supply.
Protocol
W-DMX
Wireless DMX
Power Input
100 – 240V
Auto-ranging
DMX Input
3 + 5 Pin
XLR connectors
Compatible Fixtures
Works with W-DMX enabled fixtures including:
WELL Fit
WELL Panel
Maverick series
WELL Panel
Maverick series
Connections
Data and power connectors:
3-pin XLR DMX in
5-pin XLR DMX in
Locking IEC power
5-pin XLR DMX in
Locking IEC power
Features
✓
W-DMX wireless transmitter for cable-free DMX control
W-DMX wireless transmitter for cable-free DMX control
✓
Compatible with WELL Fit, WELL Panel, and all Maverick fixtures
Compatible with WELL Fit, WELL Panel, and all Maverick fixtures
✓
Both 3-pin and 5-pin XLR DMX input connectors
Both 3-pin and 5-pin XLR DMX input connectors
✓
Auto-ranging 100-240V power for worldwide deployment
Auto-ranging 100-240V power for worldwide deployment
✓
Locking IEC power connector prevents accidental disconnection
Locking IEC power connector prevents accidental disconnection
✓
Eliminates data cable runs to battery-powered and remote fixtures
Eliminates data cable runs to battery-powered and remote fixtures
Note
This is a transmitter only — it does not receive W-DMX signals. The compatible fixtures (WELL Fit, WELL Panel, Maverick series) have built-in W-DMX receivers.
Specifications
| Wireless Protocol | W-DMX (transmitter) |
| DMX Input | 3-pin and 5-pin XLR (input only) |
| Power Input | 100 – 240V AC, auto-ranging |
| Power Connector | Locking IEC |
| SKU | WELLCOM |
