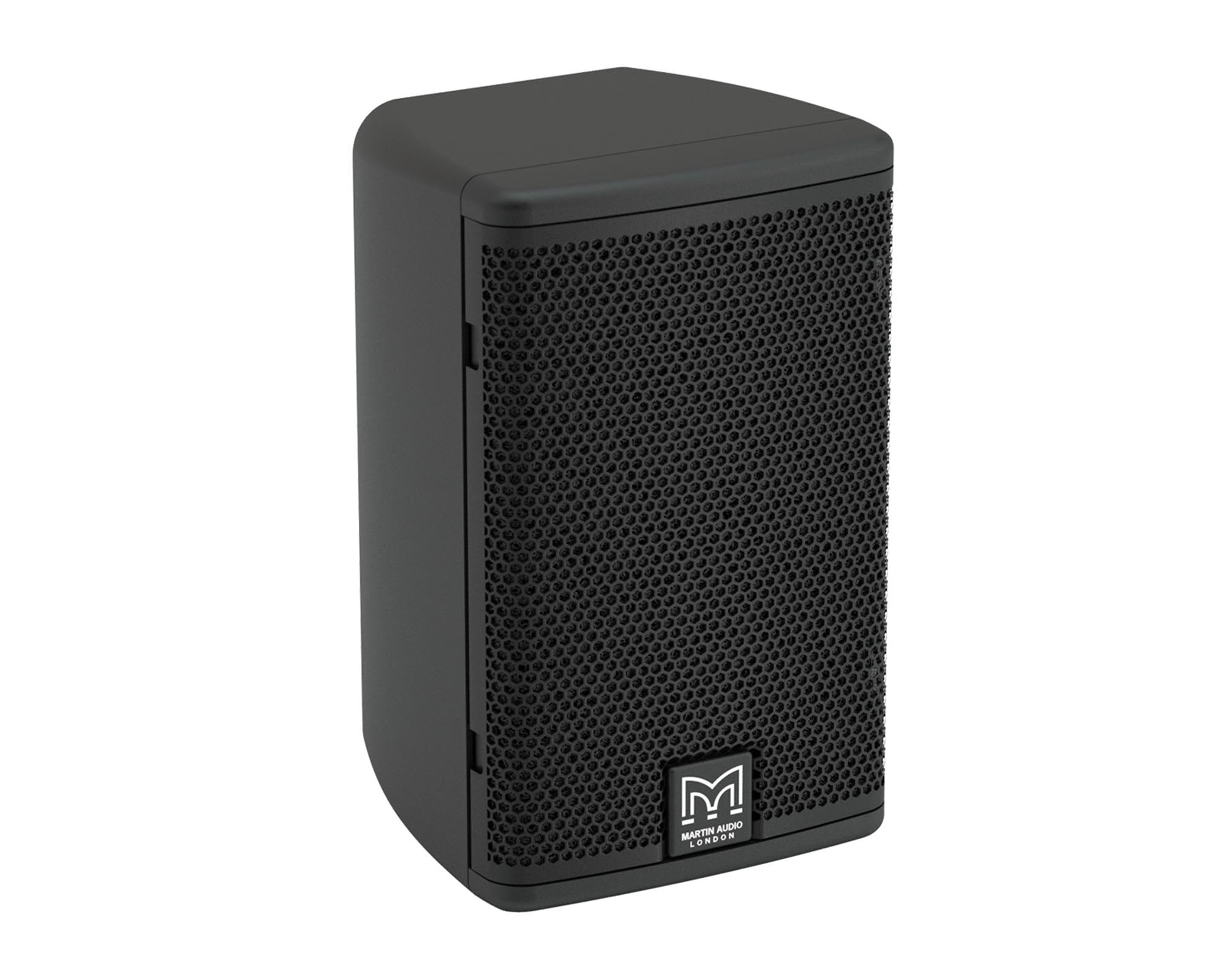

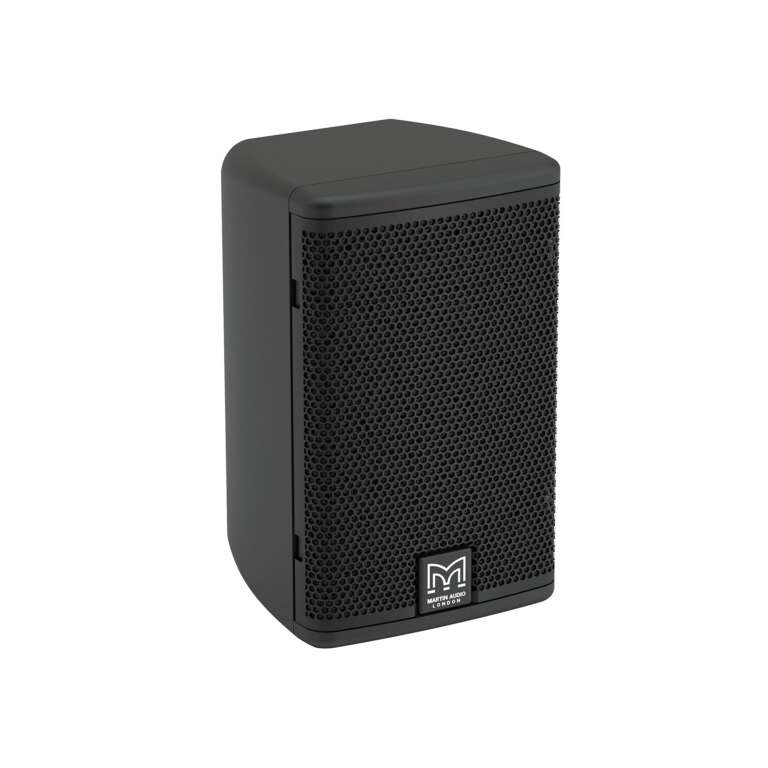

The Martin Audio ADORN A40 is a compact two-way passive loudspeaker designed for architectural installations where unobtrusive appearance and high-fidelity audio are equally important. Ideal for retail, hospitality, corporate and leisure environments, the A40 delivers Martin Audio’s signature sound quality from an ultra-compact enclosure.
LF Driver
4″ (100mm)
Power Handling
40W AES
160W peak
Peak SPL
109 dB
@ 1 metre
Dispersion
110° x 80°
Features
✓

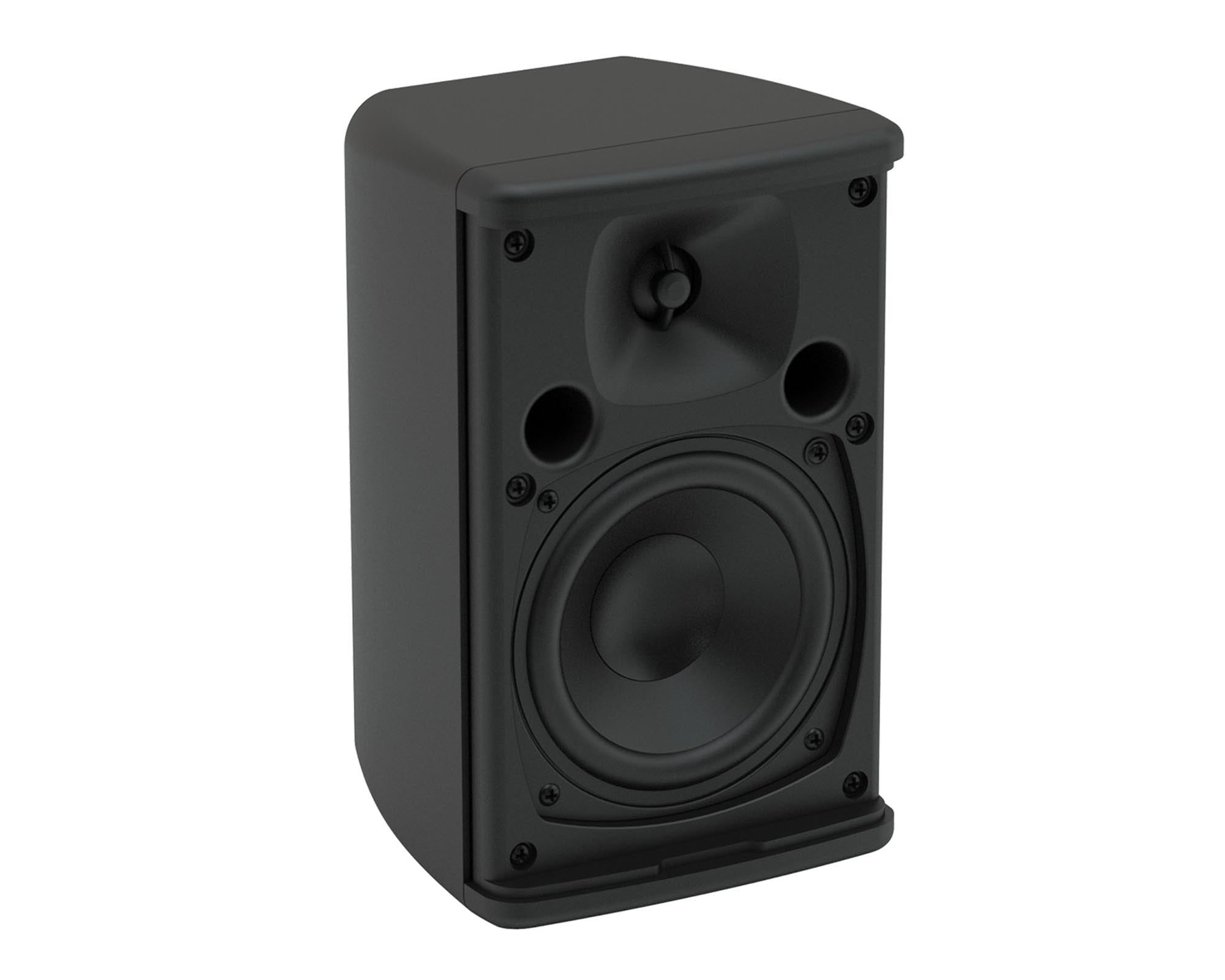

4″ LF driver with 0.75″ silk-dome HF on a constant-directivity horn
4″ LF driver with 0.75″ silk-dome HF on a constant-directivity horn
✓
Ultra-compact enclosure for discreet architectural installations
Ultra-compact enclosure for discreet architectural installations
✓
Strong bass reproduction extending down to 70 Hz
Strong bass reproduction extending down to 70 Hz
✓
Wide 110° x 80° dispersion for consistent coverage
Wide 110° x 80° dispersion for consistent coverage
✓
Includes multi-angle wall bracket for flexible positioning
Includes multi-angle wall bracket for flexible positioning
✓
Individual LF and HF overload protection
Individual LF and HF overload protection
✓
Smooth frequency response suited to both music and speech
Smooth frequency response suited to both music and speech
✓
Black finish — white version also available (A40-W)
Black finish — white version also available (A40-W)
Note
This is the low-impedance version without 100V line transformer. For 70V/100V distributed systems, see the A40T. An optional IP44 weatherising connector cover (AIPKIT) is available separately.
Specifications
| Type | Two-way passive |
| LF Driver | 4″ (100 mm) |
| HF Driver | 0.75″ (19 mm) silk dome |
| Power Handling (AES / Peak) | 40W / 160W |
| Peak SPL | 109 dB @ 1m |
| Dispersion (H x V) | 110° x 80° |
| Frequency Response | 70 Hz – 20 kHz |
| Finish | Black |
| SKU | A40 |
