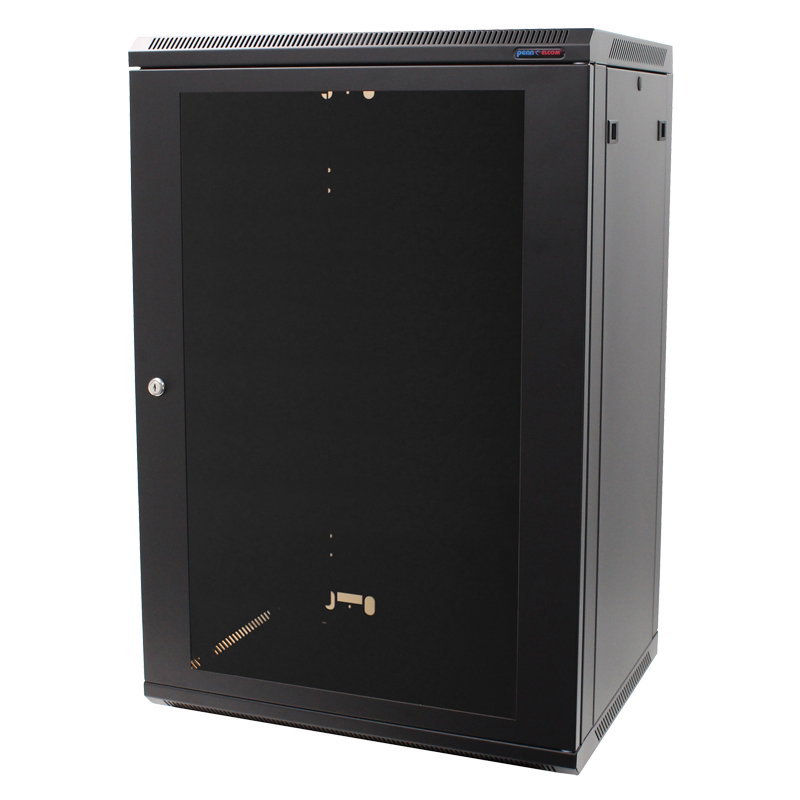

An 18U wall mounted rack enclosure built from 2mm steel with a quick release lockable polycarbonate door. At 450mm deep it takes most rack-mount amplifiers, DSPs, matrix switchers and network hardware, making it a practical choice for permanent AV installs in venues, meeting rooms, bars and school halls where floor space is at a premium.
RACK SPACE
18U
19″ standard
DEPTH
450mm
external
STEEL
2mm
14 gauge
WEIGHT
29.6kg
empty

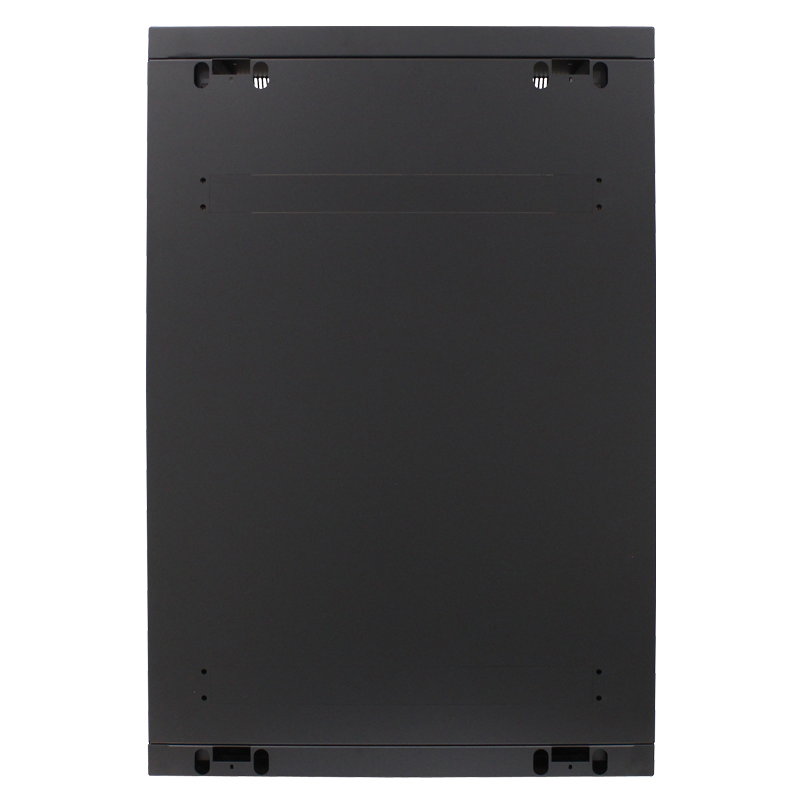

Wall fixing
The cabinet weighs 29.6kg empty, before any equipment goes in. Fix it into structural masonry or timber studwork with fixings rated for the fully loaded weight – plasterboard anchors alone are not adequate for a populated 18U enclosure.
Features
✓
18U of usable 19″ rack space
18U of usable 19″ rack space
✓

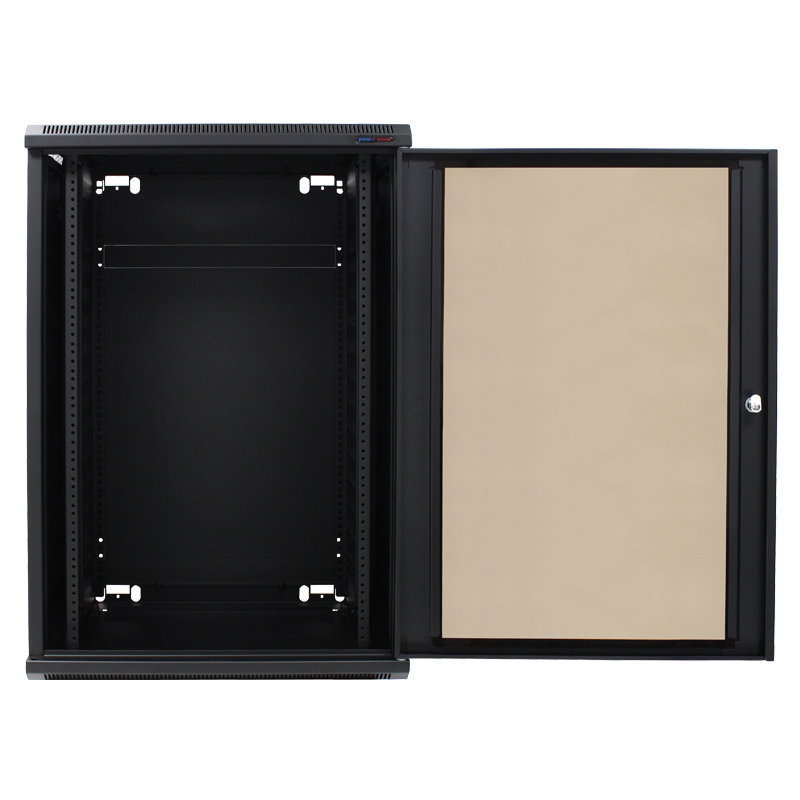

Quick release lockable polycarbonate door
Quick release lockable polycarbonate door
✓

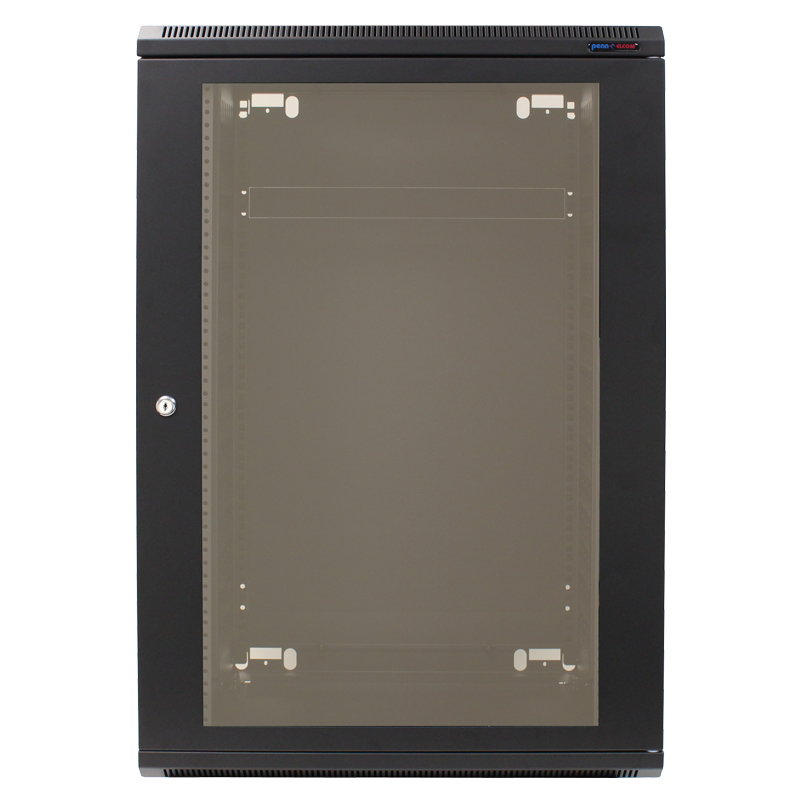

Clear door lets you read front-panel status without unlocking
Clear door lets you read front-panel status without unlocking
✓
2mm / 14 gauge steel construction
2mm / 14 gauge steel construction
✓
Ventilated top panel with cable knockouts
Ventilated top panel with cable knockouts
✓
Adjustable depth rack rail for shallow and deep equipment
Adjustable depth rack rail for shallow and deep equipment
✓
450mm external depth suits amplifiers and network switches
450mm external depth suits amplifiers and network switches
✓
Black powder coated finish
Black powder coated finish
✓
Door can be removed quickly for rack building and servicing
Door can be removed quickly for rack building and servicing
✓
Lock deters tampering in public and semi-public spaces
Lock deters tampering in public and semi-public spaces
Specifications
| Rack space | 18U |
| Mounting | Wall mount |
| Dimensions (H x W x D) | 905 x 600 x 450mm |
| Material | 2mm / 14 gauge steel |
| Door | Quick release lockable polycarbonate |
| Top panel | Ventilated with cable knockouts |
| Rack rail | Adjustable depth |
| Finish | Black |
| Weight | 29.6kg |
