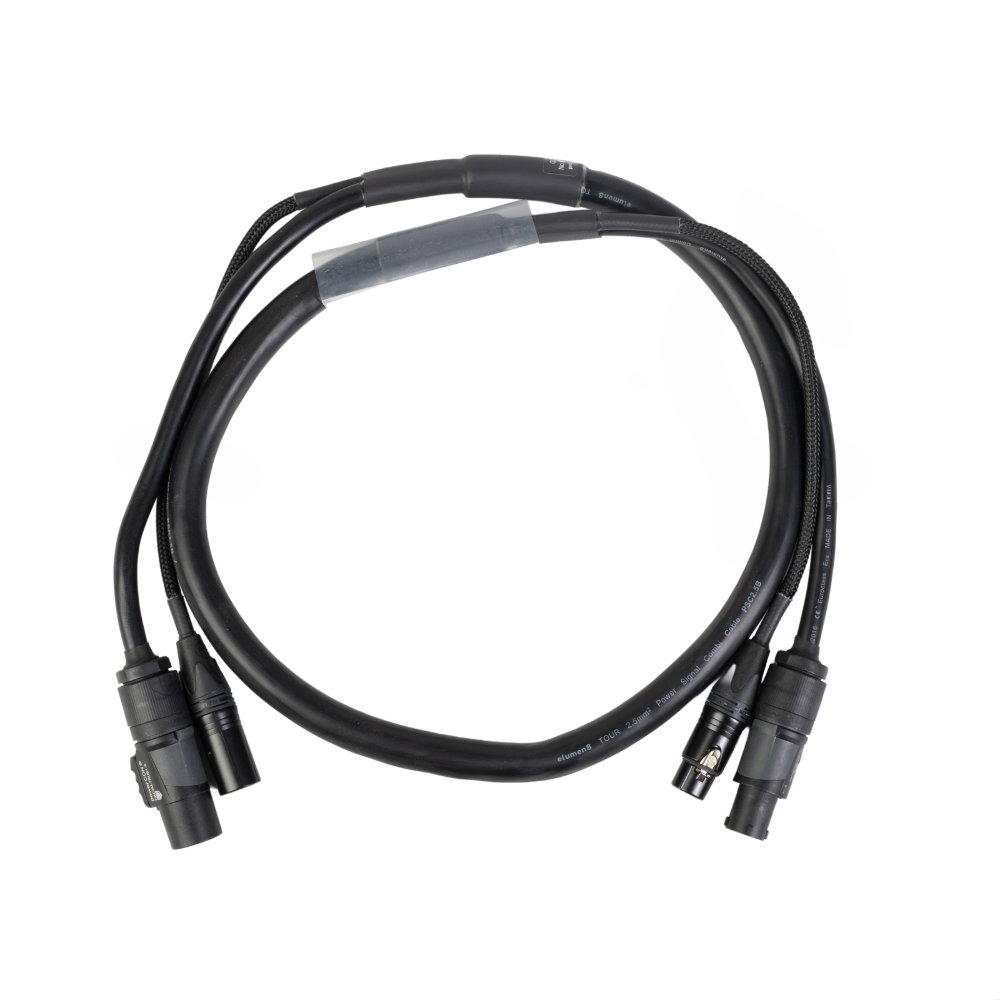

A 20m British-made hybrid cable carrying DMX signal and mains power in one outer jacket, terminated with Neutrik powerCON TRUE1-TOP and 5-Pin XLR at both ends. 20m is the long-haul length in a hybrid set – the one that gets you from the dimmer world or FoH position out to the far end of an overhead bay, or from a floor package back to a distro tucked offstage. The 2.5mm² power core keeps volt drop sensible over that distance.
Length
20m
Long run
Power core
2.5mm²
H05VV-F, 3 core
Signal
110Ω
5-Pin XLR, DMX512
Connectors
Neutrik
powerCON TRUE1-TOP
TRUE1-TOP connectors
Terminated with Neutrik powerCON TRUE1-TOP, the current outdoor-rated generation. TRUE1-TOP mates with TRUE1-TOP; it is not intended to be mixed with the original TRUE1 or the older blue/white powerCON. Check what is fitted to your fixtures before ordering a hybrid run.

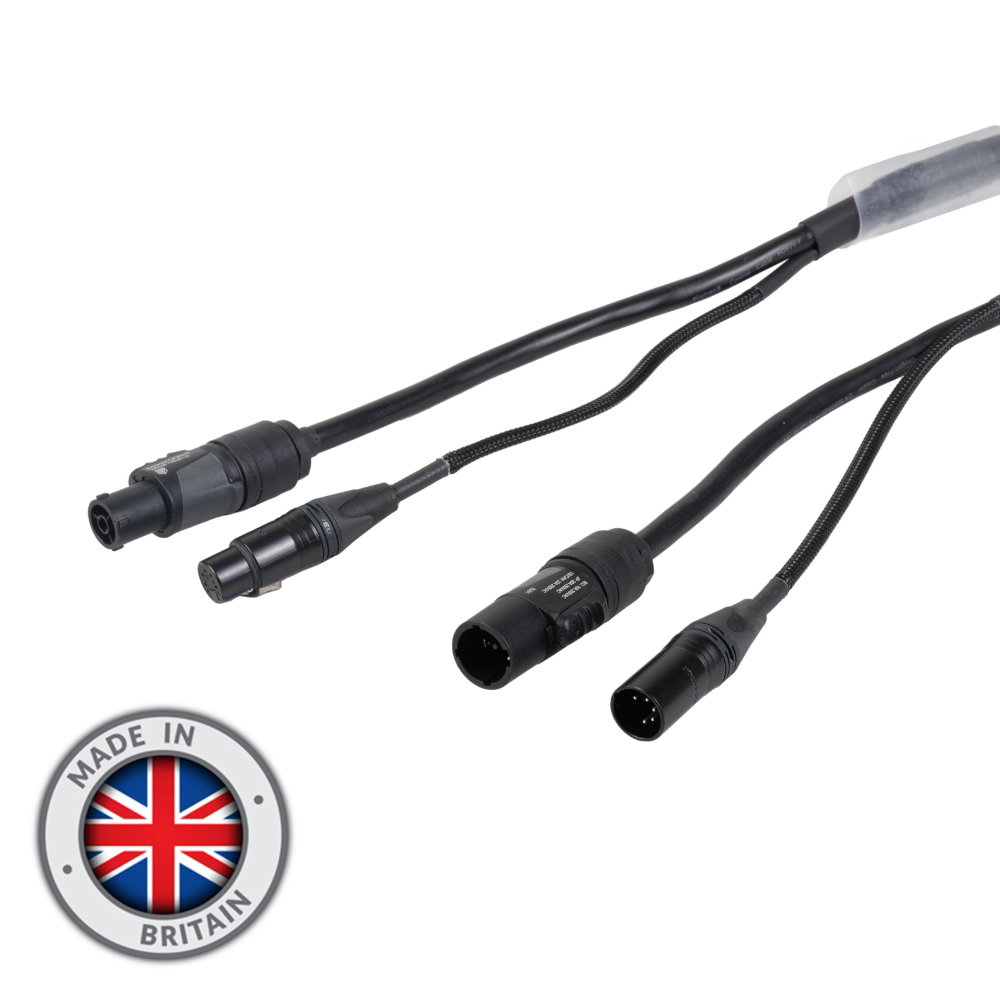

Input end
Male connectors, toward the source
5-Pin XLR male
powerCON TRUE1-TOP male
powerCON TRUE1-TOP male
Output end
Female connectors, toward the fixture
5-Pin XLR female
powerCON TRUE1-TOP female
powerCON TRUE1-TOP female
Features
✓
20m length reaches from distro to the far end of a bay
20m length reaches from distro to the far end of a bay
✓
2.5mm² core keeps volt drop in check on longer runs
2.5mm² core keeps volt drop in check on longer runs
✓
Made in Britain with Neutrik connectors throughout
Made in Britain with Neutrik connectors throughout
✓
H05VV-F harmonised standard 2.5mm² 3 core power
H05VV-F harmonised standard 2.5mm² 3 core power
✓
Nylon braided signal tail with adhesive lined heatshrink
Nylon braided signal tail with adhesive lined heatshrink
✓
Oxygen-free copper cores for signal integrity
Oxygen-free copper cores for signal integrity
✓
Suits 110Ω balanced data: DMX512, RS422, RS485, timecode
Suits 110Ω balanced data: DMX512, RS422, RS485, timecode
✓
Also carries analogue or AES digital audio alongside power
Also carries analogue or AES digital audio alongside power
✓
Selected fillers hold the jacket round so it coils cleanly
Selected fillers hold the jacket round so it coils cleanly
✓
Clear heatshrink for identification or asset labelling
Clear heatshrink for identification or asset labelling
Specifications
| Stock code | CABL2067 |
| Length | 20m |
| Configuration | 5-Pin XLR male + powerCON TRUE1-TOP male to 5-Pin XLR female + powerCON TRUE1-TOP female |
| Power core | H05VV-F 2.5mm², 3 core |
| Signal impedance | 110Ω balanced |
| Conductors | Oxygen-free copper |
| Connectors | Neutrik |
| Barcode / EAN | 5056742203648 |
| Manufactured | Made in Britain |
