Elumen8 10m Combi Cable 2.5mm² Neutrik powerCON TRUE1 TOP and 5-Pin DMX (CABL2065)

SKU: CABL2065
Elumen8 10m Combi Cable 2.5mm² Neutrik powerCON TRUE1 TOP and 5-Pin DMX (CABL2065)
Elumen8 10m Combi Cable 2.5mm² Neutrik powerCON TRUE1 TOP and 5-Pin DMX (CABL2065)
Click to enlarge

    £107.00 inc VAT
    £89.17 ex VAT

    10 available online
    Delivered by TuesdayOrder by 3pm
    Click & Collect Monday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

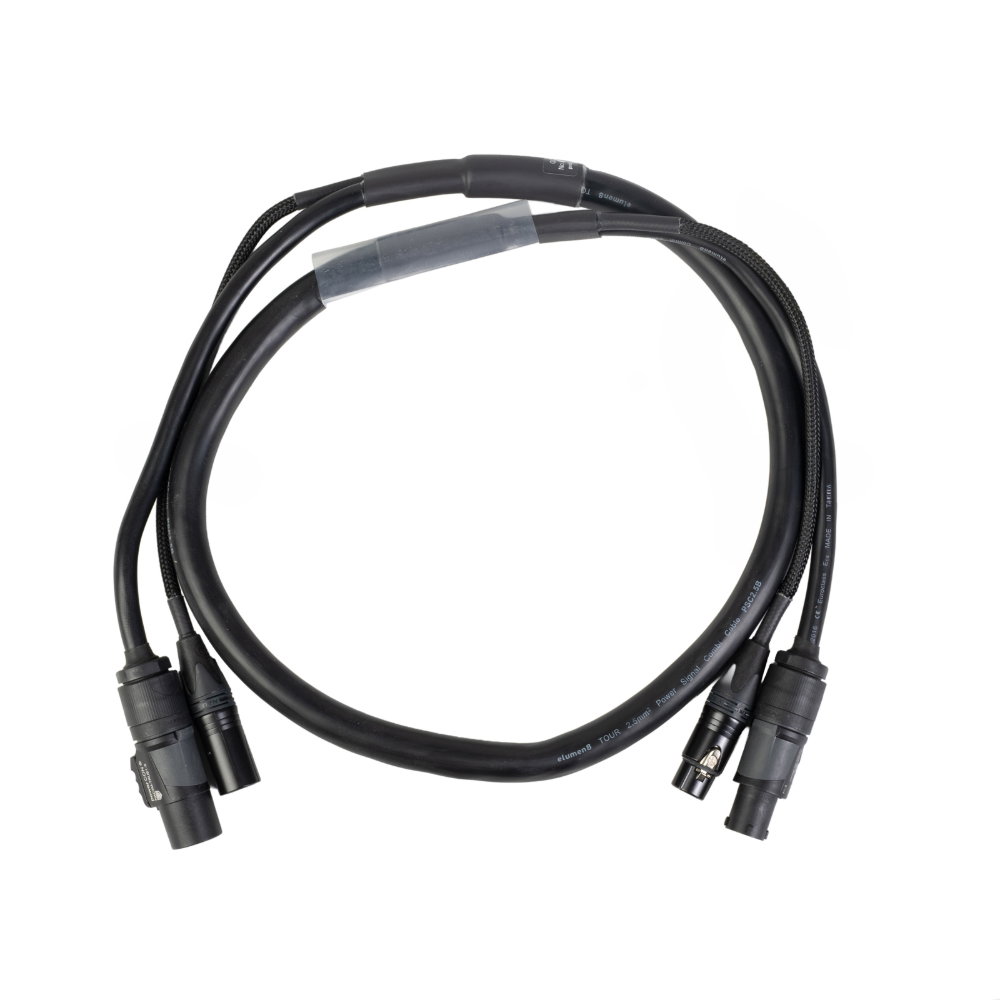

    A 10m British-made hybrid cable carrying DMX signal and mains power in one outer jacket, terminated with Neutrik powerCON TRUE1-TOP and 5-Pin XLR at both ends. 10m is the standard fixture-to-fixture and truss-drop length – long enough to reach across a bay or down to a floor package without leaving a loop of slack to dress out. One cable instead of two halves your rigging time and keeps the run clean.

    10m
    Length · Fixture to fixture
    2.5mm²
    Power core · H05VV-F, 3 core
    110Ω
    Signal · 5-Pin XLR, DMX512
    Neutrik
    Connectors · powerCON TRUE1-TOP

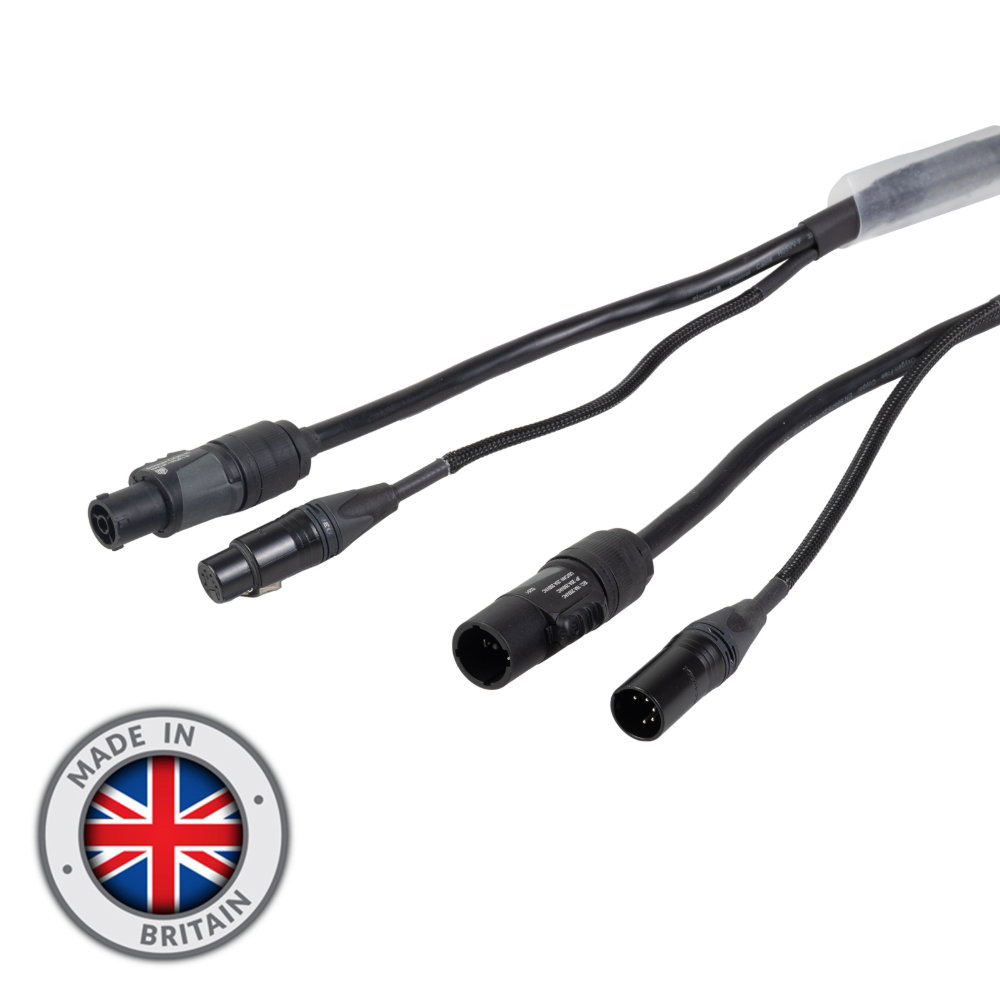

    TRUE1-TOP connectorsTerminated with Neutrik powerCON TRUE1-TOP, the current outdoor-rated generation. TRUE1-TOP mates with TRUE1-TOP; it is not intended to be mixed with the original TRUE1 or the older blue/white powerCON. Check what is fitted to your fixtures before ordering a hybrid run.
    Input end

    Male connectors, toward the source

    5-Pin XLR male
    powerCON TRUE1-TOP male
    Output end

    Female connectors, toward the fixture

    5-Pin XLR female
    powerCON TRUE1-TOP female
    Features
    10m length suits truss drops and fixture-to-fixture links
    Made in Britain with Neutrik connectors throughout
    H05VV-F harmonised standard 2.5mm² 3 core power
    Nylon braided signal tail with adhesive lined heatshrink
    Oxygen-free copper cores for signal integrity
    Suits 110Ω balanced data: DMX512, RS422, RS485, timecode
    Also carries analogue or AES digital audio alongside power
    Selected fillers hold the jacket round so it coils cleanly
    Clear heatshrink for identification or asset labelling
    Ultra-flexible construction built for touring use
    Specifications
    Stock code CABL2065
    Length 10m
    Configuration 5-Pin XLR male + powerCON TRUE1-TOP male to 5-Pin XLR female + powerCON TRUE1-TOP female
    Power core H05VV-F 2.5mm², 3 core
    Signal impedance 110Ω balanced
    Conductors Oxygen-free copper
    Connectors Neutrik
    Barcode / EAN 5056742203624
    Manufactured Made in Britain

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • Made in Britain
    • Neutrik connectors
    • 5-Pin XLR male plus powerCON TRUE1-TOP male to 5-Pin XLR female plus powerCON TRUE1-TOP female
    • Nylon braided signal cable secured by adhesive lined heatshrink
    • Analogue or AES digital audio, RS422/485 or DMX512 control with a 3 core power cable
    • H05VV-F harmonised standard 2.5mm² power core
    • Clear heatshrink suitable for identification or asset label
    • Suitable for most 110Ω balanced data applications such as RS422, RS485, DMX512, and timecode
    • Oxygen-free copper cores for maximum signal integrity
    • Length: 10m
