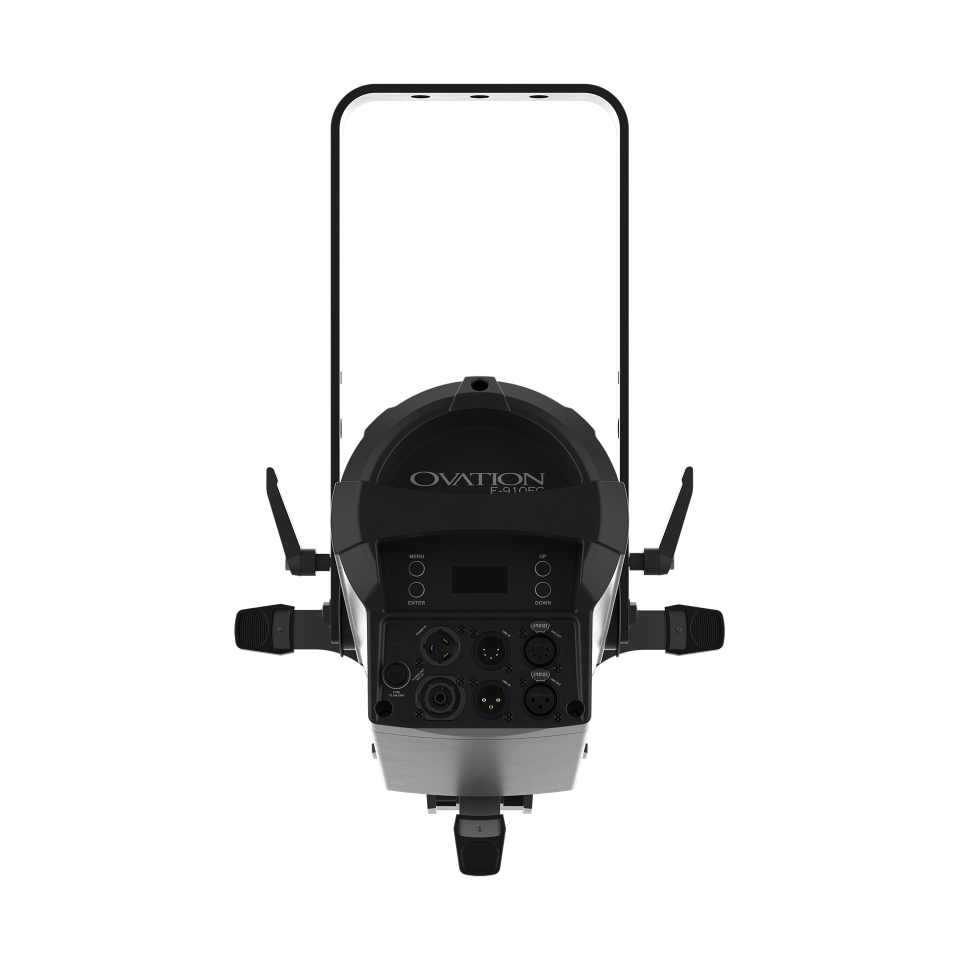

Chauvet Professional Ovation E-910FC-2 Full-Colour LED Ellipsoidal Black

• LIGHT-ENGINE AND BARREL ONLY (LENS TUBE SOLD SEPARATELY)
• New Model: Now with powerCON® TRUE1
• Full Colour LED (RGBAL) ERS-style lighting fixture for theatre, film and production
• Ultra smooth 16-bit dimming of master dimmer and individual colours
• Flat, even field of light with superior colour mixing
• Virtual Colour wheel with colour matched to popular gel colours
• Colour Temperature Presets from 2800 K to 6500 K with high CRI & CQS
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications
• Works perfectly with industry standard lens tubes and accessories

Optical

• Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (722 mA), 6031 K, 50,000 hours life expectancy (L70)
• Colour Temperature (range): 2800 to 6500 K
• Colour Temperature (at full): 6031 K
• CRI (3200 K): 86
• Beam Angle (w/5° lens): 7°
• Beam Angle (w/10° lens): 10°
• Beam Angle (w/14° lens): 11°
• Beam Angle (w/19° lens): 19°
• Beam Angle (w/26° lens): 24°
• Beam Angle (w/36° lens): 28°
• Beam Angle (w/50° lens): 41°
• Beam Angle (w/15°–30° lens)(Narrow): 13°
• Beam Angle (w/15°–30° lens)(Wide): 24°
• Beam Angle (w/25°–50° lens)(Narrow): 23°
• Beam Angle (w/25°–50° lens)(Wide): 36°
• Field Angle (w/5° lens): 7°
• Field Angle (w/10° lens): 10°
• Field Angle (w/14° lens): 14°
• Field Angle (w/19° lens):19°
• Field Angle (w/26° lens): 26°
• Field Angle (w/36° lens): 34°
• Field Angle (w/50° lens): 51°
• Field Angle (w/15°–30° lens)(Narrow): 15°
• Field Angle (w/15°–30° lens)(Wide): 29°
• Field Angle (w/25°–50° lens)(Narrow): 26°
• Field Angle (w/25°–50° lens)(Wide): 50°
• Lumens (w/5° lens): 1,807
• Lumens (w/10° lens): 3,961
• Lumens (w/14° lens): 2,827
• Lumens (w/19° lens): 3,236
• Lumens (w/26° lens): 4,316
• Lumens (w/36° lens): 3,918
• Lumens (w/50° lens): 3,813
• Lumens (w/15°–30° lens)(Narrow): 4,028
• Lumens (w/15°–30° lens)(Wide): 1,553
• Lumens (w/25°–50° lens)(Narrow): 5,261
• Lumens (w/25°–50° lens)(Wide): 7,263
• Illuminance (w/5° lens): 16,300 lux @ 5 m
• Illuminance (w/10° lens): 7,430 lux @ 5 m
• Illuminance (w/14° lens): 4,420 lux @ 5 m
• Illuminance (w/19° lens): 2,530 lux @ 5 m
• Illuminance (w/26° lens): 1,720 lux @ 5 m
• Illuminance (w/36° lens): 1,020 lux @ 5 m
• Illuminance (w/50° lens): 457 lux @ 5 m
• Illuminance (w/15°–30° lens)(Narrow): 4,260 lux @ 5 m
• Illuminance (w/15°–30° lens)(Wide): 1,620 lux @ 5 m
• Illuminance (w/25°–50° lens)(Narrow): 1,790 lux @ 5 m
• Illuminance (w/25°–50° lens)(Wide): 825 lux @ 5 m
• Barrel Rotation: +/- 27°
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Manual
• Strobe Rate: 0 to 28 Hz
• Standalone Colour Mixing: Yes
• Colour Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

Connections

• Power Connection: Edison (local) plug to powerCON® TRUE1
• Power Input: powerCON® TRUE1
• Power Output: powerCON® TRUE1
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

Control

• Protocol(s): DMX, RDM
• DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16 or HSV
• Modes/Personalities: 8 personalities (1, 3, 5, 7, 10, 12, 13, 16 or HSV)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 5 units @ 100 V; 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V; 13 units @ 240 V
• Power and Current: 220 W, 2.17 A @ 100 V, 60 Hz
• Power and Current: 215 W, 1.79 A @ 120 V, 60 Hz
• Power and Current: 214 W, 1.03 A @ 208 V, 60 Hz
• Power and Current: 216 W, .94 A @ 230 V, 50 Hz
• Power and Current: 217 W, .91 A @ 240 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Noise Level (Idle): 1.0 dB(A) @ 1 m
• Noise Level (Auto): 16.8 dB(A) @ 1 m
• Noise Level (On): 29.6 dB(A) @ 1 m
• Noise Level (Off): 13.8 dB(A) @ 1 m
• Noise Level (silent): 25.6 dB(A) @ 1 m

Construction / Physical

• Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
• Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
• Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
• Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
• Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
• Weight (fixture only): 15.4 lb (7.1 kg)
• Weight (w/14° lens): 20.8 lb (9.43 kg)
• Weight (w/26° lens): 19.8 lb (9 kg)
• Weight (w/15°–30° lens): 29.4 lb (13.3 kg)
• Weight (w/25°–50° lens): 27 lb (12.2 kg)
• Exterior Colour: Black or White
• Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
• Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
• Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
• Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
• Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
• Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
• Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
• Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)
