Elumen8 15m Combi Cable 2.5mm² Neutrik powerCON TRUE1 TOP and 5-Pin DMX (CABL2066)

SKU: CABL2066
Elumen8 15m Combi Cable 2.5mm² Neutrik powerCON TRUE1 TOP and 5-Pin DMX (CABL2066)
Elumen8 15m Combi Cable 2.5mm² Neutrik powerCON TRUE1 TOP and 5-Pin DMX (CABL2066)
Click to enlarge

    £132.00 inc VAT
    £110.00 ex VAT

    10 in stock

    Order in 14h 32m 16s for delivery by Thursday
    Click & collect tomorrow ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

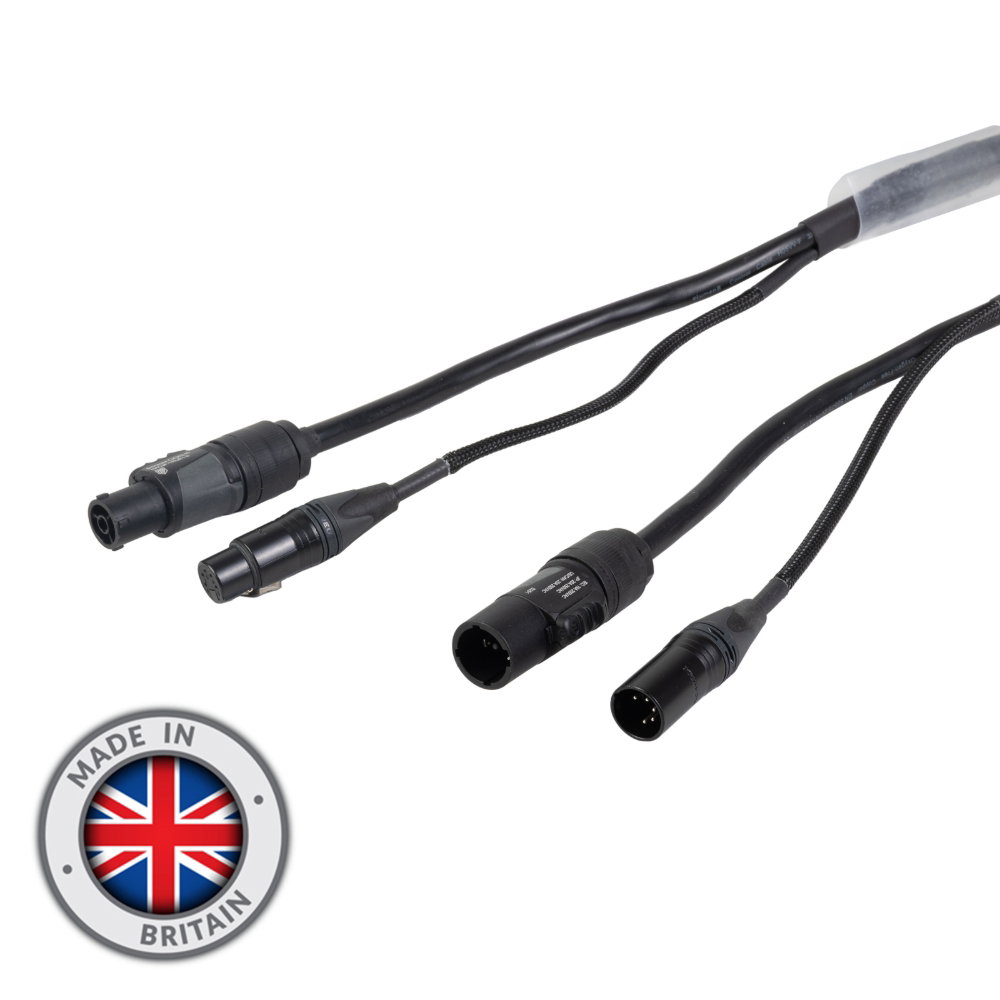

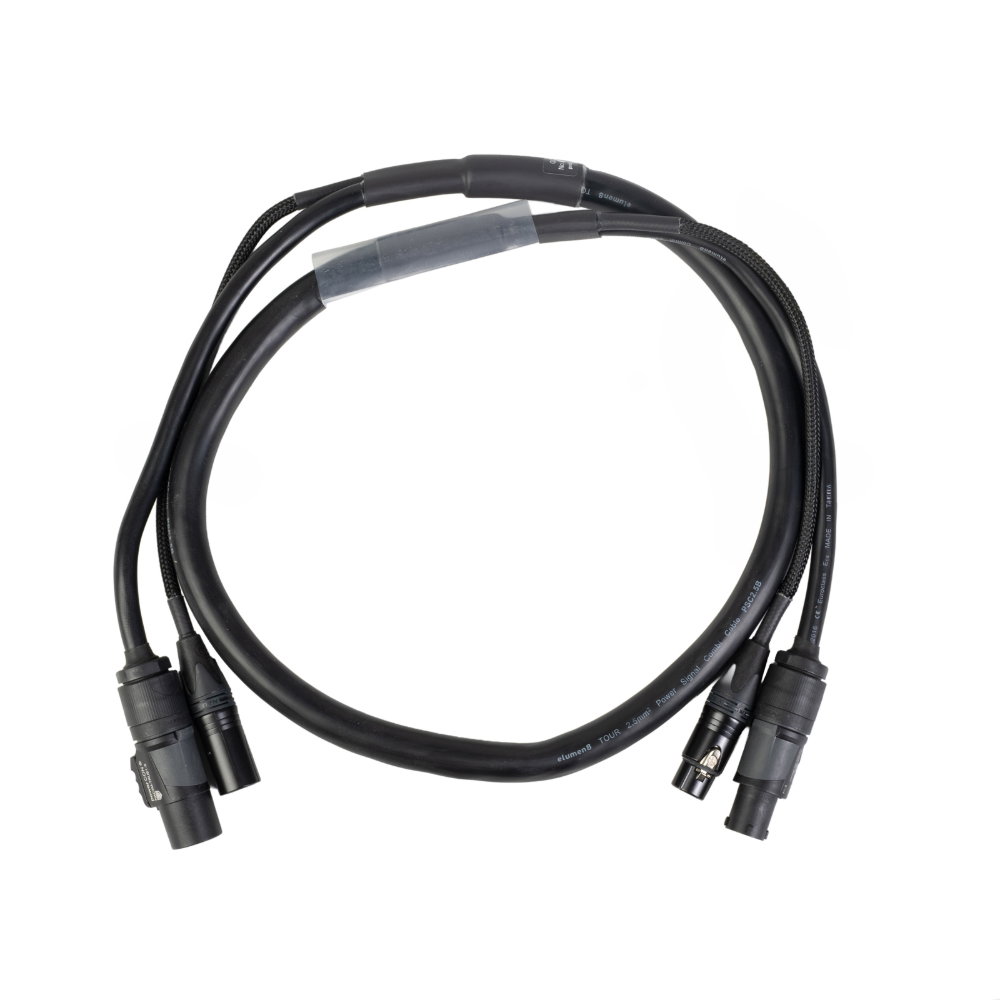

    A 15m British-made hybrid cable carrying DMX signal and mains power in one outer jacket, terminated with Neutrik powerCON TRUE1-TOP and 5-Pin XLR at both ends. 15m is the useful middle length in a hybrid stock – it covers the drop from an overhead bar down to deck level, or a mid-length link between fixture clusters, without the bulk of a 20m coil on every position.

    Length
    15m
    Bar to deck drop

    Power core
    2.5mm²
    H05VV-F, 3 core

    Signal
    110Ω
    5-Pin XLR, DMX512

    Connectors
    Neutrik
    powerCON TRUE1-TOP

    TRUE1-TOP connectors

    Terminated with Neutrik powerCON TRUE1-TOP, the current outdoor-rated generation. TRUE1-TOP mates with TRUE1-TOP; it is not intended to be mixed with the original TRUE1 or the older blue/white powerCON. Check what is fitted to your fixtures before ordering a hybrid run.

    Input end

    Male connectors, toward the source

    5-Pin XLR male
    powerCON TRUE1-TOP male

    Output end

    Female connectors, toward the fixture

    5-Pin XLR female
    powerCON TRUE1-TOP female

    Features
    ✓
    15m length covers overhead bar to deck without excess slack
    ✓
    Coils smaller than a 20m run for tighter cable trunks
    ✓
    Made in Britain with Neutrik connectors throughout
    ✓
    H05VV-F harmonised standard 2.5mm² 3 core power
    ✓
    Nylon braided signal tail with adhesive lined heatshrink
    ✓
    Oxygen-free copper cores for signal integrity
    ✓
    Suits 110Ω balanced data: DMX512, RS422, RS485, timecode
    ✓
    Also carries analogue or AES digital audio alongside power
    ✓
    Selected fillers hold the jacket round so it coils cleanly
    ✓
    Clear heatshrink for identification or asset labelling

    Specifications
    Stock code CABL2066
    Length 15m
    Configuration 5-Pin XLR male + powerCON TRUE1-TOP male to 5-Pin XLR female + powerCON TRUE1-TOP female
    Power core H05VV-F 2.5mm², 3 core
    Signal impedance 110Ω balanced
    Conductors Oxygen-free copper
    Connectors Neutrik
    Barcode / EAN 5056742203631
    Manufactured Made in Britain

    More Information

    • Made in Britain
    • Neutrik connectors
    • 5-Pin XLR male plus powerCON TRUE1-TOP male to 5-Pin XLR female plus powerCON TRUE1-TOP female
    • Nylon braided signal cable secured by adhesive lined heatshrink
    • Analogue or AES digital audio, RS422/485 or DMX512 control with a 3 core power cable
    • H05VV-F harmonised standard 2.5mm² power core
    • Clear heatshrink suitable for identification or asset label
    • Suitable for most 110Ω balanced data applications such as RS422, RS485, DMX512, and timecode
    • Oxygen-free copper cores for maximum signal integrity
    • Length: 15m
