Rated 4.9 (84 reviews)

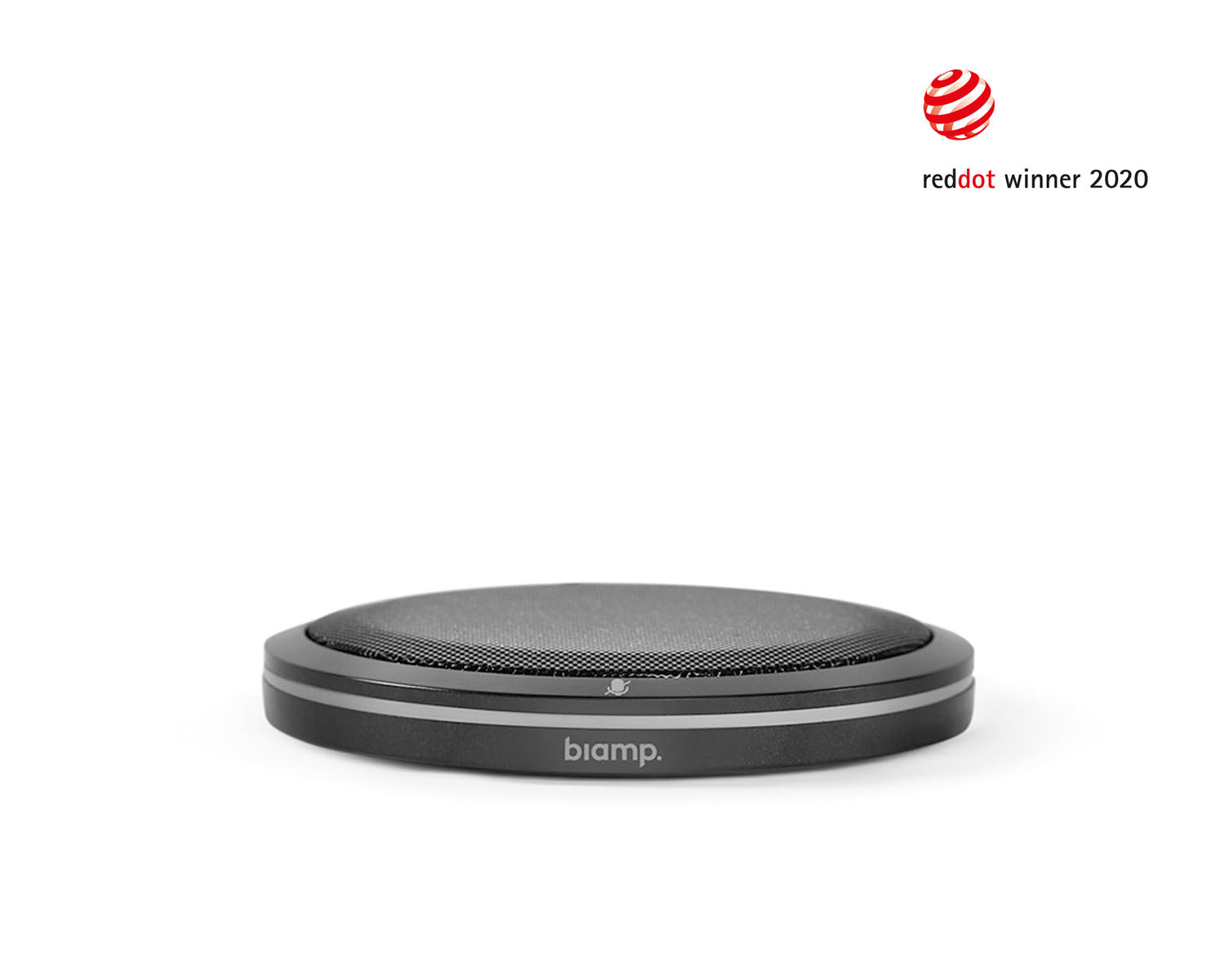

The Biamp Parle TTM-XEX is a low-profile tabletop expansion microphone for Tesira and Devio conferencing systems. Beamtracking technology with four 90-degree zones gives full 360-degree coverage of the meeting space, actively tracking and intelligently mixing conversations from around the table so far-end participants hear the room as if they were in it. At just 18 mm tall, it sits directly on the tabletop and all but disappears in the room.
360°
Room coverage
16
Array elements
109 dB
Maximum SPL
1
AEC channel per mic
System pairingIn Tesira systems the TTM-XEX is a second microphone used alongside a Parle TTM-X and cannot operate standalone. In Devio systems it functions as a standalone microphone. Maximum distance between the TTM-XEX and the DSP host device is 10 m.
Features
Beamtracking actively tracks and intelligently mixes conversations
Four 90-degree zones for full 360-degree room coverage
Works out of the box with no lobe aiming or room mapping
Uses only one channel of AEC per microphone
Single cable connection via CAT cable
Sits directly on the tabletop or can be mounted to it
LED mute status indicator
CE marked, UL listed and RoHS compliant
Covered by Biamp’s five-year warranty
Specifications
| Microphone technology | 16-element digital array |
| Frequency response (150 Hz to 16 kHz) | ±3 dB |
| Polar pattern | Beamformed |
| Sensitivity (94 dB SPL, 1 kHz) | >74 dB |
| Maximum SPL (at 0.5% THD) | 109 dB |
| Dynamic range (THD+N <10%) | 90 dB, A-weighted |
| Connector | RJ-45 (2 m cable supplied) |
| Maximum distance to DSP host | 10 m |
| Operating temperature | 0 to 40°C |
| Humidity | 0 to 95% relative humidity, non-condensing |
| Height | 18 mm |
| Diameter | 110 mm |
| Weight | 231 g |
| Finish | Black |
