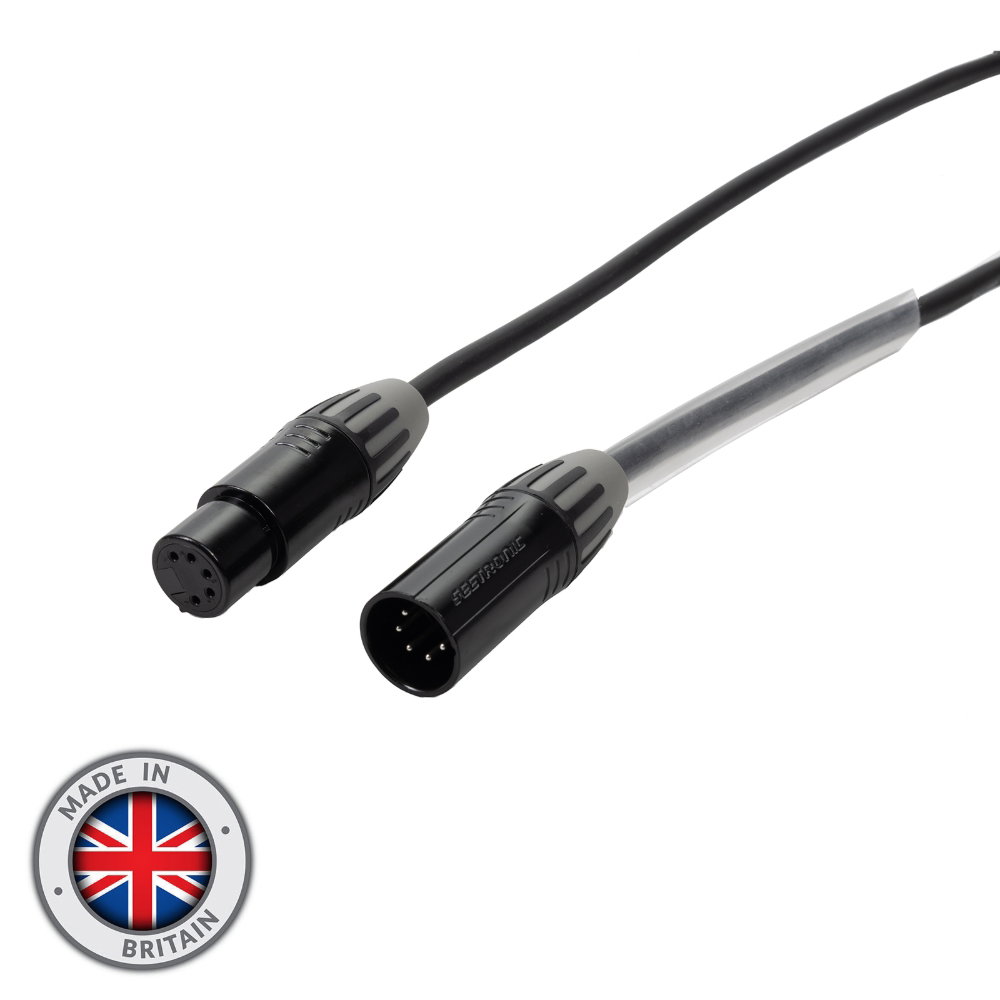

Elumen8 3m DMX Cable 5-Pin Seetronic Male XLR to 5-Pin Female XLR 110Ω (CABL2884)

SKU: CABL2884
Elumen8 3m DMX Cable 5-Pin Seetronic Male XLR to 5-Pin Female XLR 110Ω (CABL2884)
Click to enlarge

    £17.00 inc VAT
    £14.17 ex VAT

    60 in stock

    Order in 4h 38m 36s for delivery by Thursday
    Click & collect tomorrow ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    A 3m British-made 5-Pin DMX lead built on 110Ω data cable and terminated with black Seetronic SCMM5-B male and SCMM5-F female XLR connectors. 3m is the standard fixture-to-fixture link length for a bar of moving heads or LED pars sat next to each other on truss – short enough to stay tidy, long enough to reach the next unit.

    Length
    3m
    Fixture to fixture

    Impedance
    110Ω
    True DMX512 spec

    Connectors
    Seetronic
    SCMM5-B / SCMM5-F

    Screening
    Foil + braid
    Plus tinned drain wire

    Why 110Ω matters

    DMX512 is a data protocol, not audio. This lead uses proper 110Ω impedance cable with a foil and braid screen, which is what the standard calls for. Microphone cable pressed into DMX service is the usual cause of flickering fixtures and dropped universes on long chains.

    Features
    ✓
    3m length for linking adjacent fixtures on a truss bar
    ✓
    Made in Britain
    ✓
    Seetronic SCMM5-B male to SCMM5-F female, black finish
    ✓
    110Ω impedance cable to DMX512 specification
    ✓
    1 pair plus braided screen and tinned drain wire
    ✓
    Aluminium/polyester foil screen for RF rejection
    ✓
    Tinned copper cores
    ✓
    Super flexible PVC outer jacket, heat resistant
    ✓
    Clear heatshrink suitable for identification or asset label
    ✓
    Black connectors disappear against black truss and fixtures

    Specifications
    Stock code CABL2884
    Length 3m
    Connectors 5-Pin Seetronic SCMM5-B male to 5-Pin SCMM5-F female
    Connector finish Black
    Impedance 110Ω
    Conductors Tinned copper, 1 pair
    Screen Aluminium/polyester foil, braided screen, tinned drain wire
    Jacket Super flexible PVC, heat resistant
    Manufactured Made in Britain

    More Information

    • Made in Britain
    • Super flexible PVC outer jacket
    • 5-Pin Seetronic male SCMM5-B XLR to 5-Pin female SCMM5-F XLR
    • Black XLR connectors
    • Heat resistant
    • 110Ω impedance cable
    • Tinned copper cores
    • 1 pair plus braided screen and tinned drain wire
    • Aluminium/polyester foil screen
    • Clear heatshrink suitable for identification or asset label
    • Length: 3m
